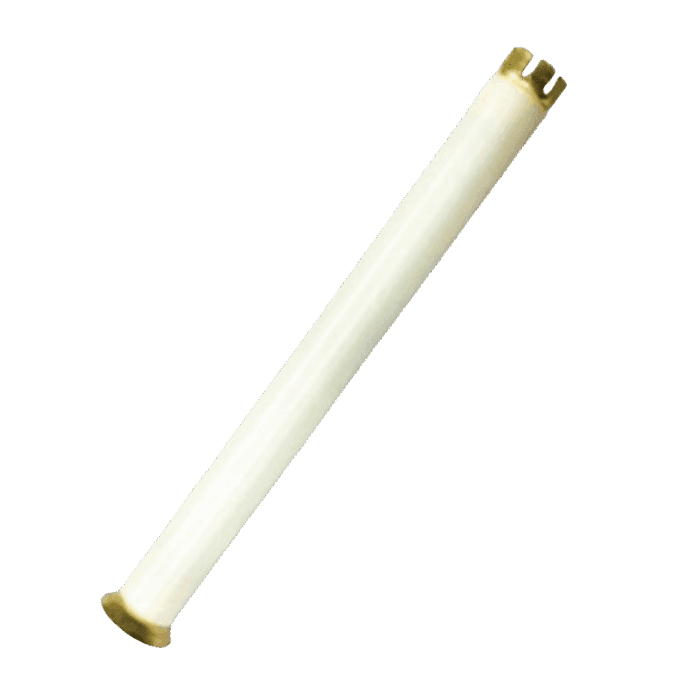

DEF 系列 - Image 1

DEF Series

Product Description

Dual Element Bay-O-Net fuse link protects both distribution apparatus from damaging currents and distribution systems from failed apparatus with Bay-O-Net fuse assemblies.

Technical Specification

Product type number：DEFN (N will determine by the current requirement and replace it with 006~050)

Rated voltage15.5kV, 23kV, 8.3kV
Rated Current12A, 140A, 15A, 25A, 50A, 5A, 6A, 8A
Product Type NumberDEF005, DEF006, DEF008, DEF012, DEF015, DEF025, DEF040, DEF050
Product CategoryDual Element Fuse Link
Categories: , ,
Technical Specification

Special Description:

  • Meets requirements of IEEE C37.41 & C37.42.
  • Protective range includes single-phase conventional and self-protected distribution transformers and other apparatus rated through 333kVA, and on three-phase equipment through 1000kVA.
  • Interrupted with sensing consistent fault current and high oil temperature.

Table 1 - Electrical Data

Voltage Rating8.3kV15.5kV23kV

Maximum Single-Phase Interrupting Rating Sidewall-Mounted Assembly in Mineral Oil

(rms symmetrical)

Fuse Rated Current5 - 50A3500A2500A1000A

Maximum Single-Phase Interrupting Rating Sidewall-Mounted Assembly in EnvirotempTM FR3 Fluid

(rms symmetrical)

Fuse Rated Current5 - 50A3500A2500A1000A

Table 2 - Product Number

Rated voltage

Rated Current

8.3, 15.5, 23kV
5ADEF005
6ADEF006
8ADEF008
12ADEF012
15ADEF015
25ADEF025
40ADEF040
50ADEF050

Note:



Image1. Triangular Clamp

Image2. Oil Resistant Gasket

Related products

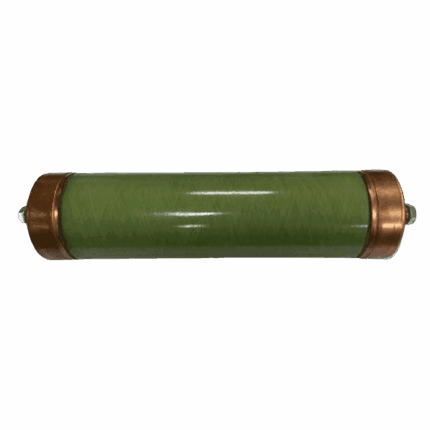

BCF Series

,
Rated voltage15.5kV, 17.2kV, 23kV, 38kV, 8.3kV
Rated Current100A, 120A, 125A, 140A, 150A, 165A, 175A, 180A, 200A, 225A, 250A, 30A, 40A, 50A, 65A, 80A
Product Type NumberBCF08-100, BCF08-125, BCF08-150, BCF08-165, BCF08-175, BCF08-180, BCF08-200, BCF08-250, BCF08-30, BCF08-40, BCF08-50, BCF08-65, BCF08-80, BCF15-100, BCF15-125, BCF15-150, BCF15-165, BCF15-180, BCF15-200, BCF15-225, BCF15-250, BCF15-30, BCF15-40, BCF15-50, BCF15-65, BCF15-80, BCF17-100, BCF17-125, BCF17-150, BCF17-30, BCF17-40, BCF17-50, BCF17-65, BCF17-80, BCF23-100, BCF23-125, BCF23-140, BCF23-150, BCF23-165, BCF23-175, BCF23-30, BCF23-40, BCF23-50, BCF23-65, BCF23-80, BCF38-100, BCF38-120, BCF38-125, BCF38-140, BCF38-150, BCF38-165, BCF38-175, BCF38-50, BCF38-65, BCF38-80
Product CategoryBackup Current Limiting fuse

BFH Series

, ,
Rated voltage23kV, 38kV
Product Type NumberBFH23, BFH38
Product CategoryHolder

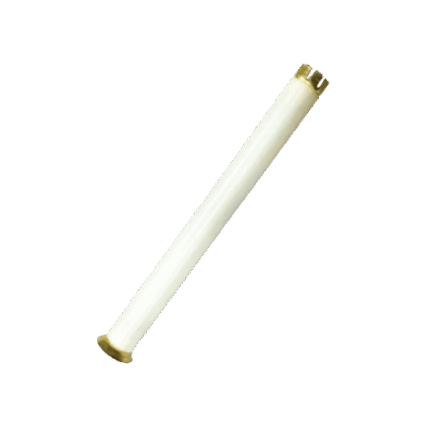

CSF Series

, ,
Rated voltage15.5kV, 23kV, 8.3kV
Rated Current100A, 10A, 140A, 15A, 25A, 40A, 65A, 6A
Product Type NumberCSF006, CSF010, CSF015, CSF025, CSF040, CSF065, CSF100, CSF140
Product CategoryCurrent Sensing Fuse Link

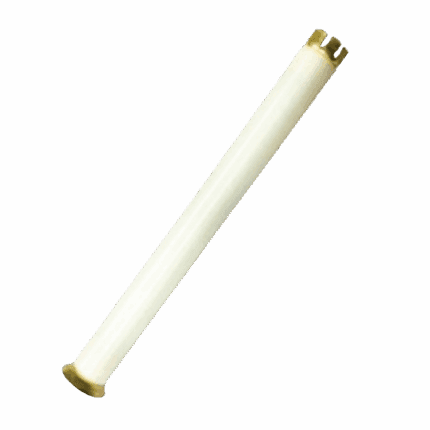

DSF Series

, ,
