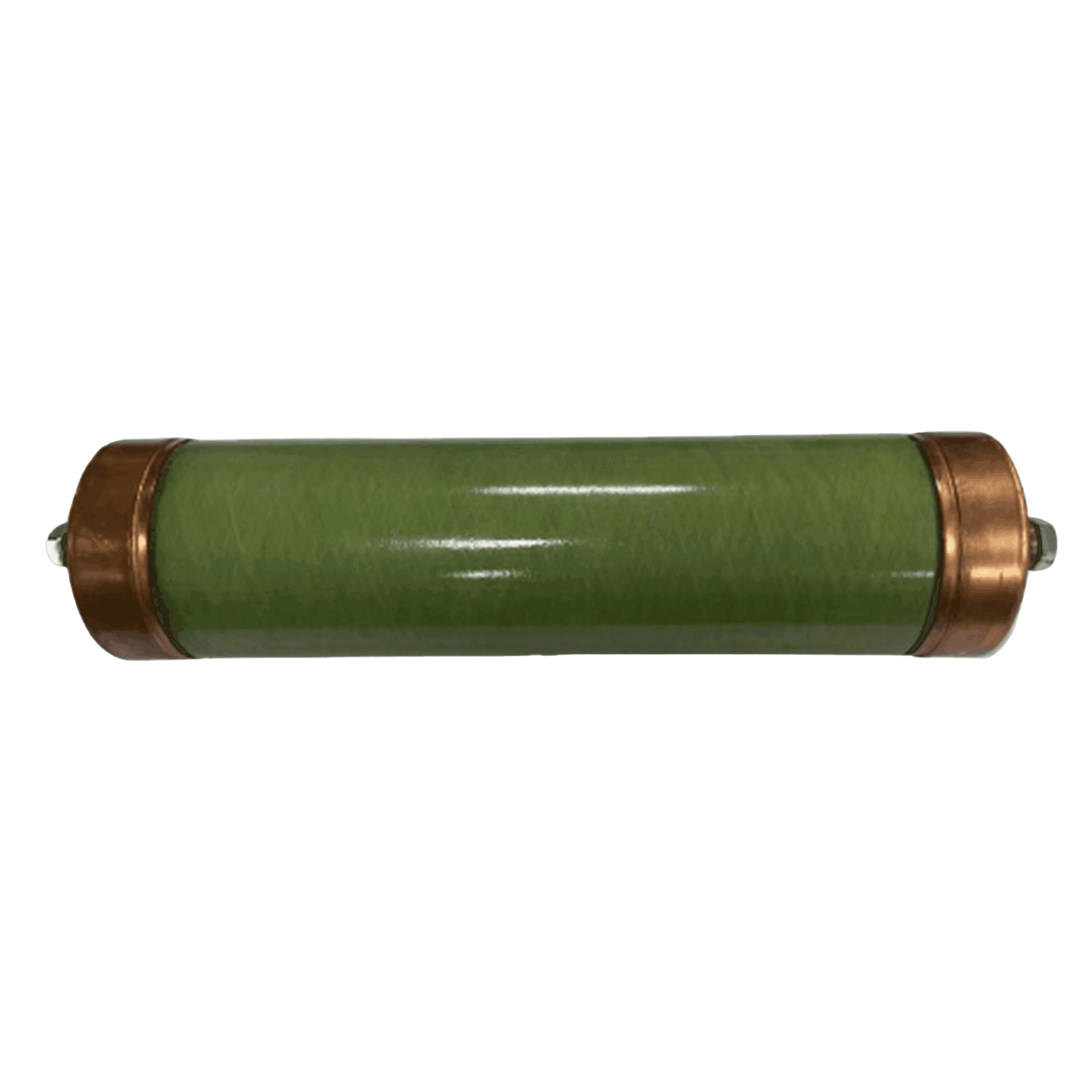

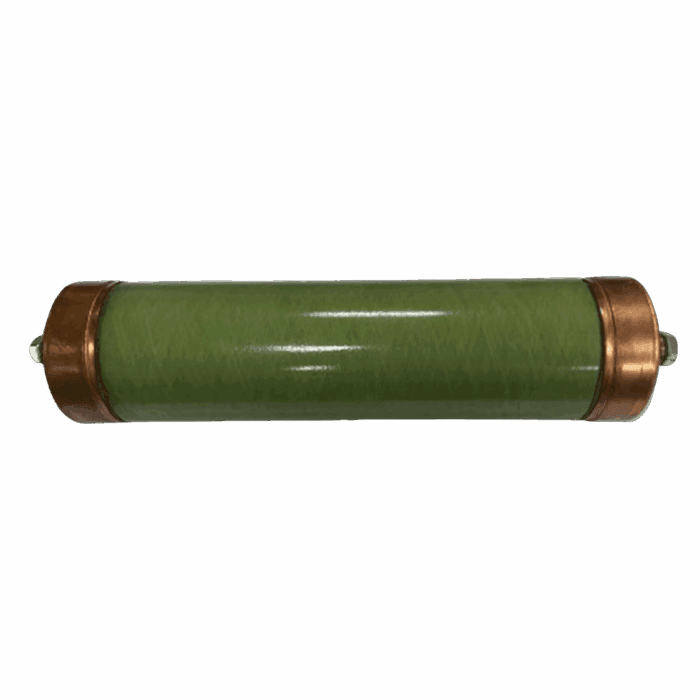

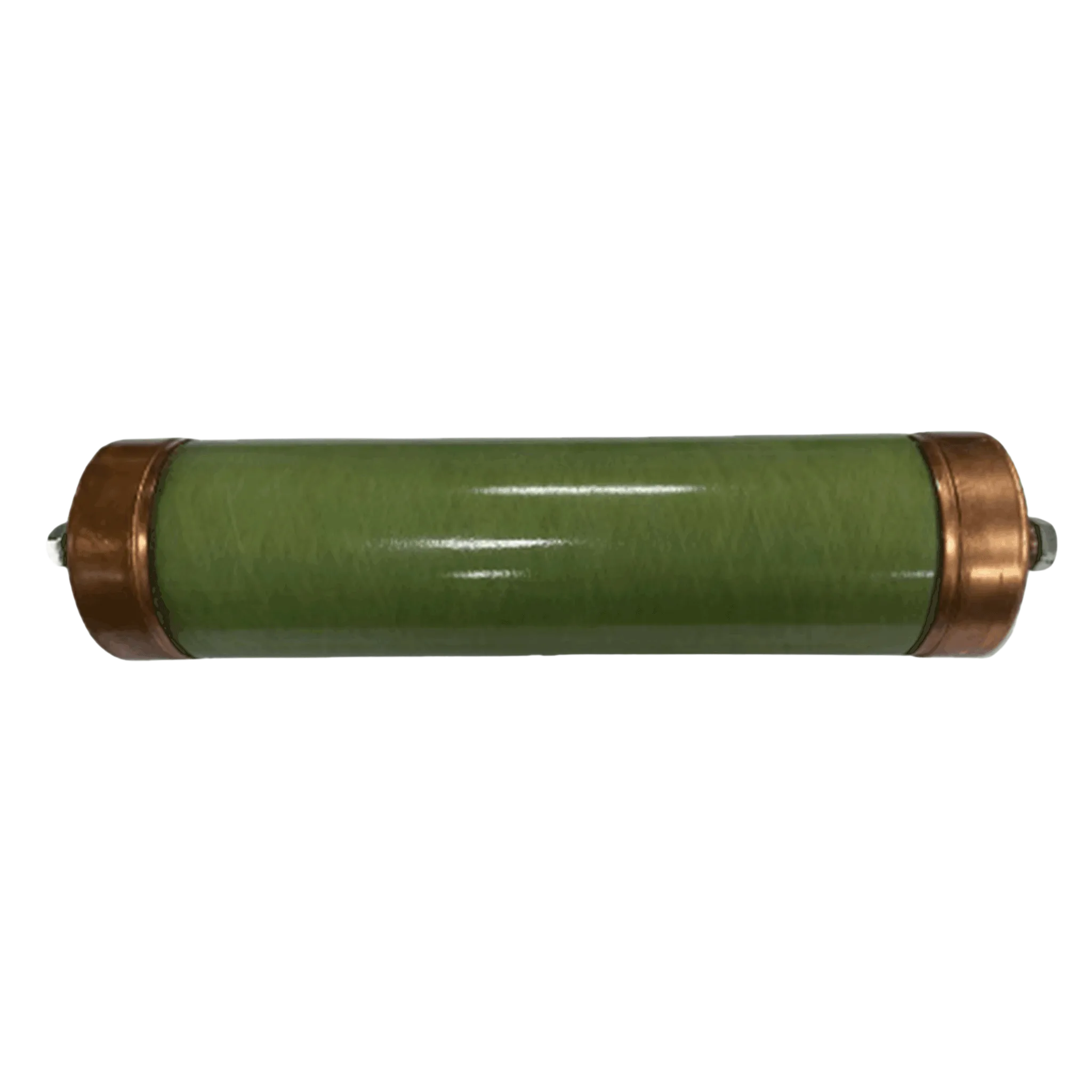

BCF Series
Product Description
Designed for use in transformer oil, Envirotemp™ FR3™ fluid, or an approved equivalent. Used in series with low current primary protection devices such as a Bay-O-Net fuse or interrupter.
Technical Specification
Product type number：BCF-N (N will determine by the current ampere requirement and replace it with 30~250)
| Rated voltage | 15.5kV, 17.2kV, 23kV, 38kV, 8.3kV |
|---|---|
| Rated Current | 100A, 120A, 125A, 140A, 150A, 165A, 175A, 180A, 200A, 225A, 250A, 30A, 40A, 50A, 65A, 80A |
| Product Type Number | BCF08-100, BCF08-125, BCF08-150, BCF08-165, BCF08-175, BCF08-180, BCF08-200, BCF08-250, BCF08-30, BCF08-40, BCF08-50, BCF08-65, BCF08-80, BCF15-100, BCF15-125, BCF15-150, BCF15-165, BCF15-180, BCF15-200, BCF15-225, BCF15-250, BCF15-30, BCF15-40, BCF15-50, BCF15-65, BCF15-80, BCF17-100, BCF17-125, BCF17-150, BCF17-30, BCF17-40, BCF17-50, BCF17-65, BCF17-80, BCF23-100, BCF23-125, BCF23-140, BCF23-150, BCF23-165, BCF23-175, BCF23-30, BCF23-40, BCF23-50, BCF23-65, BCF23-80, BCF38-100, BCF38-120, BCF38-125, BCF38-140, BCF38-150, BCF38-165, BCF38-175, BCF38-50, BCF38-65, BCF38-80 |
| Product Category | Backup Current Limiting fuse |
Special Description:
- Meets requirements of IEEE C37.41 & C37.42.
- Its minimum interrupting rating is coordinated with that of a low current interrupter or fuse device to avoid undesirable low current operation.
- Its maximum interrupting rating will clear the highest fault currents likely to occur.
- Higher continuous current ratings can be achieved by connecting two fuses in parallel.
Table 1 - Electrical Data
| Voltage Rating | 8.3kV | 15.5kV | 17.2kV | 23kV | 38kV |
Maximum Interrupting Current (rms symmetrical) | 50kA | 50kA | 43A | 31kA | 50kA |
Table 2 - Product Number
|
Rated voltage Rated Current |
8.3kV |
15.5kV |
17.2kV |
23kV |
38kV |
|
30A |
BCF08-30 |
BCF15-30 |
BCF17-30 |
BCF23-30 |
- |
|
40A |
BCF08-40 |
BCF15-40 |
BCF17-40 |
BCF23-40 |
- |
|
50A |
BCF08-50 |
BCF15-50 |
BCF17-50 |
BCF23-50 |
BCF38-50 |
|
65A |
BCF08-65 |
BCF15-65 |
BCF17-65 |
BCF23-65 |
BCF38-65 |
|
80A |
BCF08-80 |
BCF15-80 |
BCF17-80 |
BCF23-80 |
BCF38-80 |
|
100A |
BCF08-100 |
BCF15-100 |
BCF17-100 |
BCF23-100 |
BCF38-100 |
|
120A |
- |
- |
- |
- |
BCF38-120 |
|
125A |
BCF08-125 |
BCF15-125 |
BCF17-125 |
BCF23-125 |
BCF38-125 |
|
140A |
- |
- |
- |
BCF23-140 |
BCF38-140 |
|
150A |
BCF08-150 |
BCF15-150 |
BCF17-150 |
BCF23-150 |
BCF38-150 |
|
165A |
BCF08-165 |
BCF15-165 |
- |
BCF23-165 |
BCF38-165 |
|
175A |
BCF08-175 |
- |
- |
BCF23-175 |
BCF38-175 |
|
180A |
BCF08-180 |
BCF15-180 |
- |
- |
- |
|
200A |
BCF08-200 |
BCF15-200 |
- |
- |
- |
|
225A |
- |
BCF15-225 |
- |
- |
- |
|
250A |
BCF08-250 |
BCF15-250 |
- |
- |
- |
Note:
Related products

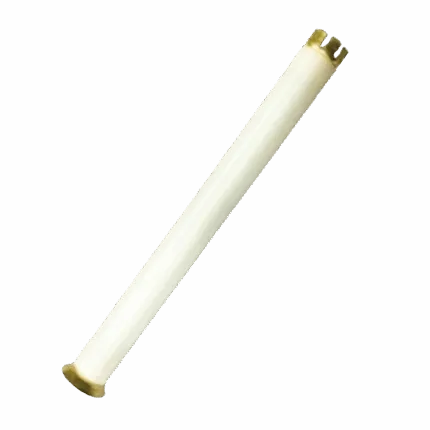

DSF Series
