BFH Series
Product Description

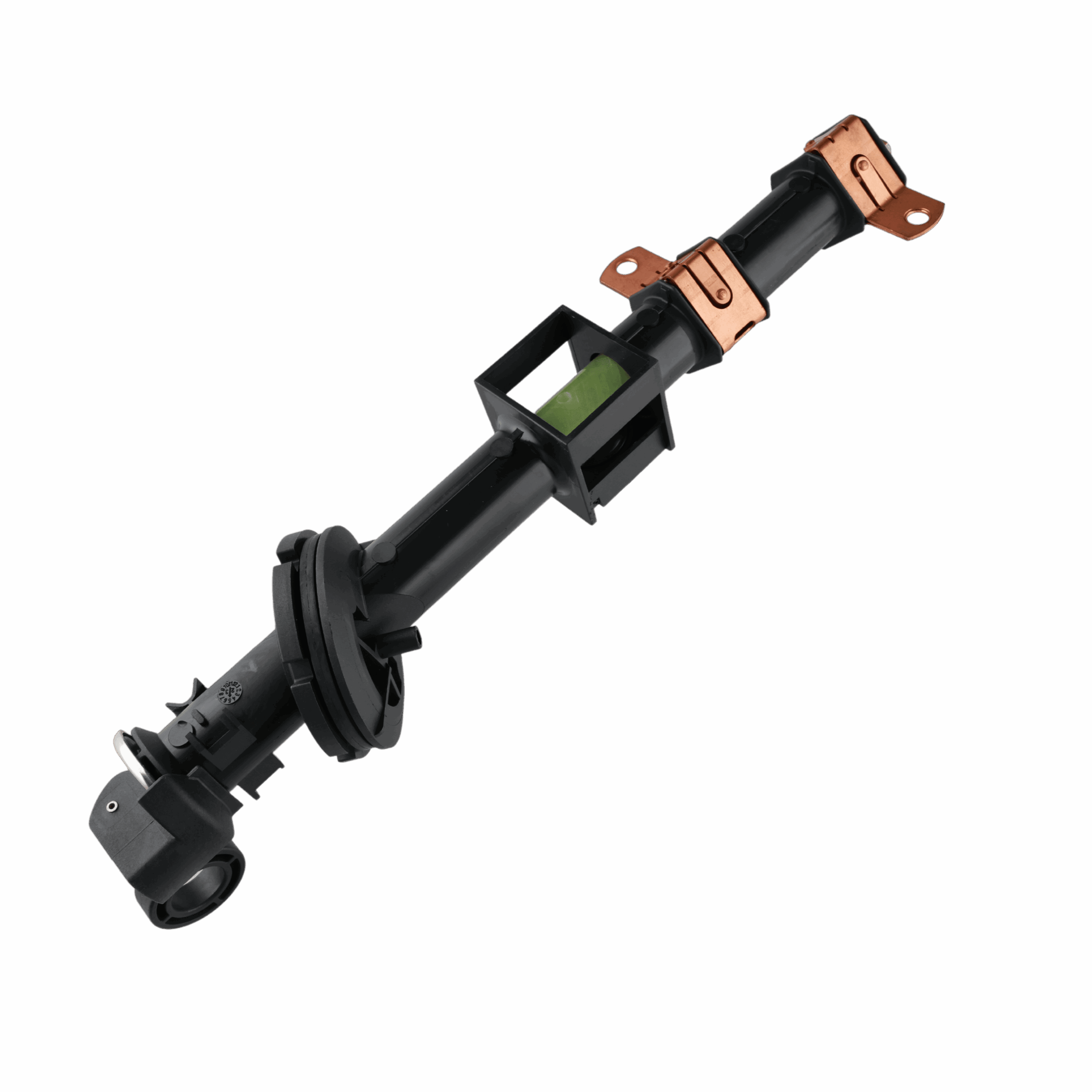

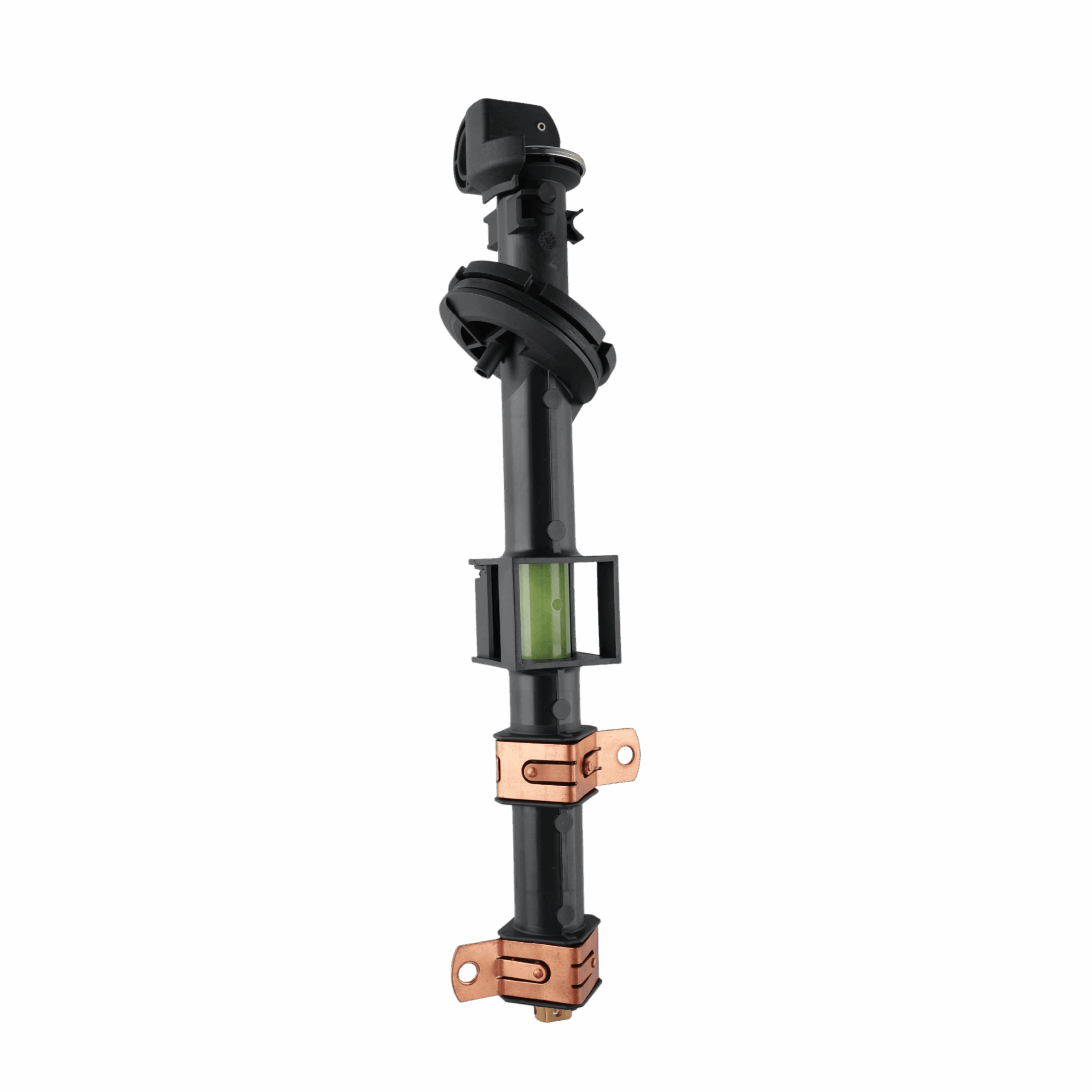

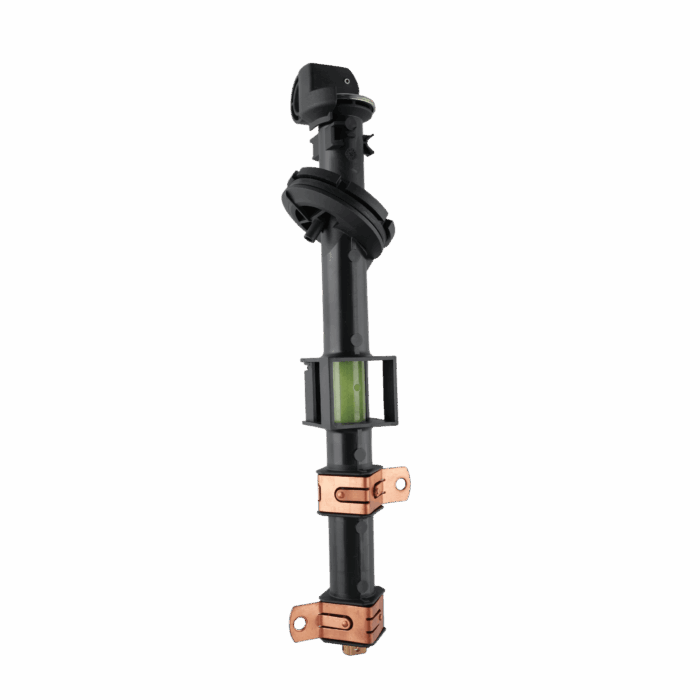

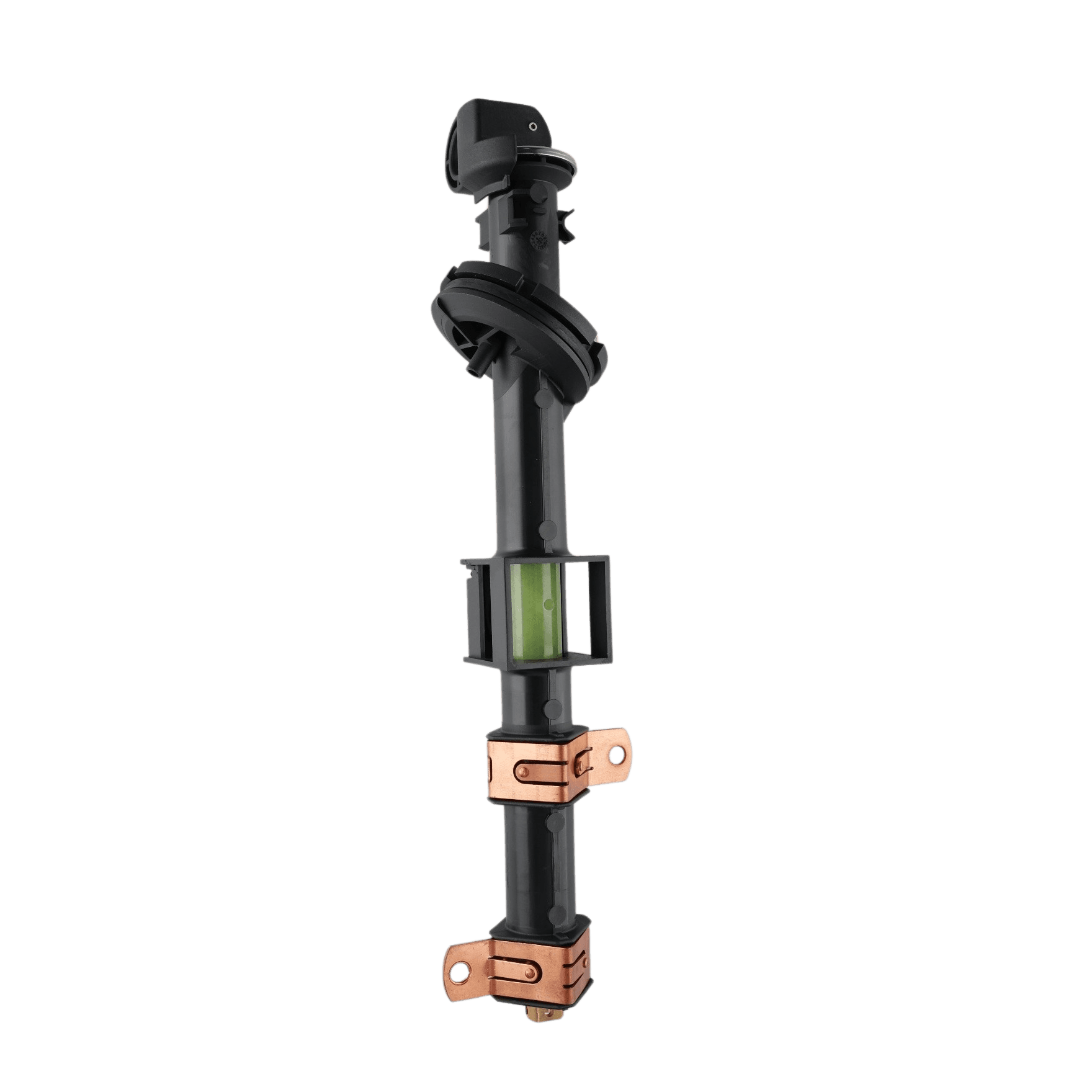

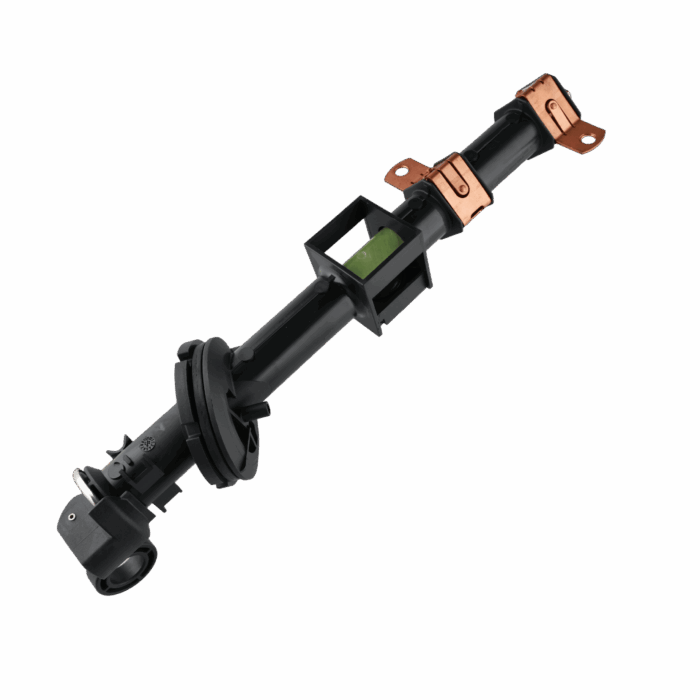

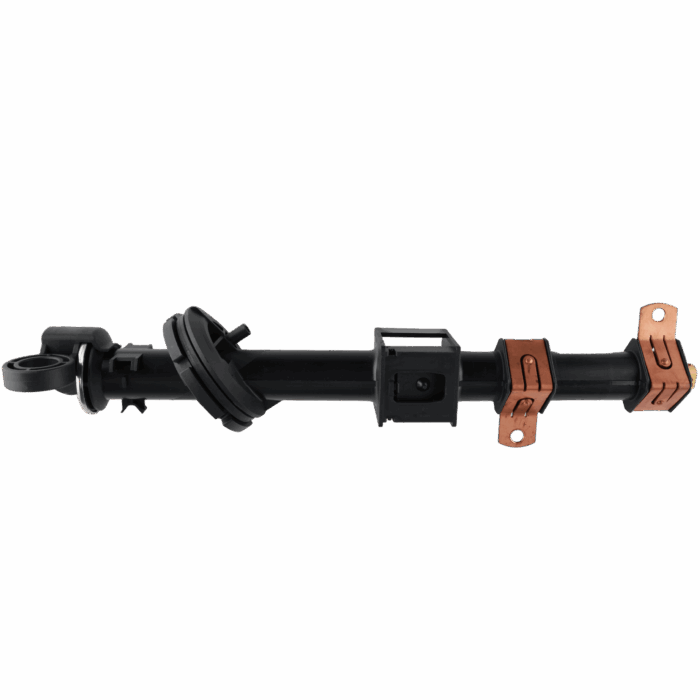

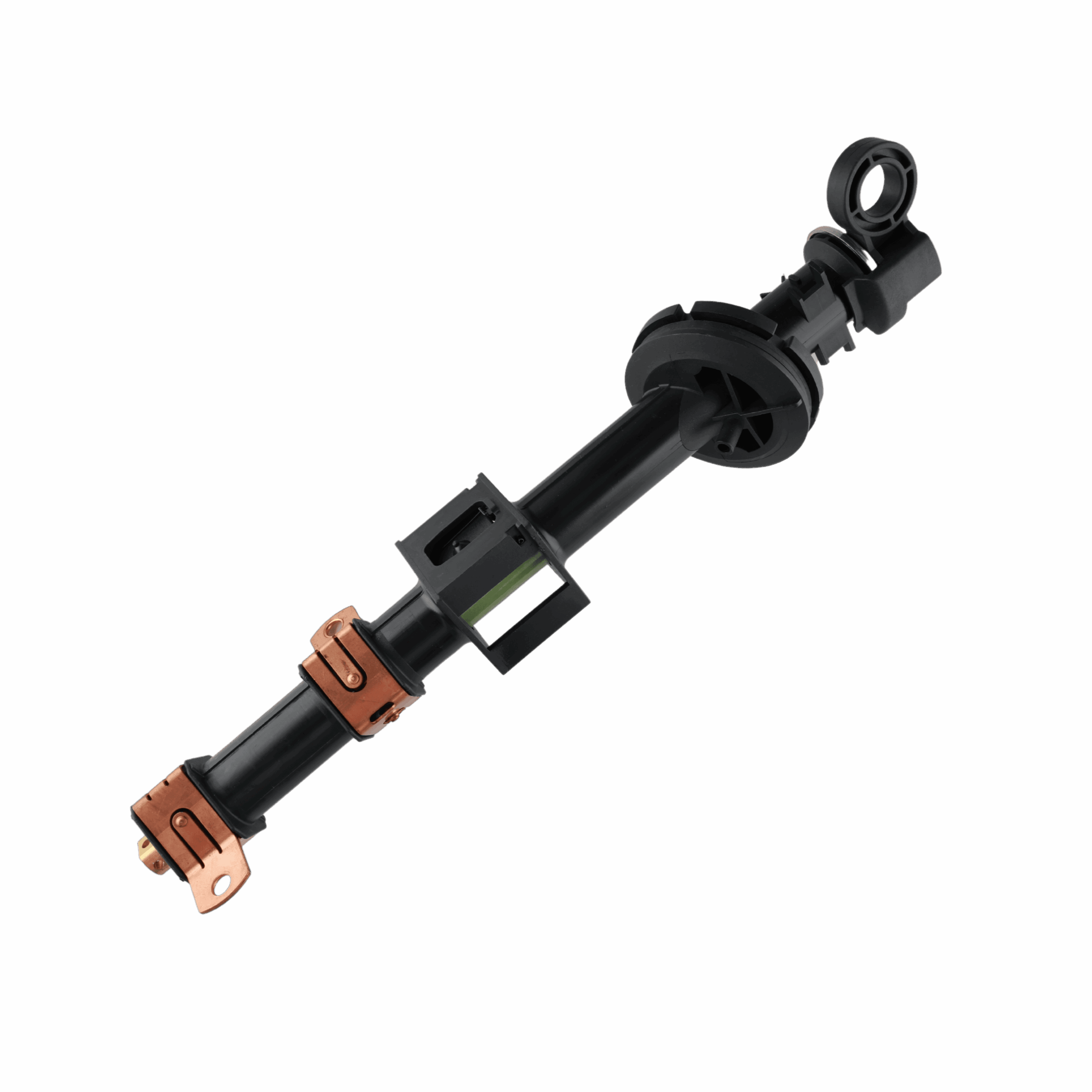

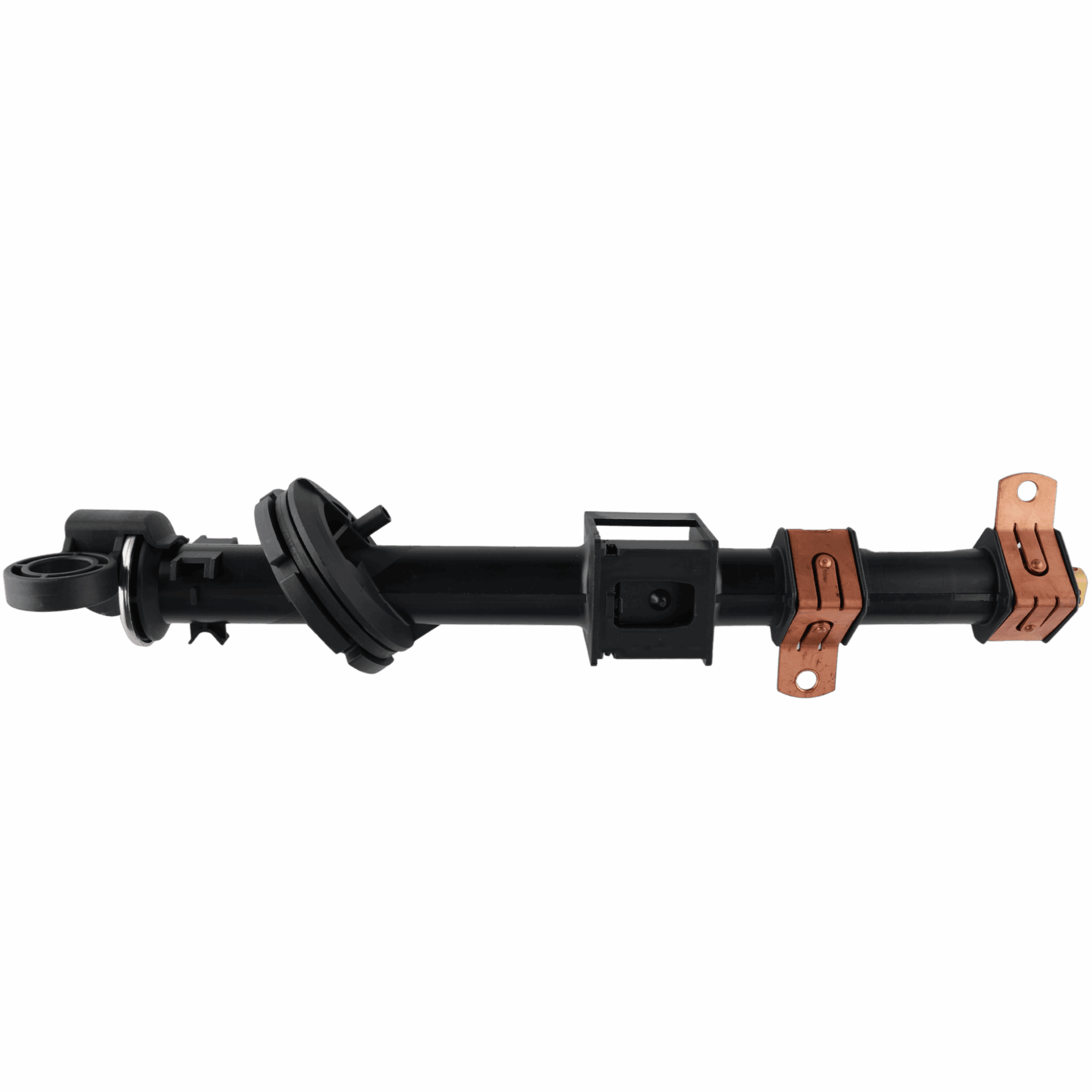

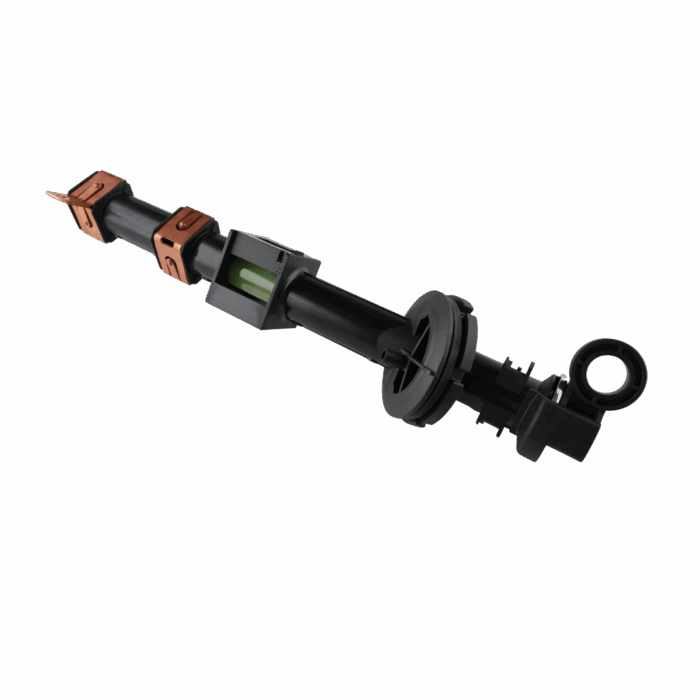

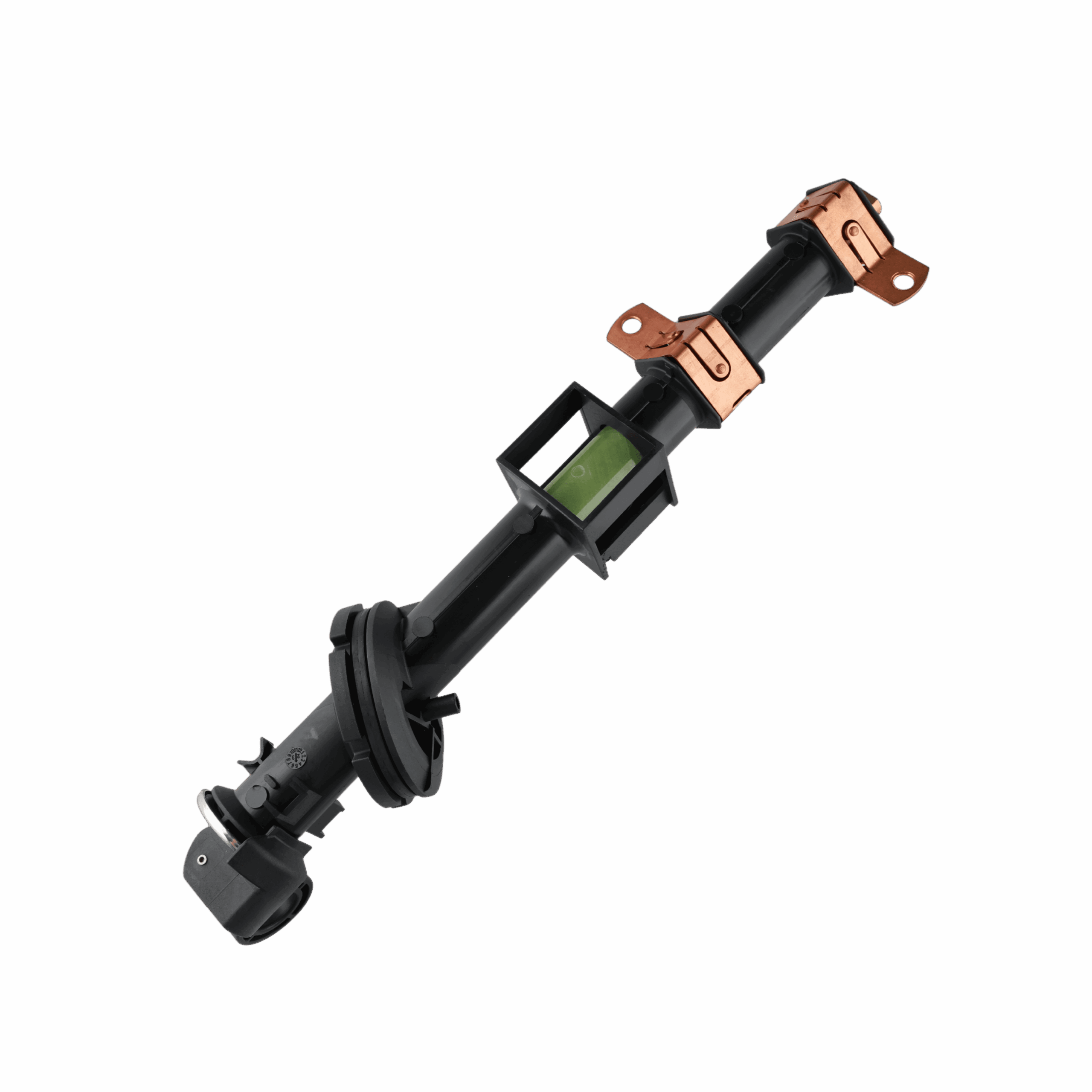

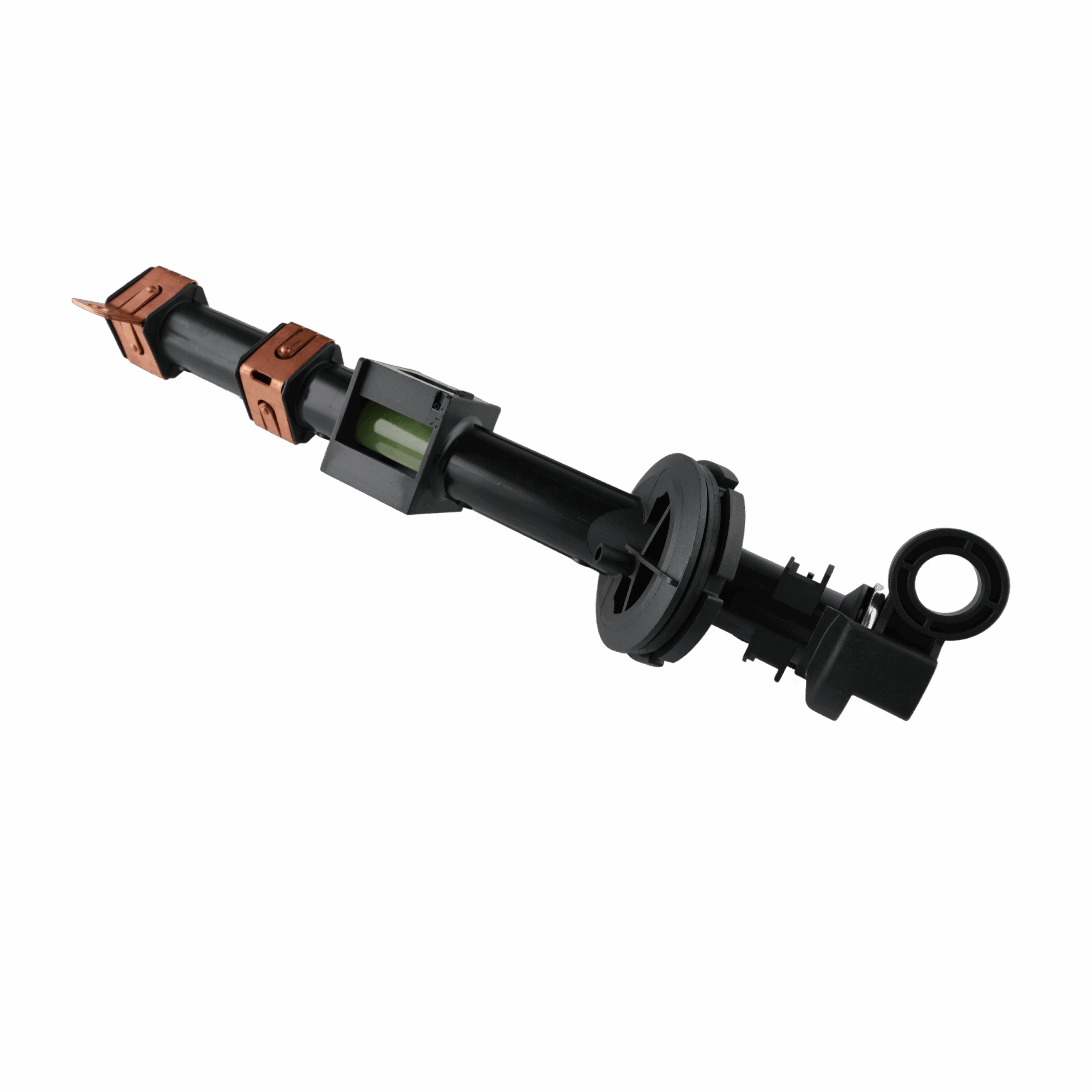

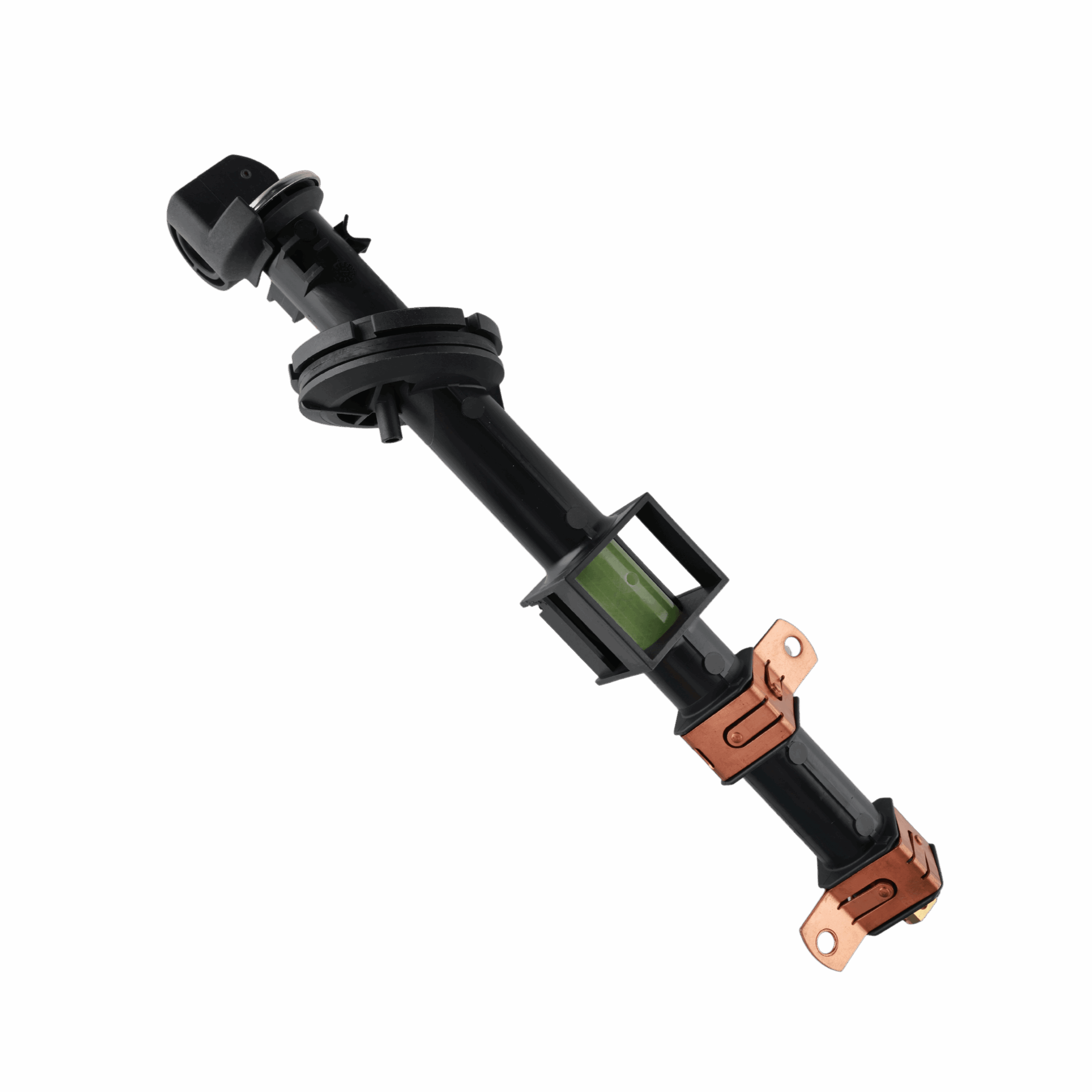

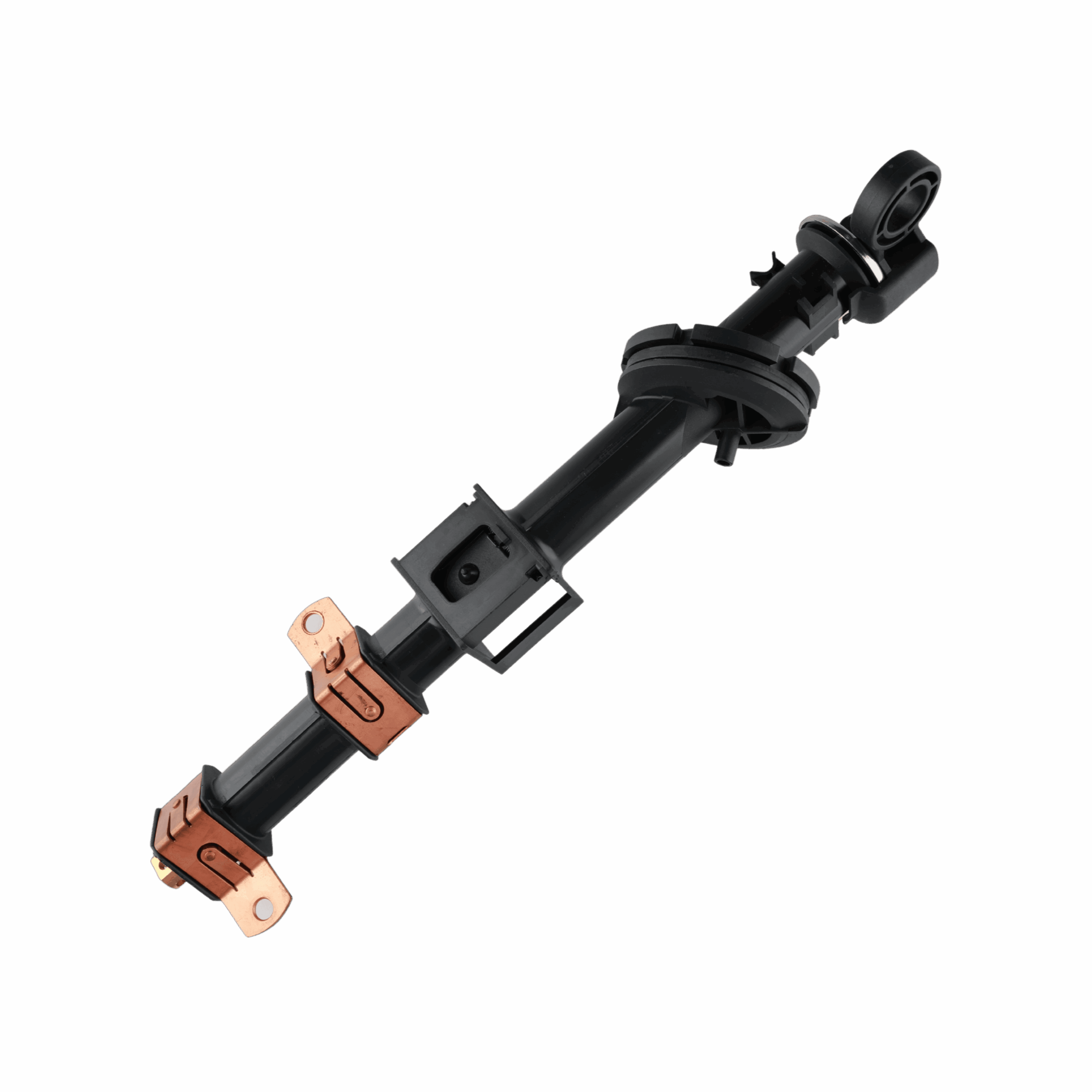

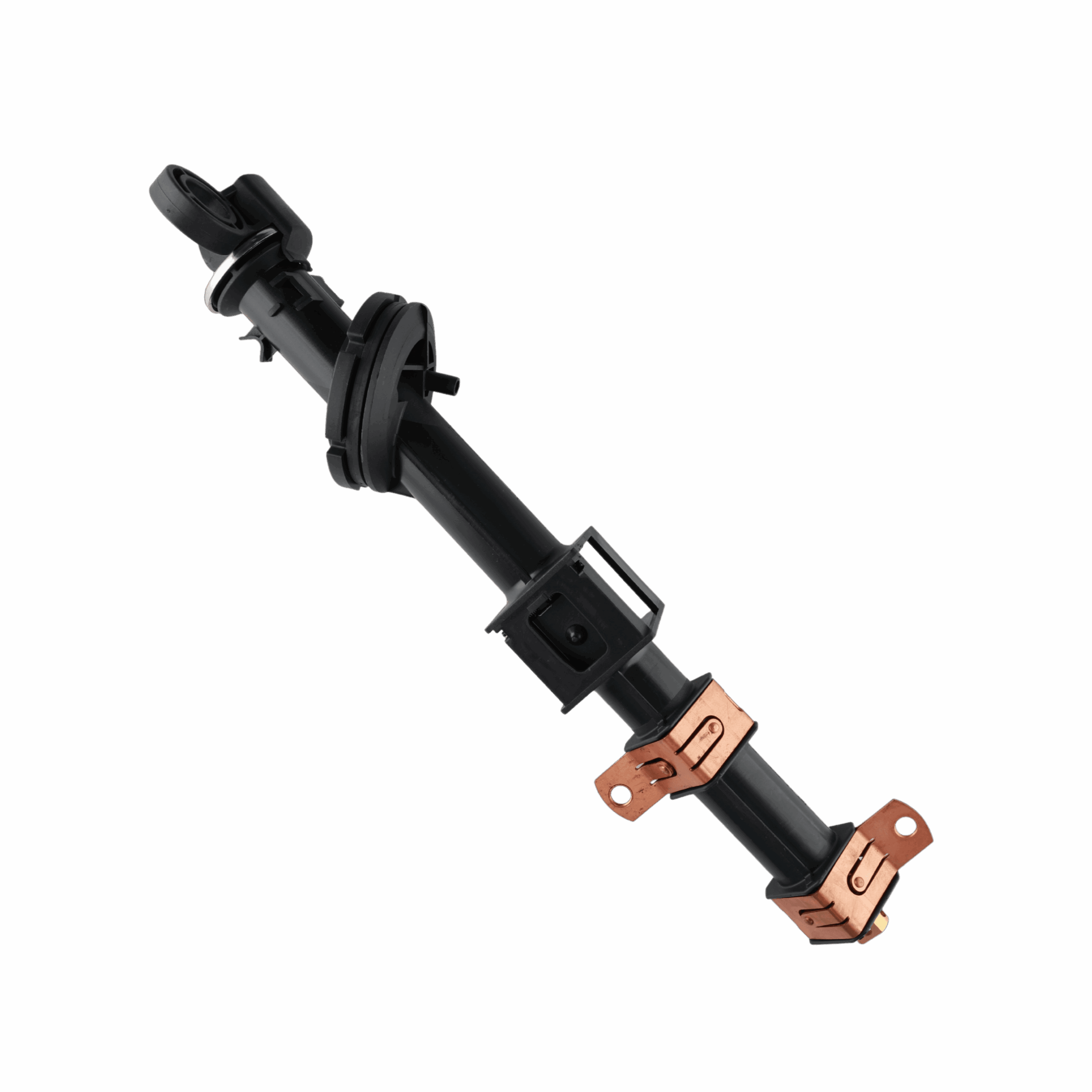

BON (Bay-o-net) Fuse Holder Assembly is an externally removable transformer fuses holder device. It is designed for used in pad-mounted or subsurface distribution transformers with insulated oil or equivalent fluid.
Technical Specification
| Rated voltage | 23kV, 38kV |
|---|---|
| Product Type Number | BFH23, BFH38 |
| Product Category | Holder |
Technical Specification
Special Description:
- Meets the requirements of IEEE Std. C37.41-2016.
- Ensures safe operation of the transformer while providing an efficient and convenient solution for fuse replacement.
Table 1 - Electrical Data
| Voltage Ratings | 23kV | 38kV |
| Maximum Single-Phase Interrupting Ratings in Mineral Oil | ||
| 8.3kV | 3,500A rms symmetric convection | |
| 15.5kV | 2,500A rms symmetric convection | |
| 23.0kV | 1,000A rms symmetric convection | |
| 38.0kV |
900A rms symmetrical (for 10-40A Integral Cartridge Link) 1,000A rms symmetric (for 65A Integral Cartridge Link) |
|
| Withstand Voltage | ||
| AC: 60Hz , 60 sec | 50kV | 70kV |
| Impulse Voltage Withstand | ||
| Impulse Voltage Withstand | 150kV | 200kV |
| Loadbreak Ratings (at 80% pf) | ||
| 10.0kV | 160A | |
| 15.5kV | 150A | |
| 26.7kV | 80A | |
| 38.0kV | 50A | |
| Type Number | BFH23 | BFH38 |
Table 2 – Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
| BFH23/38 | Caution Sticker | 1 |
| Installation Instruction Sheet | 1 | |
| BDT | Oil Drip Tray | 0 |
Note:
Oil drip tray is not a typical accessory for BFH series. If clients require oil drip tray, please propose product number of BDT while placing order.

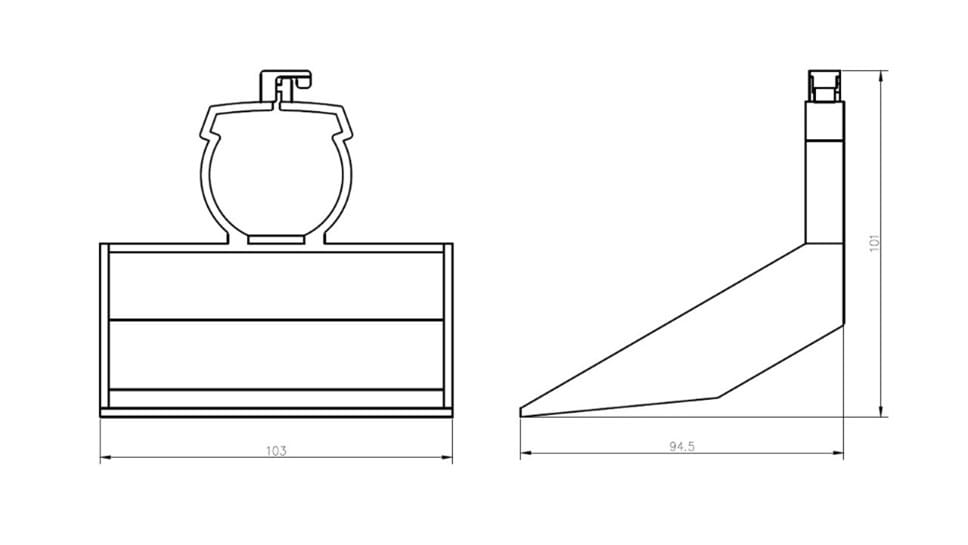

Image 1. Oil Drip Tray
