DTC Series
Product Description

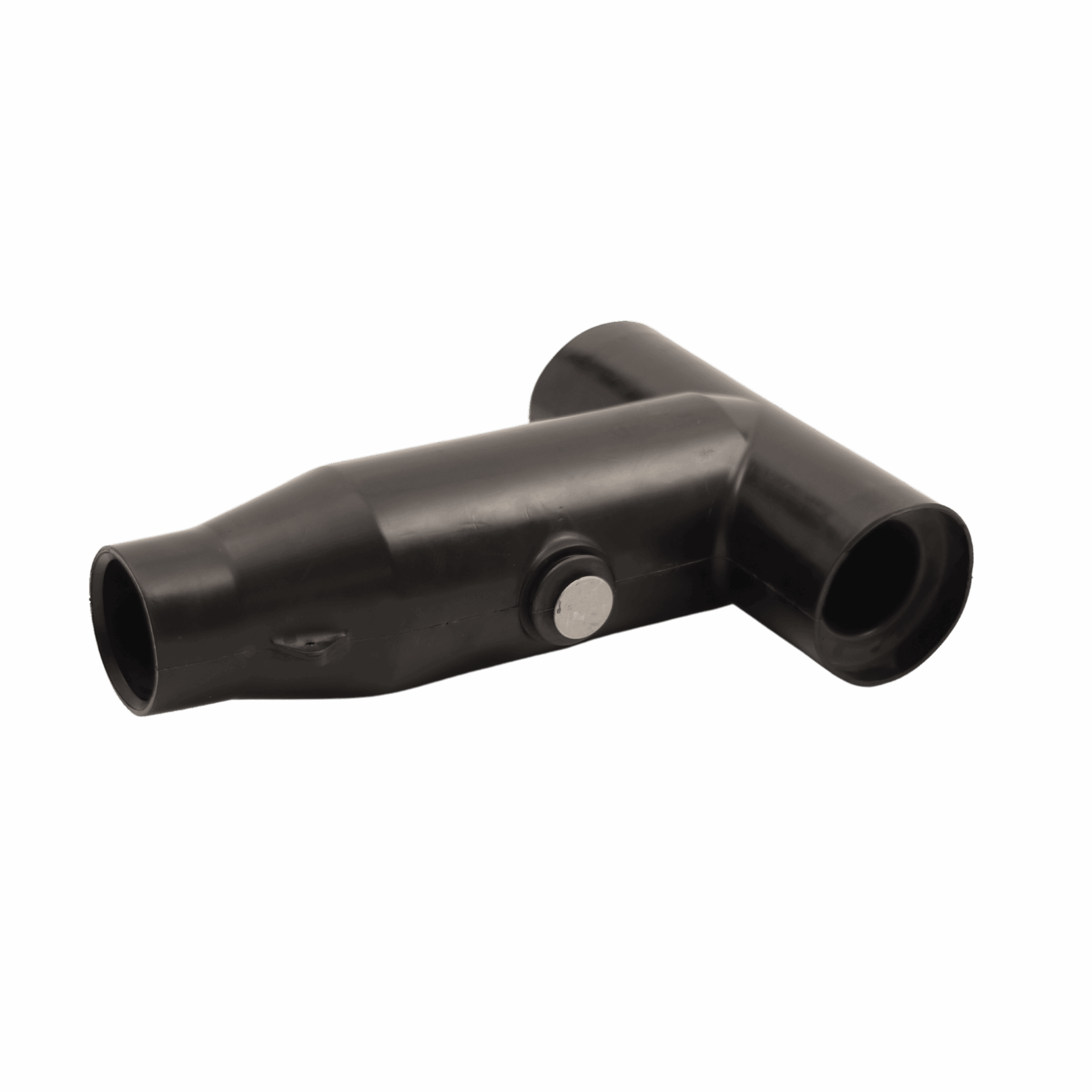

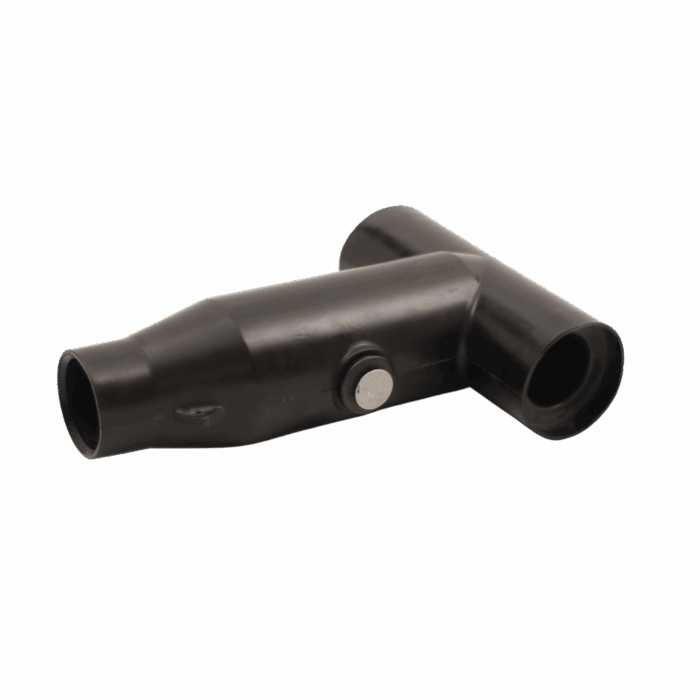

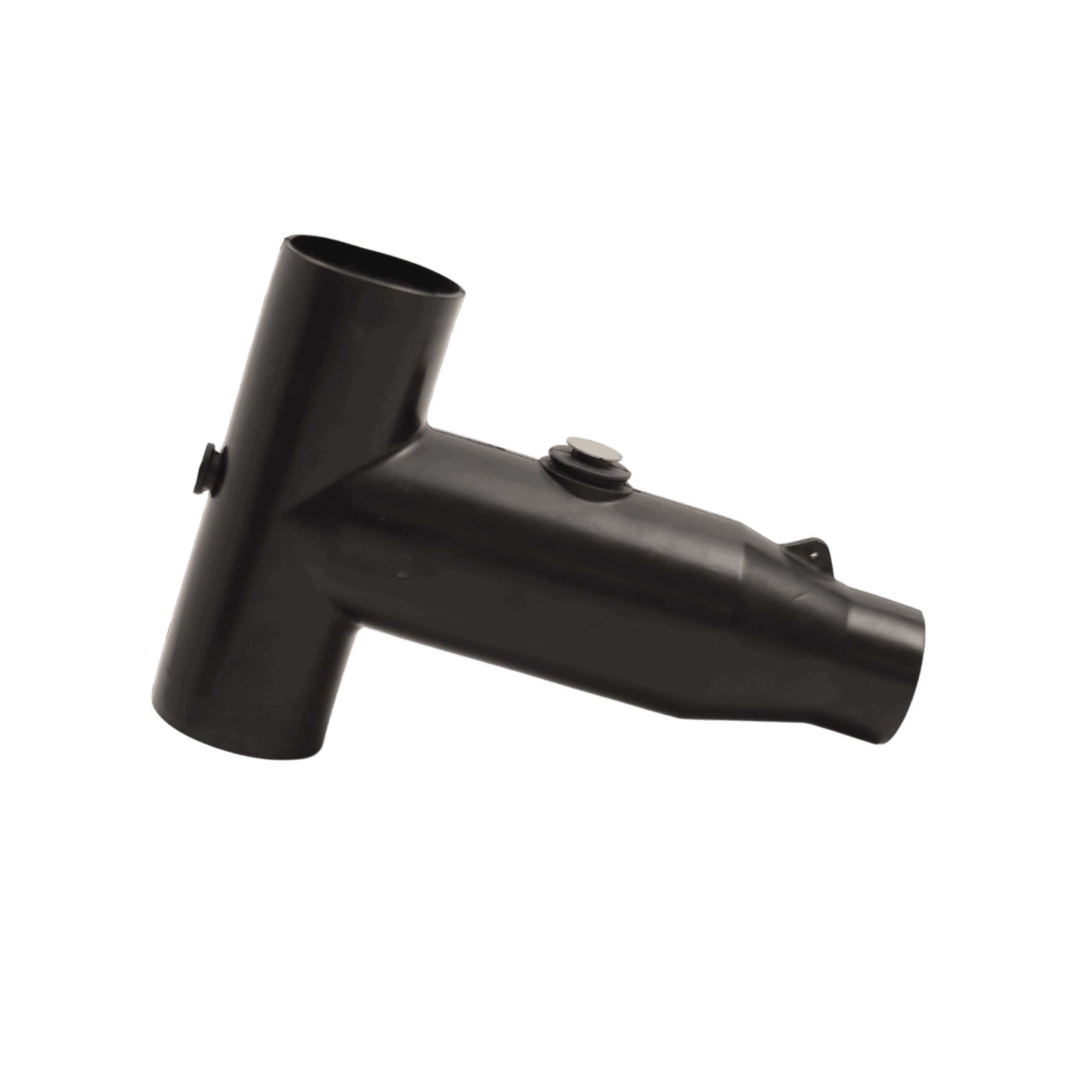

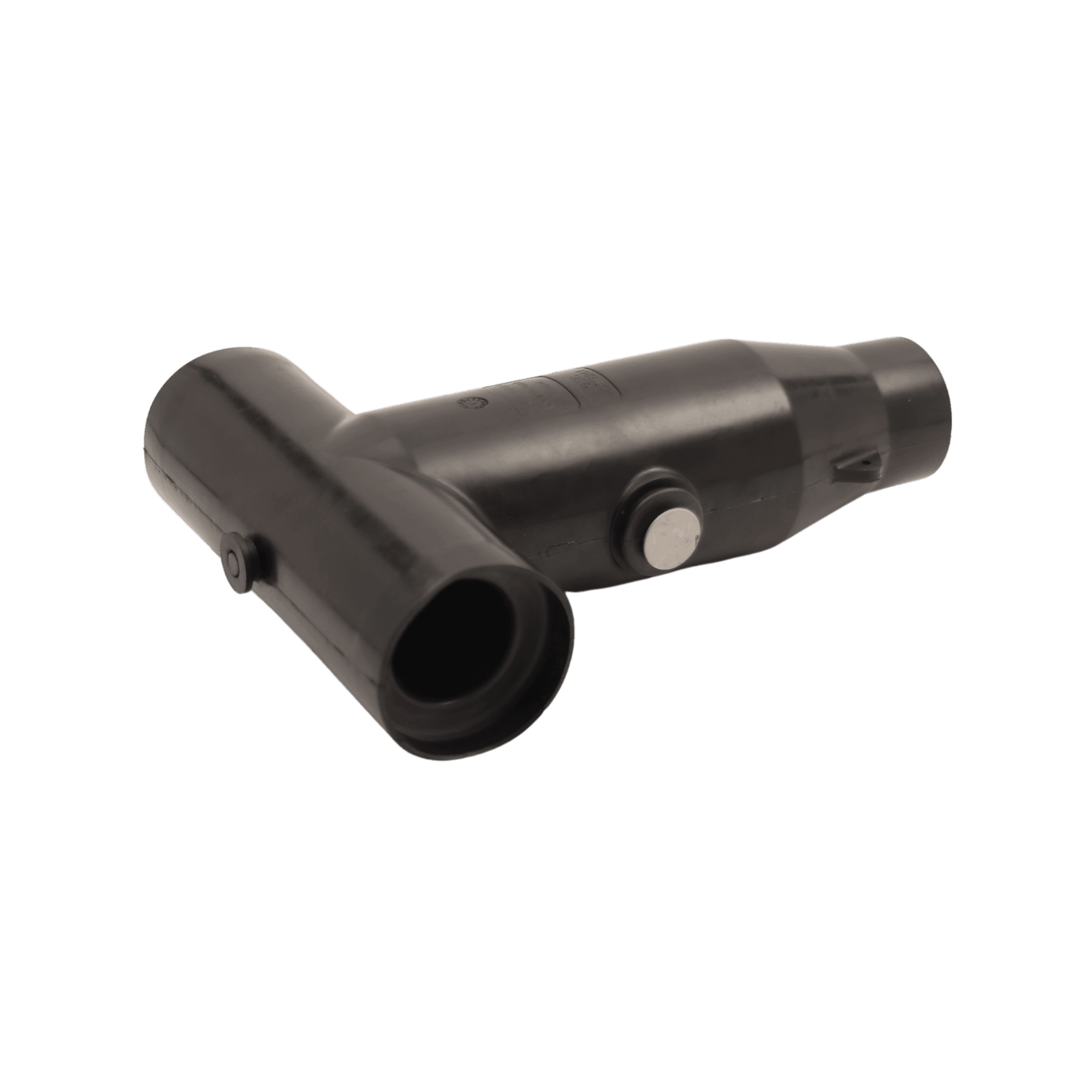

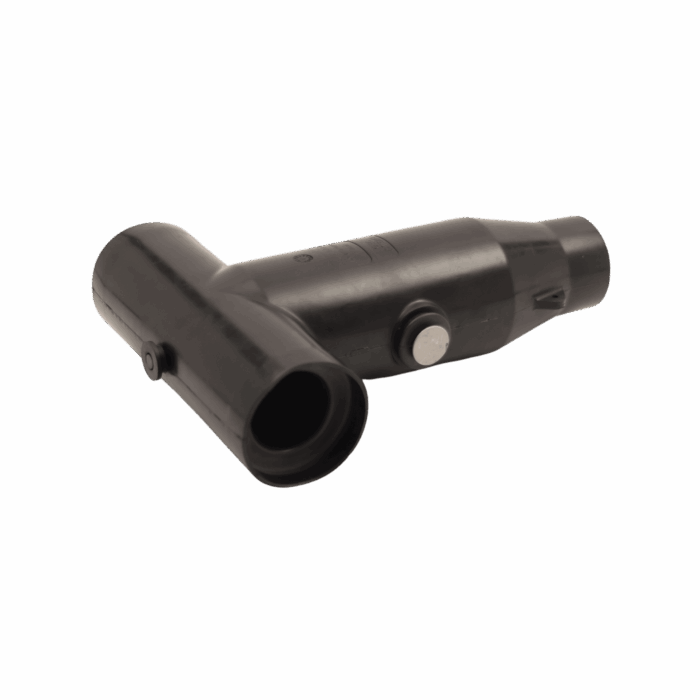

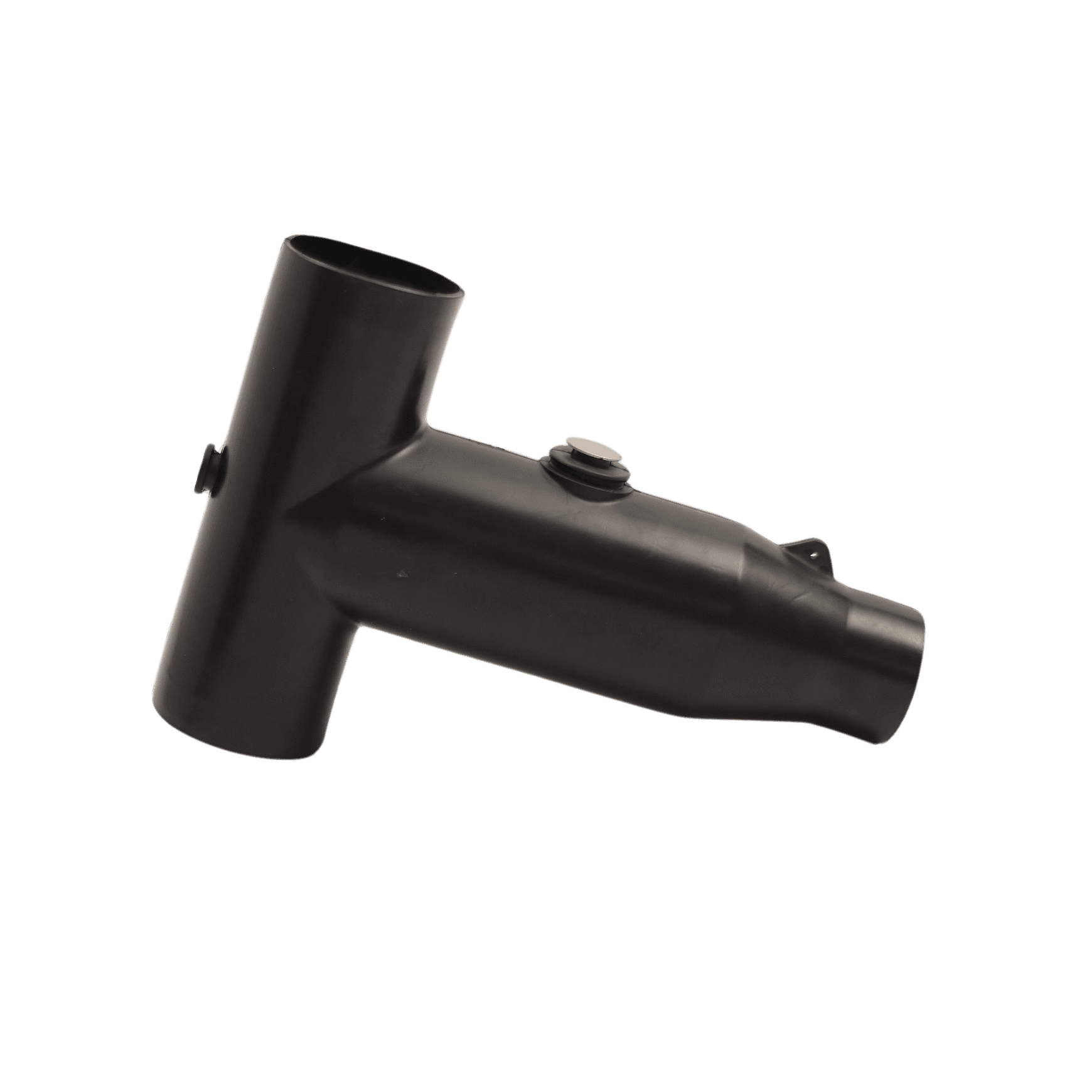

This T-Elbow Connector terminates high-voltage underground cable on deadfront apparatus such as transformers, switches, and switchgear.
Technical Specification
Product type number：DTC26N (N will determine by the cable size and replace it with 1 ~ 7)
| Rated voltage |
15/25kV |
|---|---|
| Rated Current |
600A |
| Product Type Number |
DTC261 ,DTC262 ,DTC263 ,DTC264 ,DTC265 ,DTC266 ,DTC267 |
| Product Category |
T-bolt Elbow Connector |
Technical Specification
Special Description:
- Fully shielded and submersible and meets the requirements of IEEE Std 386-2016” Separable Insulated Connector Systems”.
- The capacitive test point on the insulating plug provides a means of testing the circuit without disturbing the bolted connection.
Table 1 - Electrical Data
| Voltage Ratings | 15/25kV |
| Continuous Current | 600Amp |
| Withstand Voltage | 40kV |
| Impulse Voltage Withstand | 125kV |
| <3pC | 19kV |
| Operating Voltage | |
| Maximum Phase-to-Phase | 26.3kV |
| Maximum Phase-to-Ground | 15.2kV |
| Short Time Current | 10kA sym. for 0.17s 35kA sym. for 3.0s |
| Type Number (N will determine by the cable size and replace it with 1 ~ 7) | DTC26N |
Table 2 – Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
| DTC26N | Cable Adapter | 1 |
| Deadend Plug | 1 | |
| Shield Cap | 1 | |
| Tinned Copper Wire | 1 | |
| Compression Terminal Lug | 1 | |
| Silicone Lubricant | 4 | |
| Stainless Sheet | 2 | |
| Installation Instruction Sheet | 1 |
Note:

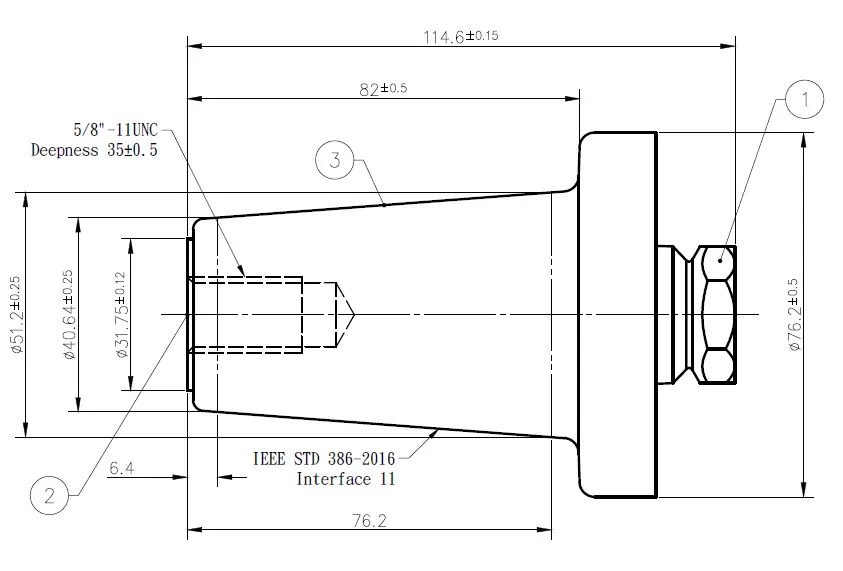

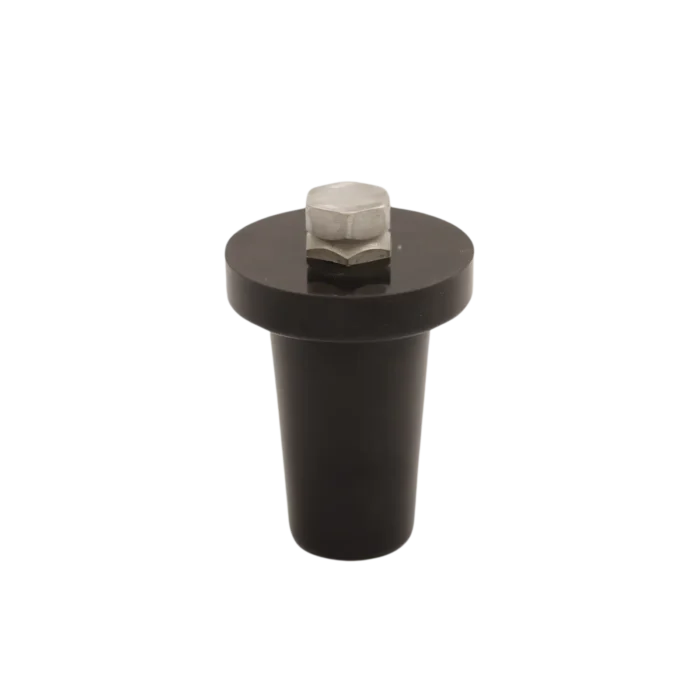

Image 1. Insulation Plug

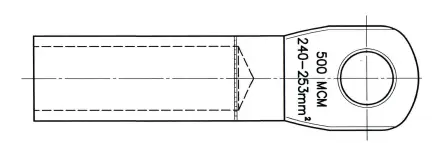

Image 2. Crimp Terminal
Image 3. Insulation Plug Cover

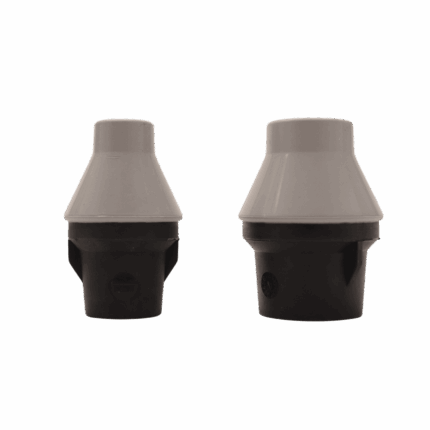

Image 4. cable adapter
