Fusing Protection Device

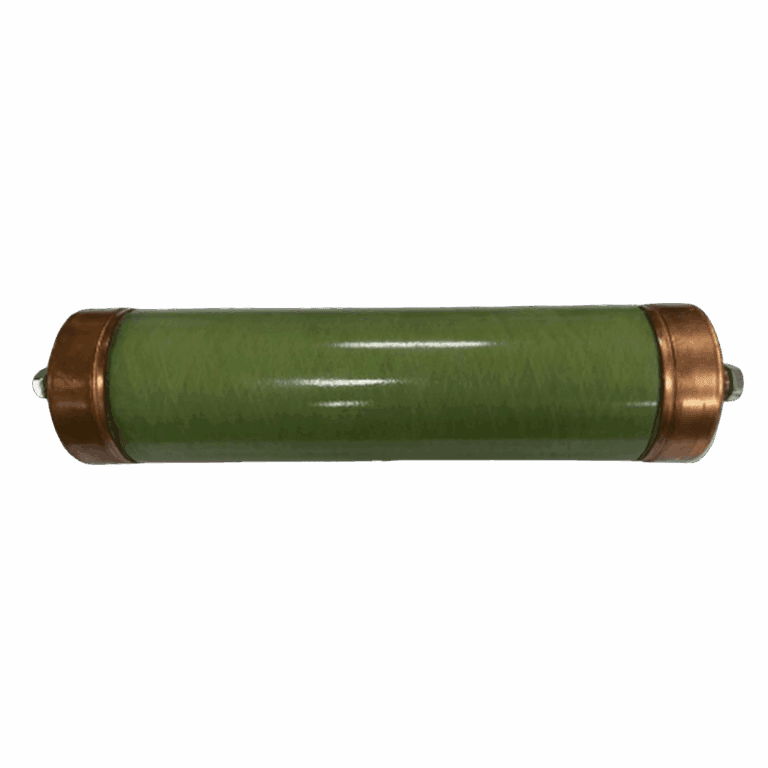

BCF Series
| Rated voltage |
8.3kV ,15.5kV ,17.2kV ,23kV ,38kV |
|---|---|
| Rated Current |
30A ,40A ,50A ,65A ,80A ,100A ,120A ,125A ,140A ,150A ,165A ,175A ,180A ,200A ,225A ,250A |
| Product Type Number |
BCF08-100 ,BCF08-125 ,BCF08-150 ,BCF08-165 ,BCF08-175 ,BCF08-180 ,BCF08-200 ,BCF08-250 ,BCF08-30 ,BCF08-40 ,BCF08-50 ,BCF08-65 ,BCF08-80 ,BCF15-100 ,BCF15-125 ,BCF15-150 ,BCF15-165 ,BCF15-180 ,BCF15-200 ,BCF15-225 ,BCF15-250 ,BCF15-30 ,BCF15-40 ,BCF15-50 ,BCF15-65 ,BCF15-80 ,BCF17-100 ,BCF17-125 ,BCF17-150 ,BCF17-30 ,BCF17-40 ,BCF17-50 ,BCF17-65 ,BCF17-80 ,BCF23-100 ,BCF23-125 ,BCF23-140 ,BCF23-150 ,BCF23-165 ,BCF23-175 ,BCF23-30 ,BCF23-40 ,BCF23-50 ,BCF23-65 ,BCF23-80 ,BCF38-100 ,BCF38-120 ,BCF38-125 ,BCF38-140 ,BCF38-150 ,BCF38-165 ,BCF38-175 ,BCF38-50 ,BCF38-65 ,BCF38-80 |
| Product Category |
Backup Current Limiting fuse |
CSF Series
| Rated voltage |
8.3kV ,15.5kV ,23kV |
|---|---|
| Rated Current |
6A ,10A ,15A ,25A ,40A ,65A ,100A ,140A |
| Product Type Number |
CSF006 ,CSF010 ,CSF015 ,CSF025 ,CSF040 ,CSF065 ,CSF100 ,CSF140 |
| Product Category |
Current Sensing Fuse Link |

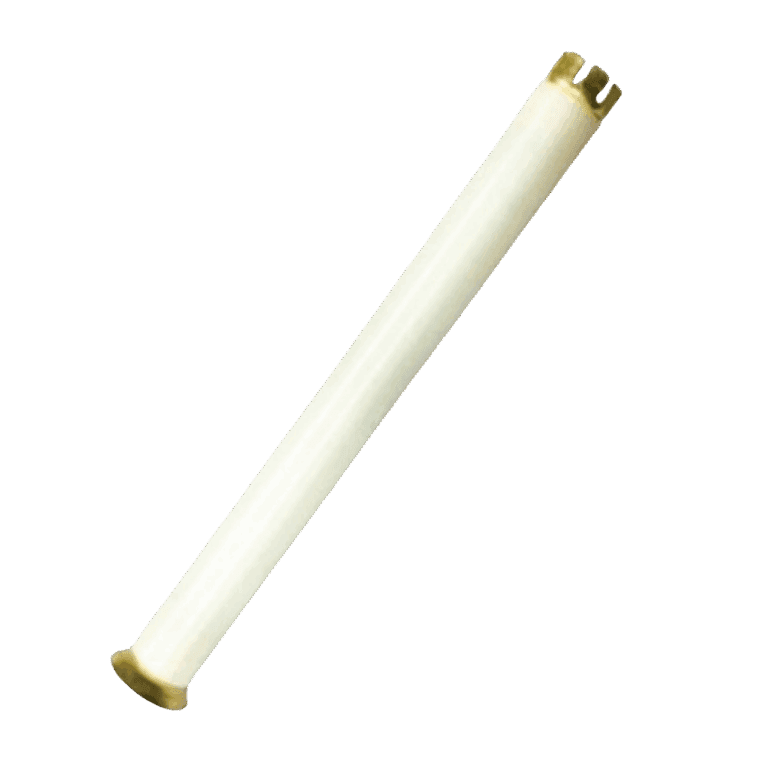

DEF Series
| Rated voltage |
8.3kV ,15.5kV ,23kV |
|---|---|
| Rated Current |
5A ,6A ,8A ,12A ,15A ,25A ,50A ,140A |
| Product Type Number |
DEF005 ,DEF006 ,DEF008 ,DEF012 ,DEF015 ,DEF025 ,DEF040 ,DEF050 |
| Product Category |
Dual Element Fuse Link |
DSF Series
| Rated voltage |
8.3kV ,15.5kV ,23kV ,38kV |
|---|---|
| Rated Current |
3A ,8A ,10A ,15A ,20A ,25A ,32A ,40A ,50A ,65A ,80A ,100A ,125A ,140A |
| Product Type Number |
38DSF003 ,38DSF008 ,38DSF010 ,38DSF015 ,38DSF020 ,38DSF025 ,38DSF032 ,38DSF040 ,38DSF050 ,38DSF065 ,38DSF080 ,38DSF100 ,DSF003 ,DSF008 ,DSF015 ,DSF025 ,DSF050 ,DSF065H ,DSF100H ,DSF125H ,DSF140H |
| Product Category |
Dual Sensing Fuse Link |
