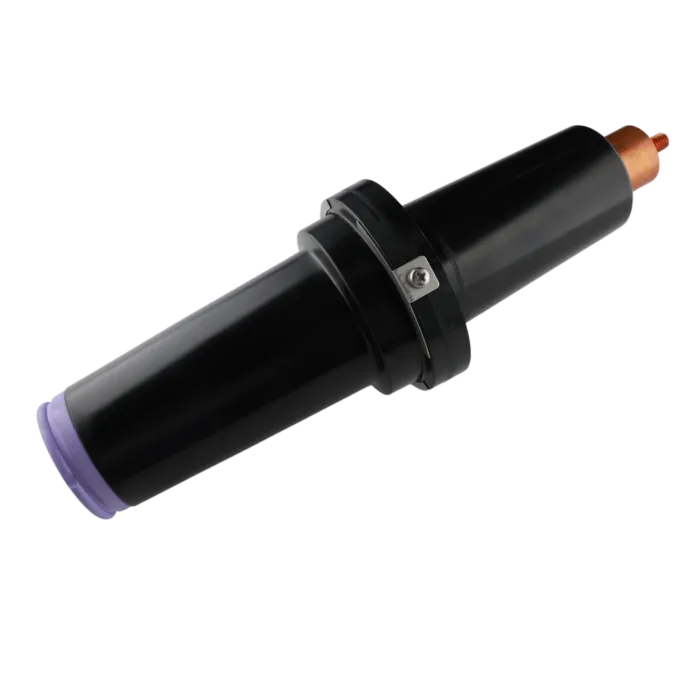

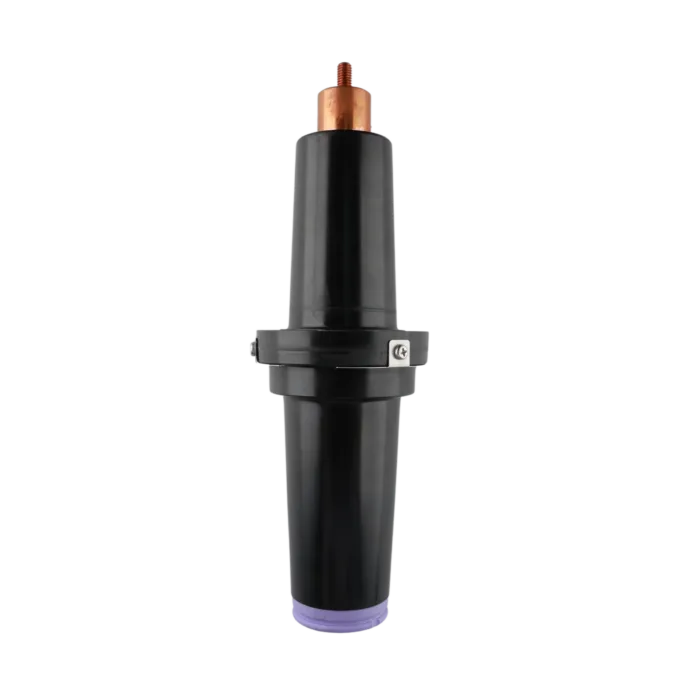

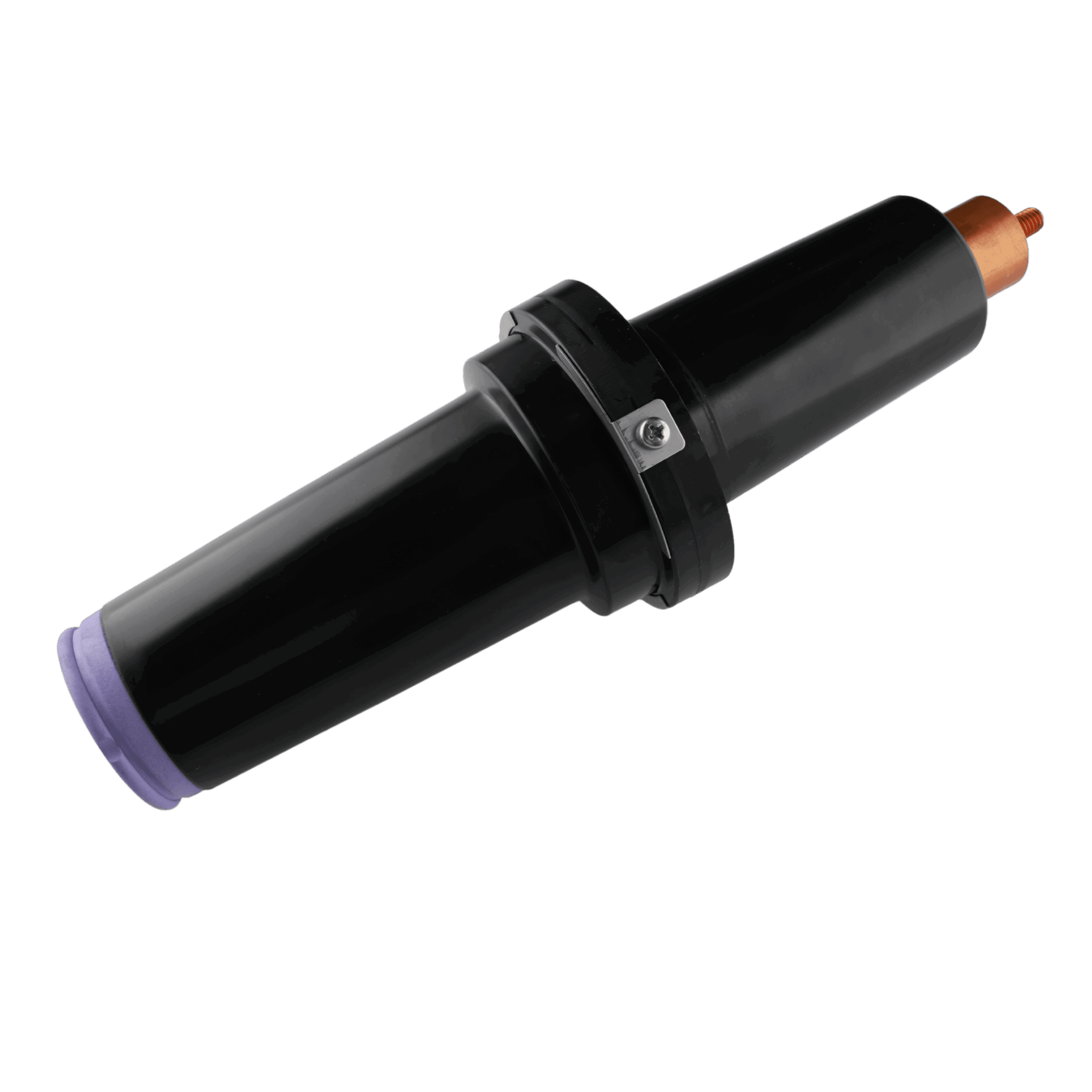

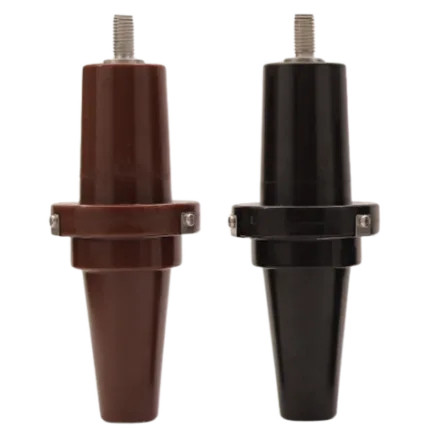

EOB-L Series
Product Description
Designed for the termination of primary winding leads at the front plate of fluid (mineral oil, silicone oil, and seed-based oil or an approved equivalent) filled sidewall mounting apparatus.
Technical Specification
| Rated voltage |
35kV |
|---|---|
| Rated Current |
200A |
| Product Type Number |
EOBB328 |
| Product Category |
Integral Bushing |
Technical Specification
Special Description:
- Designed and manufactured in accordance with the requirements of IEEE Std 386TM-2016, standard for separable insulated connector systems. For external attachment and allow interchangeability with similarly designed bushings used on many types of pad-mounted transformers.
- Product manufactured with high quality epoxy material. Operational temperature withstand can be up to 150°C。
- One-Piece design combined bushing insert and bushing well, providing easier way to mate with same rated elbow connector directly.
Table 1 - Electrical Data
| Voltage Ratings | 35kV |
| Continuous Current | 200Amp |
| Withstand Voltage | 50kV |
| Impulse Voltage Withstand | 150kV |
| <3pC | 26kV |
| Operating Voltage | |
| Maximum Phase-to-Phase | 36.6kV |
| Maximum Phase-to-Ground | 21.1kV |
| Short Time Current | 10kA sym. for 0.17s 35kA sym. for 3.0s |
| Type Number | EOB328 |
Table 2 – Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
| EOB328 | 4-stud Clamp (Carbon Steel with yellow zinc plated) | 1 |
| Oil Resistant Gasket | 1 | |
| Shipping Cap for interface (not for operation) | 1 | |
| Installation Manual | 1 |
Note:
Image 1. Black iron (color-plated) 3-hole platen
Image 2. Rubber Oil Seal Washers
