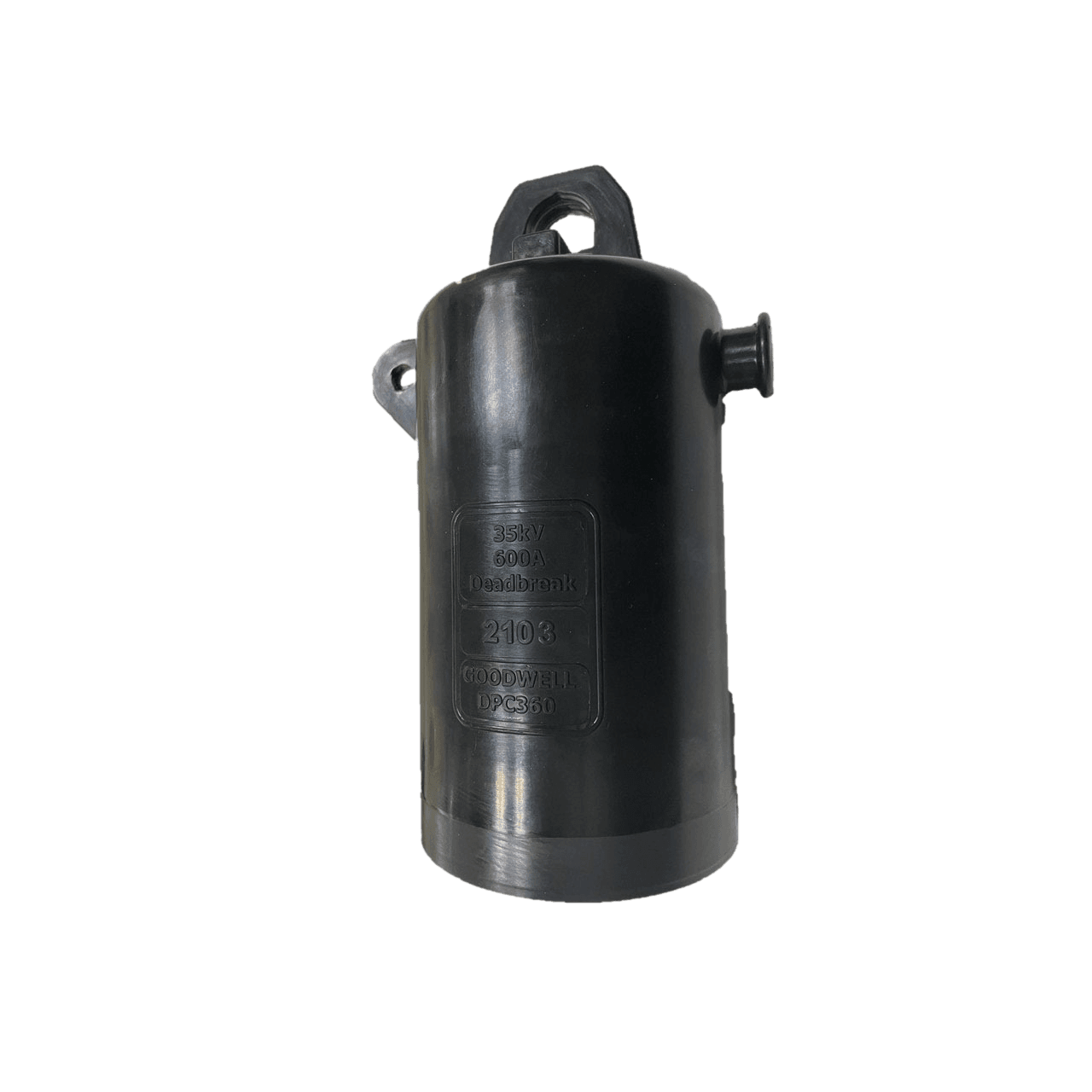

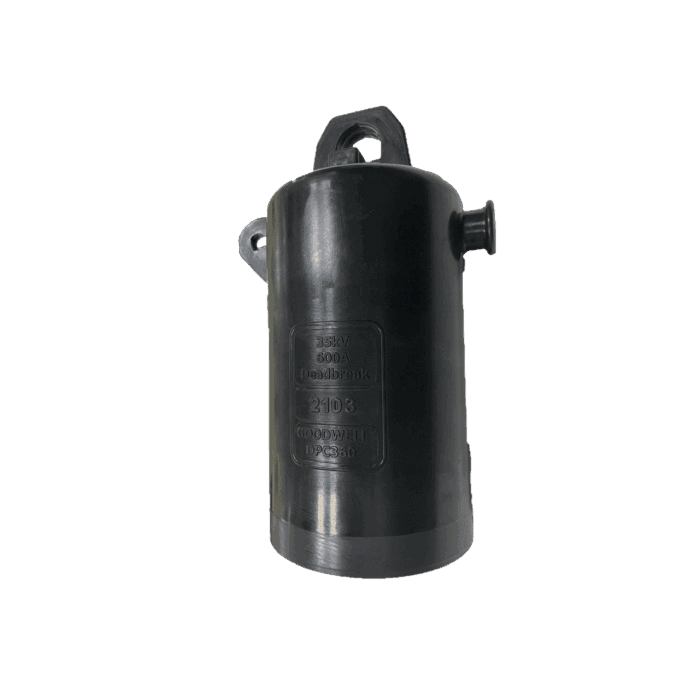

DPC Series
Product Description
Provides insulated, fully shielded submersible protection for energized deadbreak interfaces. For temporary or permanent installation on deadbreak bushings, junctions and other accessories.
Technical Specification
| Rated voltage |
15/25kV ,35kV |
|---|---|
| Rated Current |
600A |
| Product Type Number |
DPC260 ,DPC360 |
| Product Category |
Insulated Protective Cap |
Technical Specification
Special Description:
- Designed and manufactured in accordance with the requirements of IEEE Std 386TM-2016, standard for separable insulated connector systems. For external attachment and allow interchangeability with similarly designed bushings used on many types of pad-mounted transformers.
Table 1 - Electrical Data
| Voltage Ratings | 15/25kV | 35kV |
| Continuous Current | 600Amp | |
| Withstand Voltage | 40kV | 50kV |
| Impulse Voltage Withstand | 125kV | 150kV |
| <3pC | 19kV | 26kV |
| Operating Voltage | ||
| Maximum Phase-to-Phase | 26.3kV | 36.6kV |
| Maximum Phase-to-Ground | 15.2kV | 21.1kV |
| Short Time Current | 25kA sym. for 0.17s 10kA sym. for 3.0s | |
| Type Number | DPC260 | DPC360 |
Table 2 – Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
| DPC260 | Silicone Lubricant Stainless Sheet Installation Manual | 1 1 1 |
| DPC360 |
Note:

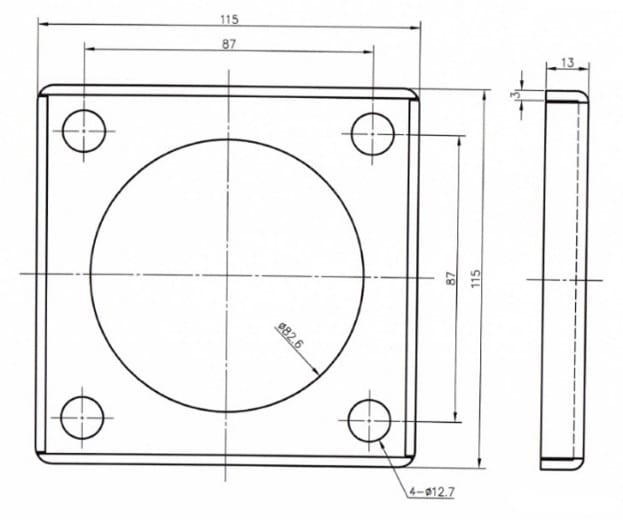

Image 1. Stainless Steel 4-Hole Plate

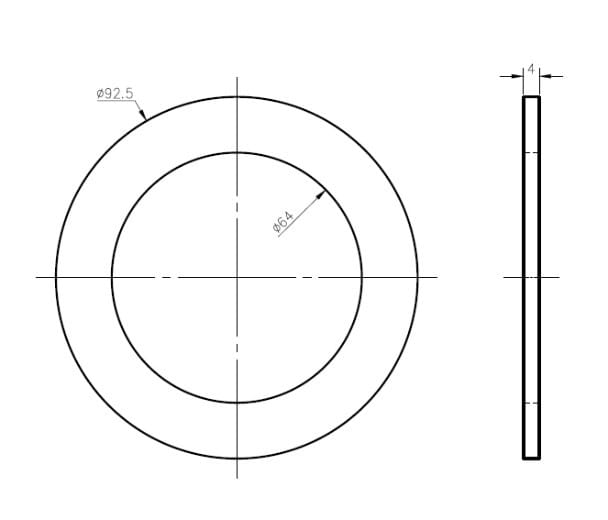

Image 2. Rubber Oil Seal Washers
Image 3. Double attachment bolt
