SPB Series
Product Description

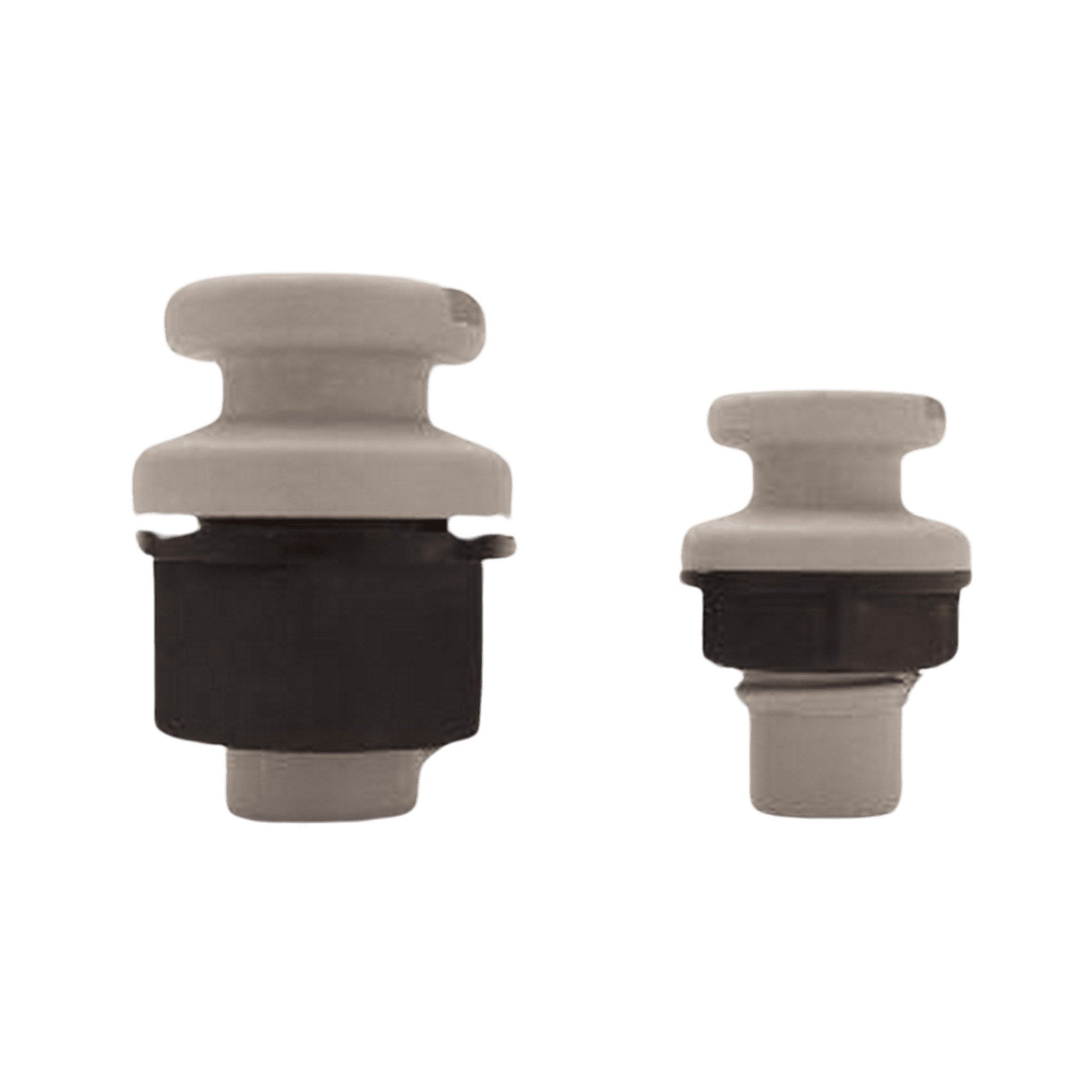

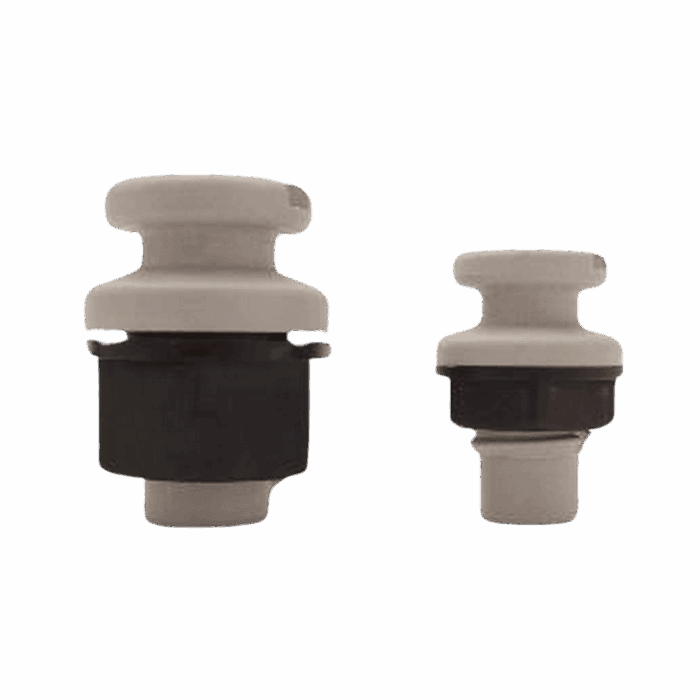

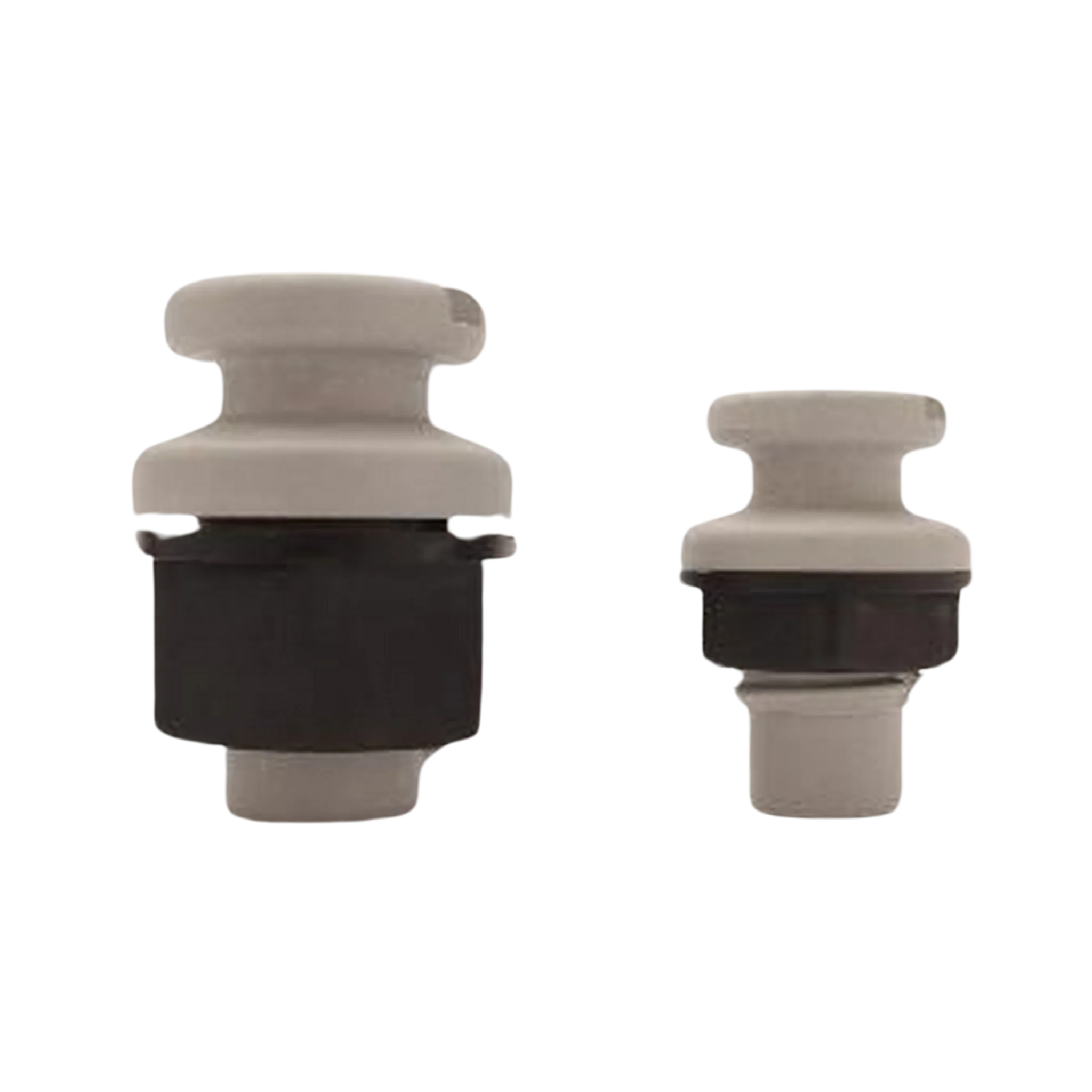

The 1.2kV low voltage bushing features a fully retained gasket with controlled compression, independent of the force on the bushing body caused by cable loading.
Technical Specification
| Rated voltage |
1.2kV ,2.4kV |
|---|---|
| Product Type Number |
SPB012 ,SPB024 |
| Product Category |
Eye-bolt |
Technical Specification
Special Description:
- Compliant with ANSI / IEEE Std. C57.19.01-2017 standards.
- The UV-shielded gasket ensures long-term outdoor durability without aging or degradation.
- Made from high-impact engineered material, providing excellent shock resistance, vibration resistance, and weatherproofing.
- The bushing directly contacts the tank surface, transferring cantilever loads to the tank wall to prevent leakage caused by heavy cable loads.
Table - Electrical Data
| Voltage Rating | 1.2kV Class | 2.4kV Class |
| Withstand Voltage | ||
| AC: 60Hz , 60 sec | 10kV | |
| Impulse Voltage Withstand | ||
| BIL and Full Wave Crest | 30kV | 45kV |
| Rated Current | ||
| 3/8" Conductor | 250Amp | |
| 1/2" Conductor | 400Amp | |
| 5/8" Conductor | 600Amp | |
| Type Number | SPB012 | SPB024 |
Note: Only provide thermoplastic (PBT) bushing body at the moment.
