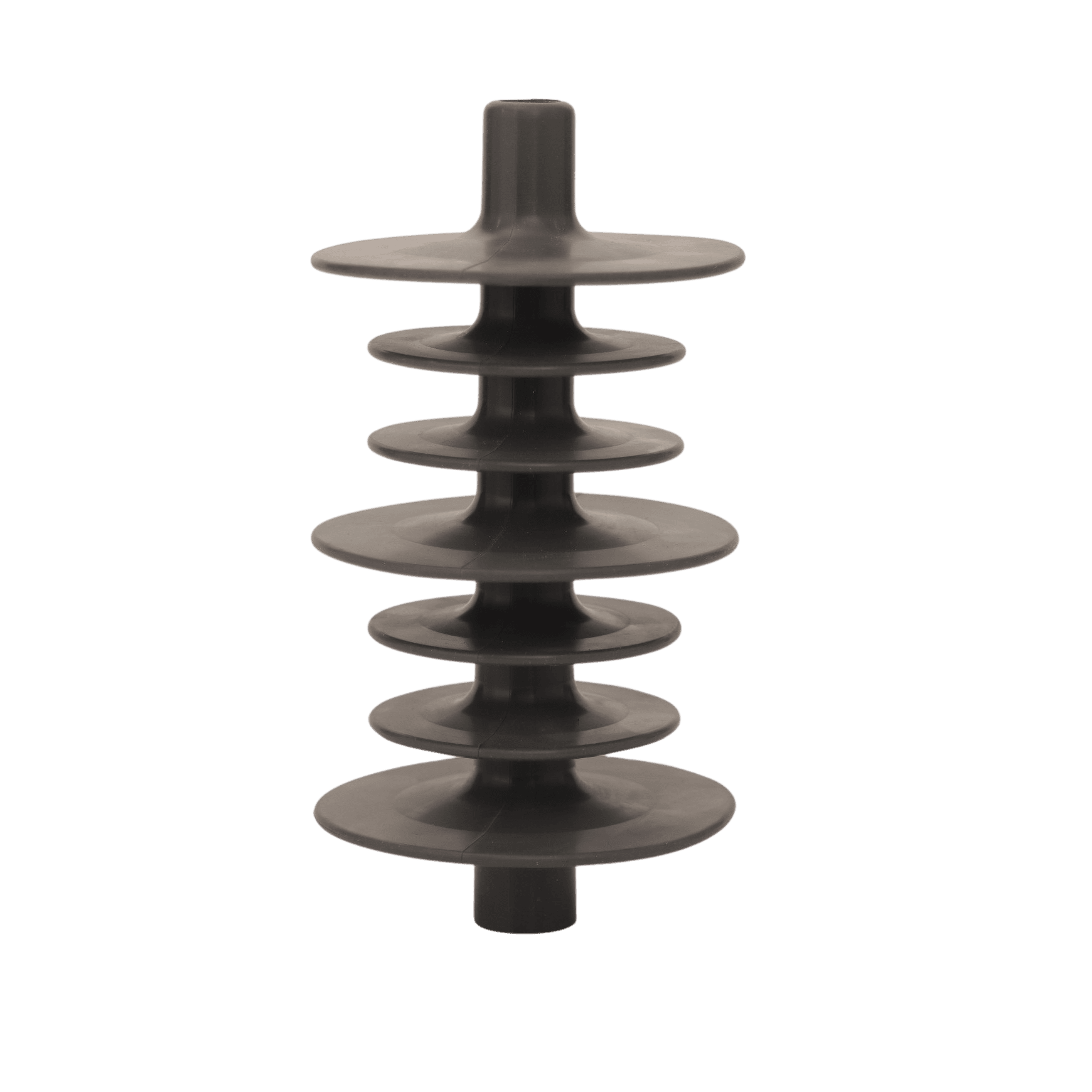

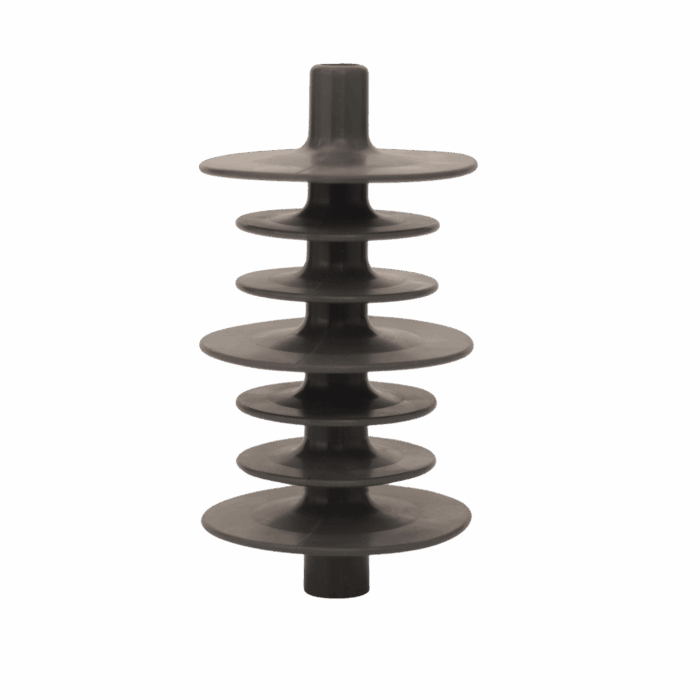

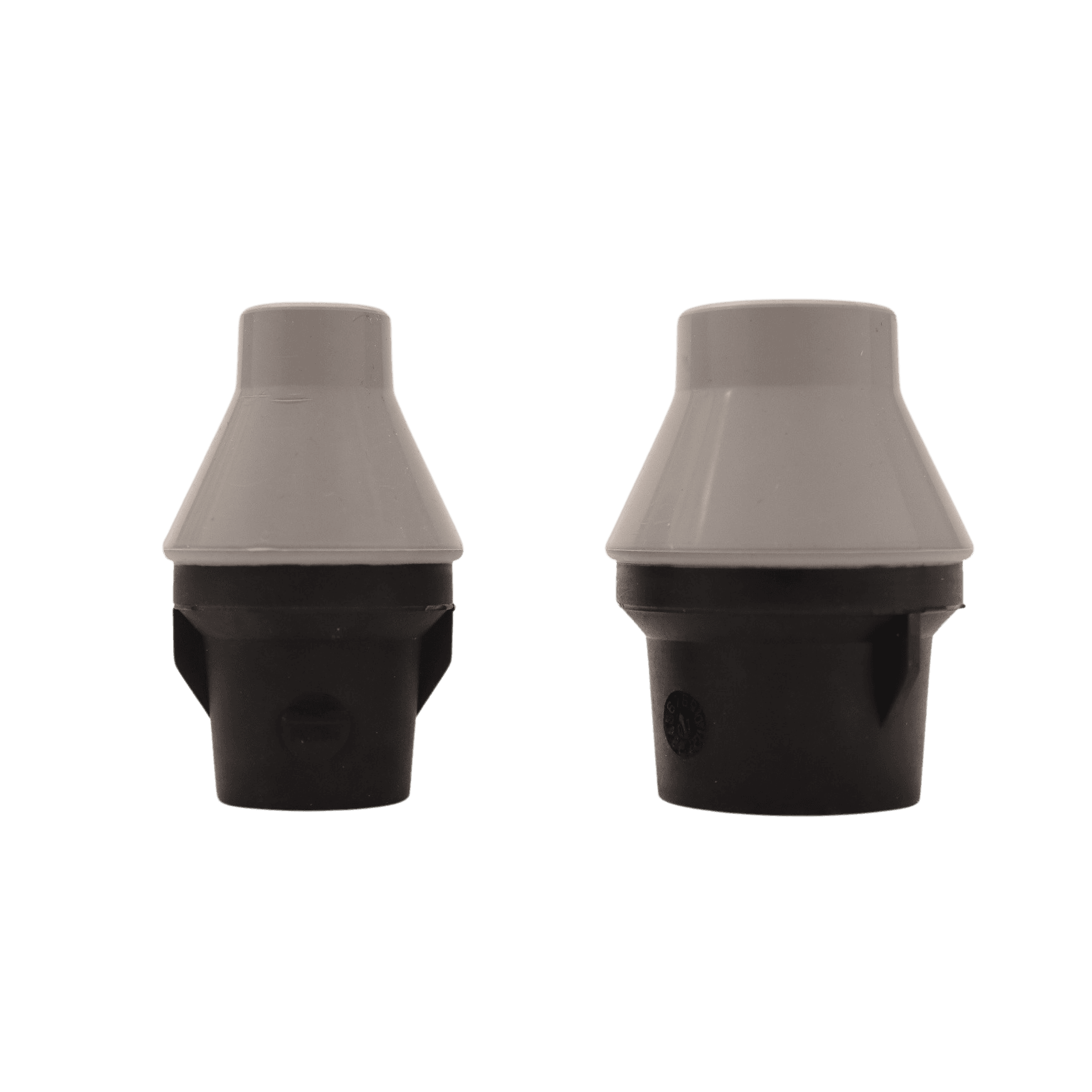

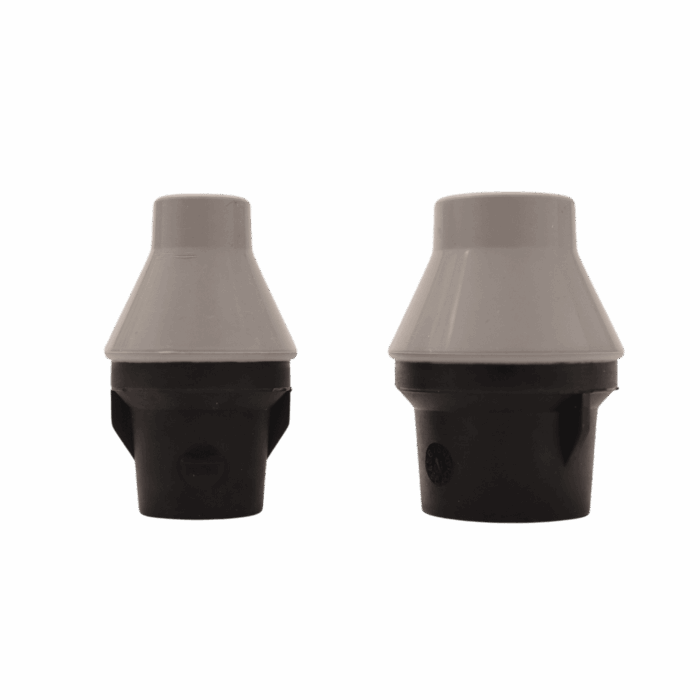

PQT Series
Product Description
Premold cable terminators are specialized connectors used to terminate the ends of electrical cables.
These connectors are highly valued in Power Distribution Systems due to their durability, reliability, and ease of installation.
Technical Specification
| Rated voltage |
15kV ,25kV |
|---|---|
| Product Type Number |
PQT04 ,PQT07 |
| Product Category |
Terminal Connector |
Technical Specification
Special Description:
- Meet requirement of IEEE Std. 48, for riser pole, pad-mount, indoor and outdoor applications.
- High Weather Resistance: EPDM polymer alloy and Heavy-duty pollution application. Designed to withstand harsh environmental conditions, making them suitable for outdoor installations.
- Ease of Installation: Pre-molded design reduces installation time and labor costs.
Table 1 - Electrical Data
| Voltage Rating | 15kV Class | 25kV Class |
| Operating Voltage | ||
| Maximum Phase-to-Ground | 9.5kV | 16kV |
| Withstand Voltage | ||
| AC(dry rms): 60Hz, 60 sec | 50kV | 65kV |
| AC(dry rms): 60Hz. 6 hrs | 45kV | 55kV |
| AC(wet rms): 60Hz.10 sec | 35kV | 60kV |
| DC withstand voltage (dry): 15 minutes | 75kV | 105kV |
| Impulse Voltage Withstand | ||
| BIL and Full Wave Crest | 110kV | 150kV |
| Corona Extinction Level | ||
| < 5pC | 13kV | 21.5kV |
| Type Number | PQT04 | PQT07 |
| Qty of Insulation skirts | 5 | 7 |
Table 2 – Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
EOW220R EOW220F EOW320R EOW320F | Stress Cone | 1 |
| Compression Terminal Lug | 1 | |
| #15 AWG Tin-plated Copper Grounding Wire | 1 | |
| Silicone Lubricant | 1 | |
| Stainless Sheet | 1 | |
| Installation Manual | 1 |
