NTB Series
Product Description

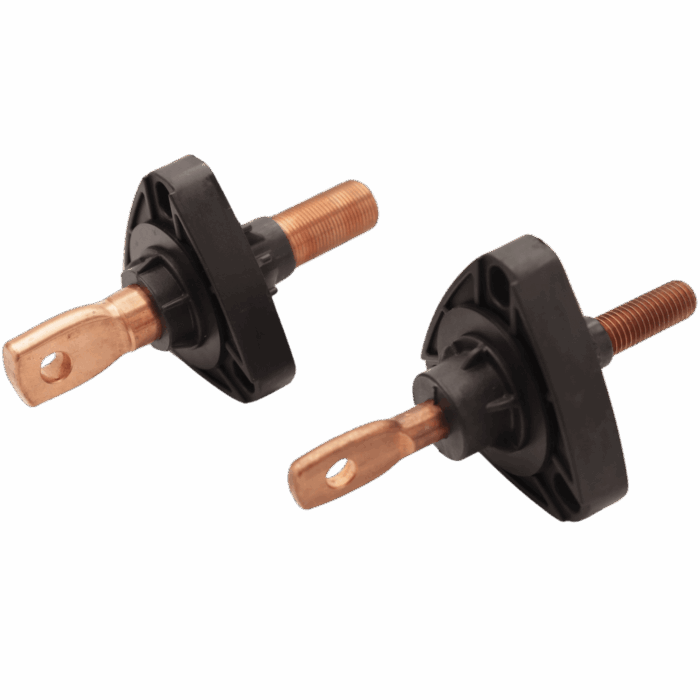

Secondary bushings are designed for external mounting on distribution transformers filled with transformer oil, Envirotemp™ FR3™ fluid, or an approved equivalent and are available with either spade or stud connections.
They are designed for use indoors or inside cubicles of fluid-filled transformers or switchgear.
Technical Specification
| Rated voltage |
1.2kV |
|---|---|
| Product Type Number |
NTB106 ,NTB115 |
| Product Category |
LV bushing |
Technical Specification
Special Description:
- Compliant with IEEE C57.19.01-2017 standard.
- Internal spade/externally threaded stud molded secondary pad mount bushings are available with 5/8” and 1” diameter copper studs.
- Molded with high temperature nylon (HTN) with exceptional mechanical and electrical stability over a wide range of temperature, humidity, and environmental extremes.
- Exhibits good flexibility, allowing it to conform to the tank wall during internal pressure changes.
Table 1 - Electrical Data
| Voltage Ratings | 1.2kV Class | |
| Withstand Voltage | ||
| AC: 60Hz , 60 sec | 10kV | |
| Impulse Voltage Withstand | ||
| BIL and Full Wave Crest | 30kV | |
| Threaded Stud | 5/8" | 1" |
| Continuous Current | 600Amp | 1,500Amp |
| Type Number | NTB106 | NTB115 |
Table 2 – Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
NTB106 NTB115 | Oil Resistant Gasket | 1 |
| Thread Protective Cap | 1 | |
| Installation Manual | 1 |
