BP Series
Product Description

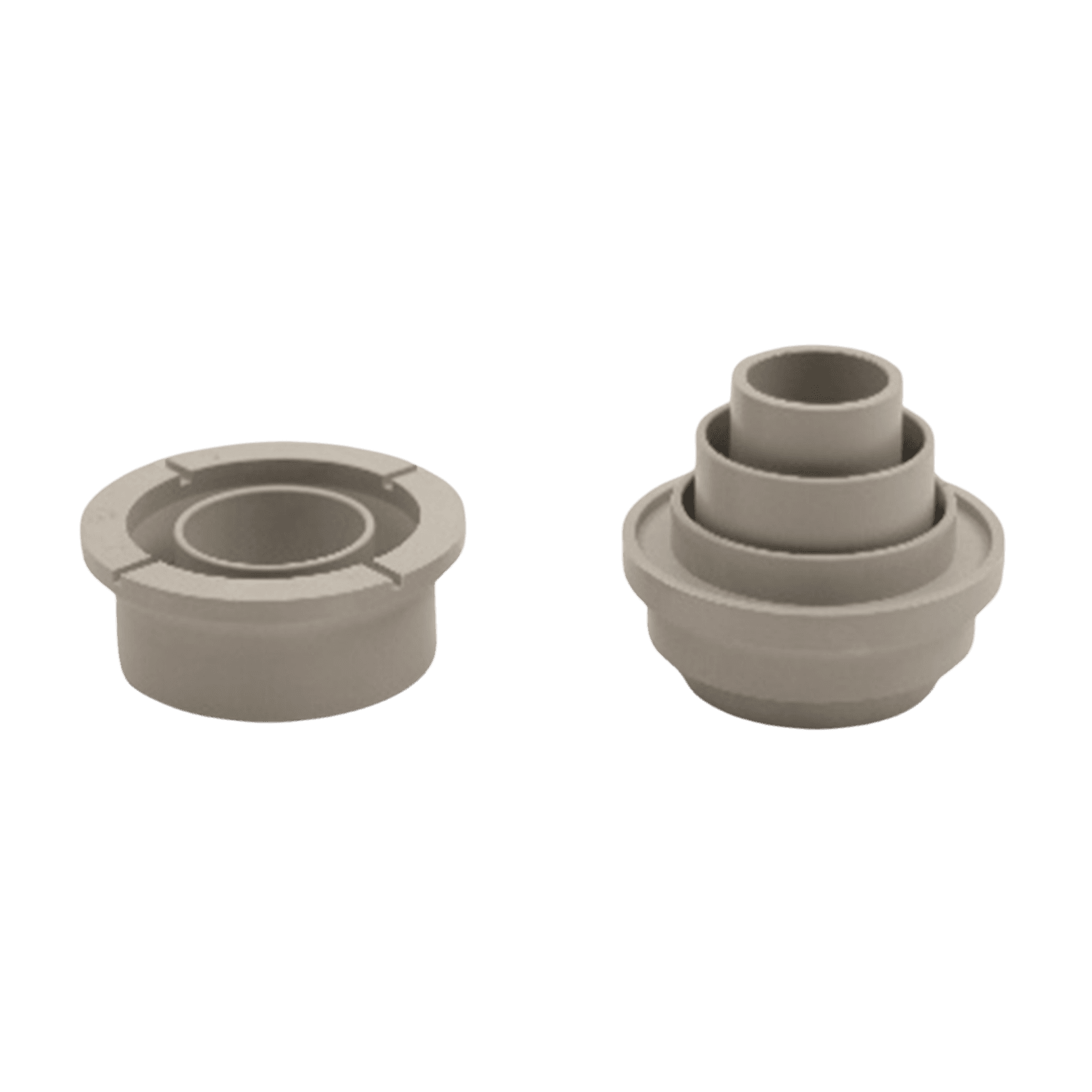

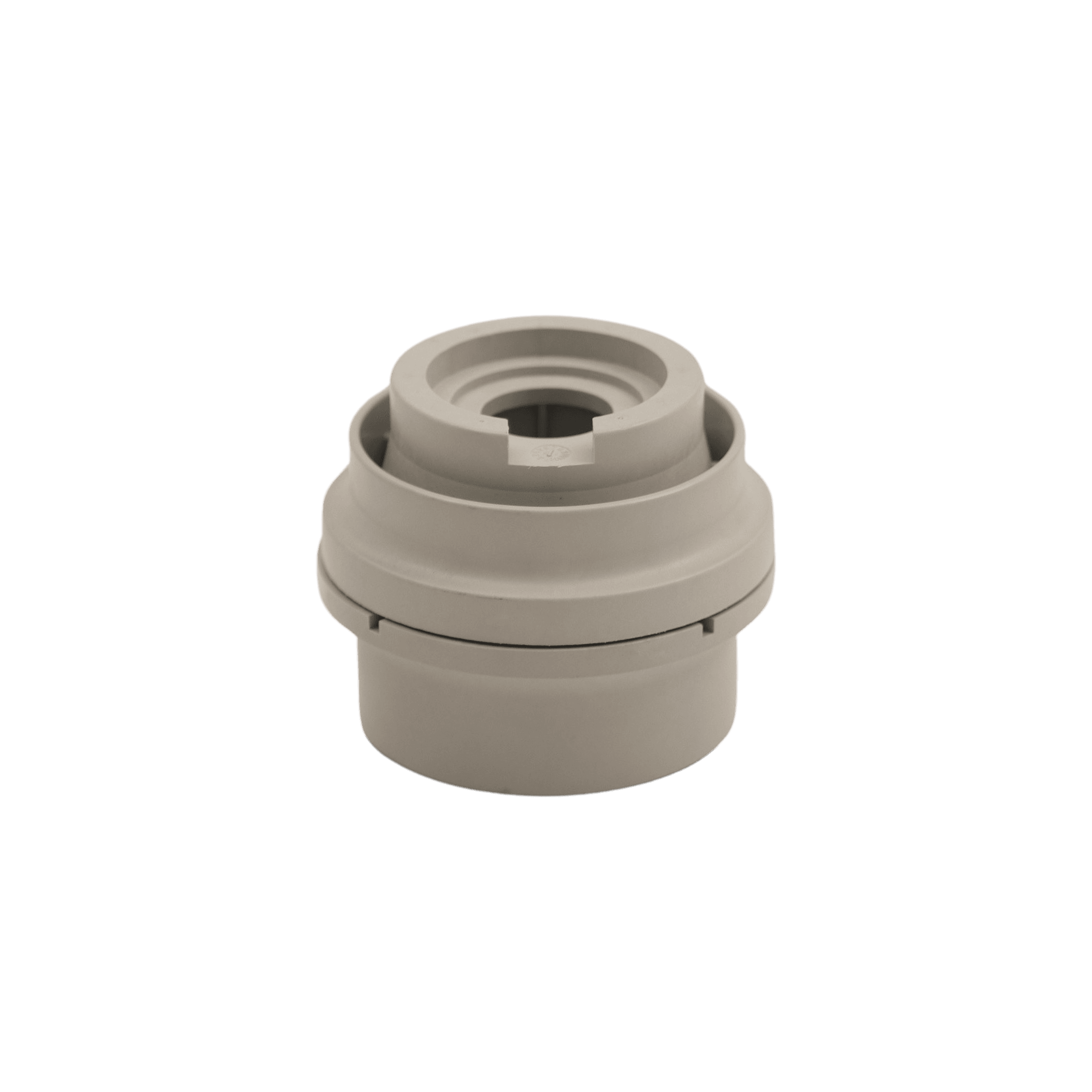

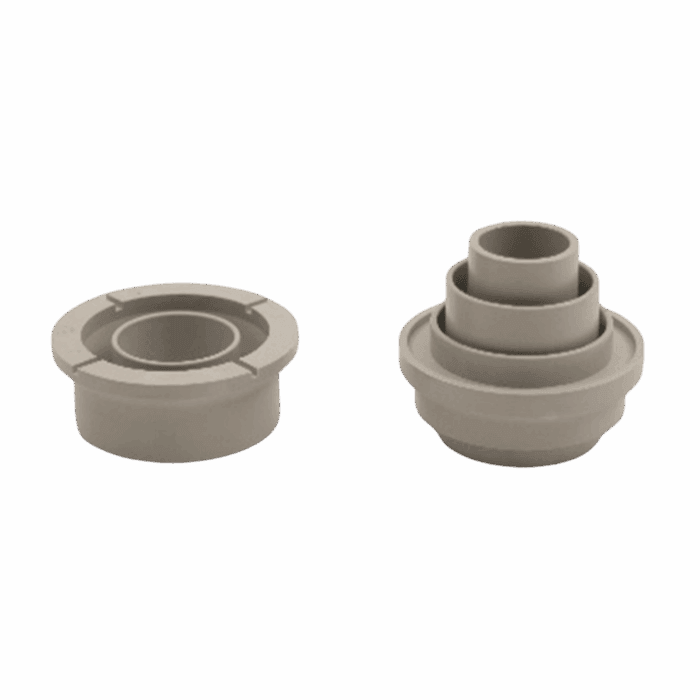

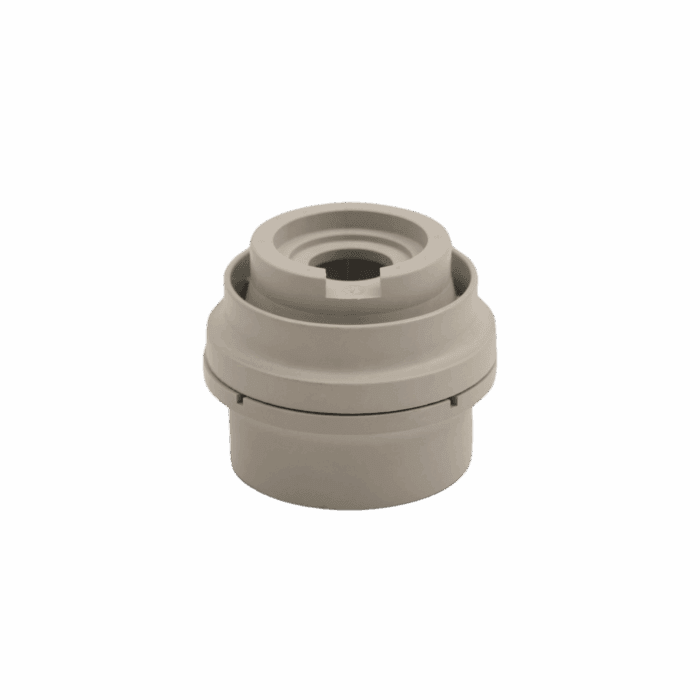

The 1.2kV low voltage bushing features a fully retained gasket with controlled compression, independent of the force on the bushing body caused by cable loading.
Technical Specification
| Rated voltage |
1.2kV |
|---|---|
| Product Type Number |
BP95 |
| Product Category |
Spade Connector type |
Technical Specification
Special Description:
- Compliant with ANSI / IEEE Std. C57.19.01-2017 standards.
- The UV-shielded gasket ensures long-term outdoor durability without aging or degradation.
- Made from high-impact engineered material, providing excellent shock resistance, vibration resistance, and weatherproofing.
- The bushing directly contacts the tank surface, transferring cantilever loads to the tank wall to prevent leakage caused by heavy cable loads.
Table - Electrical Data
| Voltage Rating | 1.2kV Class |
| Withstand Voltage | |
| AC: 60Hz , 60 sec | 10kV |
| Impulse Voltage Withstand | |
| BIL and Full Wave Crest | 30kV |
| Rated Current | |
| 3/4" Copper Rod | 1000Amp |
| 1" Copper Rod | 1250Amp |
| 1 1/4" brass rod | 1430Amp |
| Type Number | BP95 |
Caution. Currently, we only provide engineering plastic (PBT) insulators.
