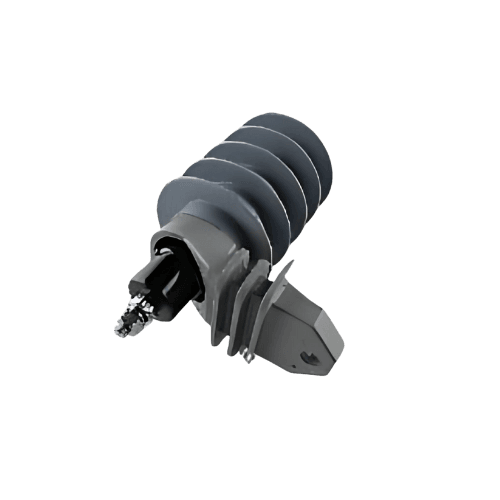

69P Series
Product Description
A protection device designed to limit overvoltage transient waves caused by a temporary current discharge.
Technical Specification
Product type number：69PN (N will determine by the voltage and replace it with 09,10,12,15,18)
| Rated voltage |
9kV ,10kV ,12kV ,15kV ,18kV |
|---|---|
| Product Type Number |
69P09 ,69P10 ,69P12 ,69P15 ,69P18 |
| Product Category |
Polymer surge arrester |
Technical Specification
Special Description:
- Meets IEC 60099-4 and IEEE C62.11 standards.
- A non-fragmenting design, reducing equipment damage risk and enhancing safety.
- Provides excellent weather resistance and insulation, enhancing product longevity and safety.
Table 1 - Electrical Data
| Rated voltage (kV rms) | 9kV | 10kV | 12kV | 15kV | 18kV |
Continuous Voltage | 7.65 | 8.4 | 10.2 | 12.7 | 15.3 |
| Minimum Climbing Distance (in/mm) | 14.26/362 | 14.26/362 | 16.54/420 | 25.59/650 | 25.59/650 |
| Housing Insulation Withstand Voltage | |||||
| Lighting Impulse 1.2/50 µs kV Crest | 110 | 110 | 125 | 150 | 150 |
| Wet Power Frequency (kV rms) | 24 | 24 | 27 | 36 | 36 |
| Dry POWER Frequency (kV rms) | 27 | 27 | 31 | 42 | 42 |
| MAX. Discharge Voltage (kV-CREST) | |||||
| FOW | 30.6 | 33.6 | 40.8 | 51 | 61.2 |
| 08/20μs Current Impulse | |||||
| 1.5 kA | 21.9 | 24.9 | 28.8 | 36.0 | 43.4 |
| 3.0 kA | 23.2 | 26.6 | 30.9 | 38.5 | 46.3 |
| 5.0 kA | 24.5 | 28.2 | 32.7 | 40.8 | 49.0 |
| 10 kA | 26.7 | 30.7 | 35.6 | 44.5 | 53.4 |
| 20 kA | 30.0 | 34.5 | 40.4 | 50.6 | 60.7 |
| 40 kA | 34.7 | 39.9 | 47.6 | 59.6 | 70.5 |
| Switching Surge | |||||
| 21.2 | 23.7 | 26.3 | 33.9 | 40.5 | |
Table 2 - Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
| 69PN | L-shaped Fix Holder | 1 |
| Flat Fix Holder | 1 | |
| Carriage Bolt | 2 | |
| 22mm2 Copper Wire (51cm) w/ Compression Connector | 1 | |
| Installation Instruction Sheet | 1 |
Note:

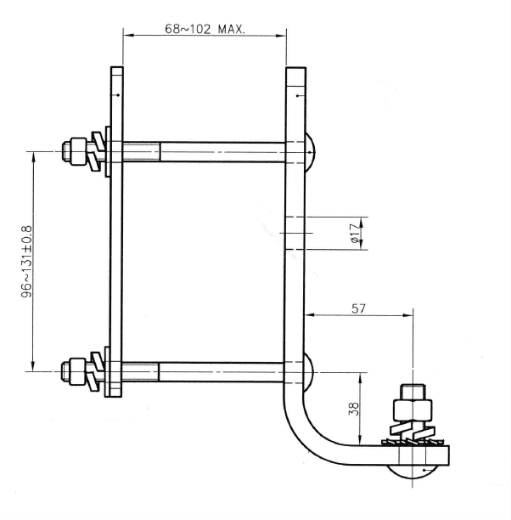

Image 1. Fix Holder Set (L-shaped Holder, Flat Holder and Carriage bolts)
