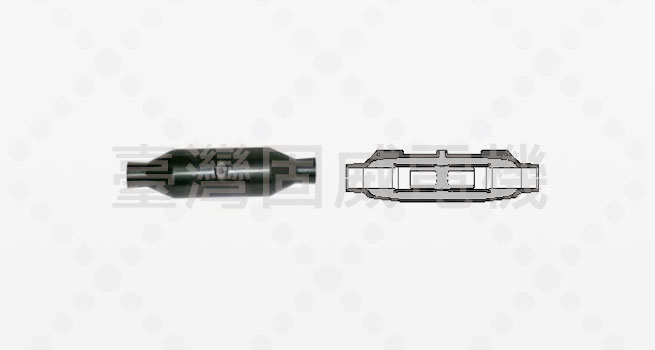

Goodwell Cable Splices are fully insulated, shielded and sealed for direct buried, vault, applications. Cable Splice uses a single piece housing that is sized to accommodate a specific range of cable and suited for straight splicing of the same or similar cable, production tests include 100% tests of all dielectric tests as per IEEE Std 404.
Technical Data
| Voltage Rating | 15kV Class | 25kV Class | |
|---|---|---|---|
| Rated Voltage (Phase-Phase) Max. | 14.4kV | 26.3kV | |
| Rated Voltage (Phase-Ground) Max. | 8.7kV | 14.4kV | |
| BIL Impulse Voltage Withstand | 1.2×50μS Full Wave, Peak | 110kV | 150kV |
| Corona Extinction Level | @3pC Sensitivity kV/pC | 13/3 | 22/3 |
| Withstand Voltage | AC: 50Hz or 60Hz , 60 sec | 35kV | 52kV |
| DC: 15 minutes | 70kV | 100kV | |
| Withstand Voltage (60Hz , rms) |
Continuous for 5 minutes | 39kV | 65kV |
| Continuous for 5 hours | 31kV | 50kV | |
| Continuous Current | 600Amp | 600Amp | |
| Symmetrical Momentary Current | 20kA sym. for 10 cycles (0.17s) | ||
| Type Number (N: size code 1~4) | DCS16N | DCS26N | |
