Features
- EPDM polymer alloy / Heavy duty pollution application.

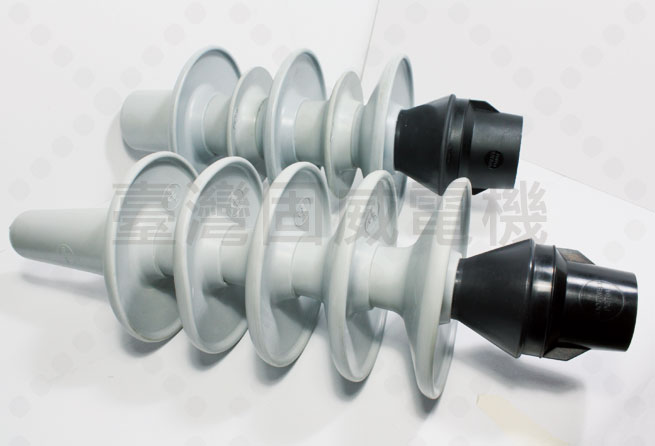

- Each Outdoor Cable Terminators Kits consists one (1) Stress Cone, 4 to 9 pieces external leakage Insulation Skirt, one (1) non-pressure Seal Tape and one (1) full current rated compression Sleeve for conductors 22 mm2 up to 120 mm2 (option).
- Designed and rated per IEEE Standard 48 for riser pole, pad-mount, indoor and outdoor applications.
Technical Data
| Type | Voltage Class | Max. Volts to Ground | AC Withstand 1 min. dry rms | AC Withstand 10 sec. wet rms | AC Withstand 6 hrs. dry rms |
|---|---|---|---|---|---|
| PQT15 | 15kV | 9.5kV | 50kV | 45kV | 35kV |
| Note: Indoor Terminations are not subject to wet tests. | |||||
| Type | Cyclic Aging Dry Rmss | Max. RIV kV/μV | Corona Extinction | BIL Dry Crest | DC Dry 15 min. avg |
|---|---|---|---|---|---|
| PQT15 | 26kV | 9.5/50 | 13kV | 110kV | 75kV |
| Note: Indoor Terminations are not subject to wet tests. | |||||
Types & Selections
| For 15kV XLPE Cable Conductors | Type Number | Number of Skirts | Creepage Distance (mm) | Strike Distance (mm) | Insulation Diameter (mm) |
|---|---|---|---|---|---|
| 22 mm2 | PQT1501 | 4 | 420 | 219 | 14.7-17.2 |
| 30,38 mm2 | PQT1502 | 4 | 420 | 219 | 17.0-19.9 |
| 60,80 mm2 | PQT1503 | 4 | 420 | 219 | 19.6-23.0 |
| 100,120 mm2 | PQT1504 | 4 | 420 | 219 | 22.6-26.9 |
