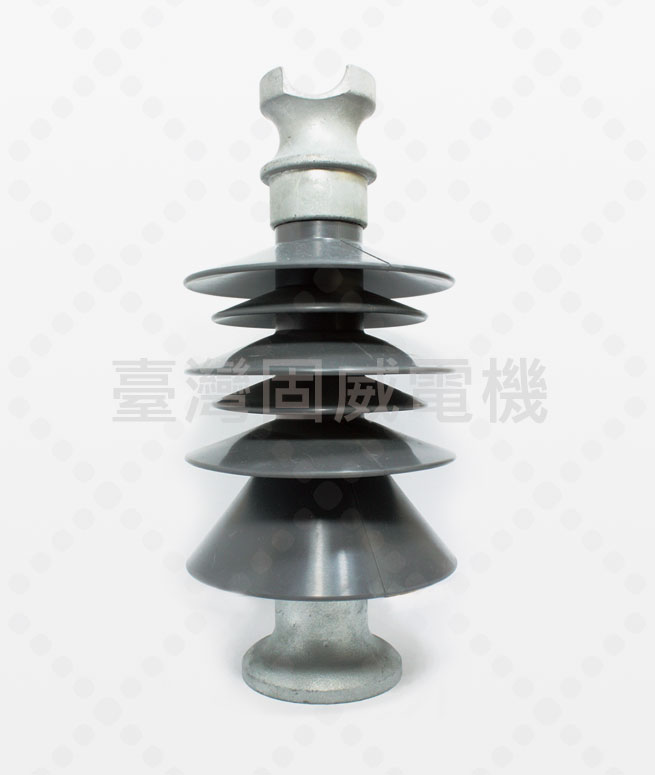

Features
- Fiberglass rod is made of highest grade material filled with electrical grade glass fiber.
- Upper and lower fittings are made of Ductile-Iron with hot-dipped galvanized coating and mechanically crimped directly to the fiberglass rod.
- Weathersheds are made of highest quality Silicone Rubber and are directly molded onto the fiberglass rod and metal fittings, totally weathering sealing and ensure lifetime operations.
Long term weathering tests on complete insulators meetings IEEE C62.11 standards.
Technical Data
| Type Numbers and Ratings | 15kV Class | 25kV Class |
|---|---|---|
| Color | Dark Gray | Dark Gray |
| Nominal Voltage | 15kV | 25kV |
| Max. Voltage L – L | 15kV | 25kV |
| Leakage Distance | 530 ± 5mm | 708 ± 5mm |
| Dry-Arc Distance | 220 ± 3mm | 272 ± 3mm |
| Min. Pin Height | 268mm | 310mm |
| Cantilever Strength Pounds (KN) | 2800/12 | 2800/12 |
| Low Frequency Dry Flashover | 70kV | 100kV |
| Low Frequency Wet Flashover | 50kV | 70kV |
| Critical Impulse Flashover, Positive | 120kV | 160kV |
| Max. RIV at 1000 kHz (Test Voltage) | 100μV (22kV) | 100μV (22kV) |
| Type Number | CLP15 | CLP25 |
