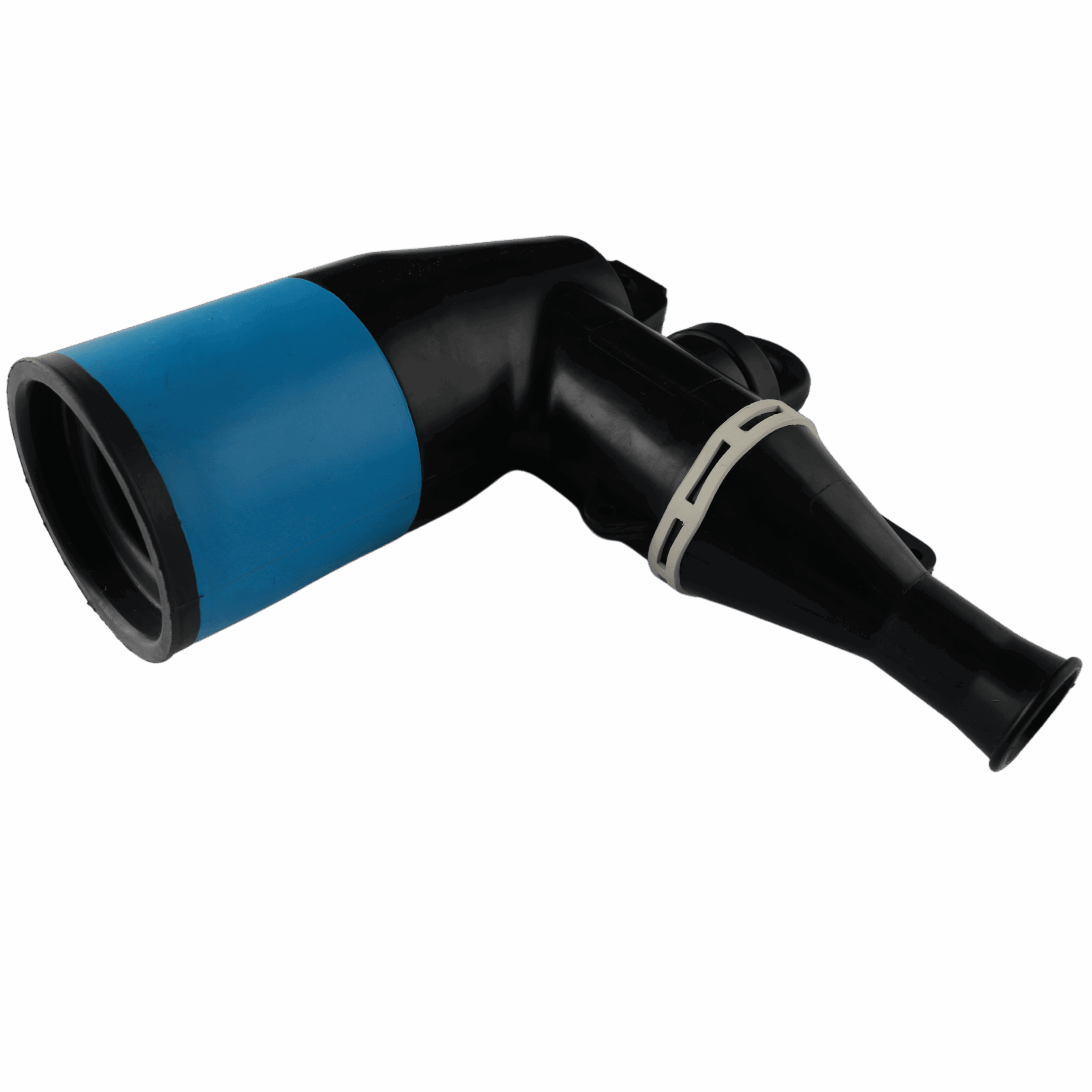

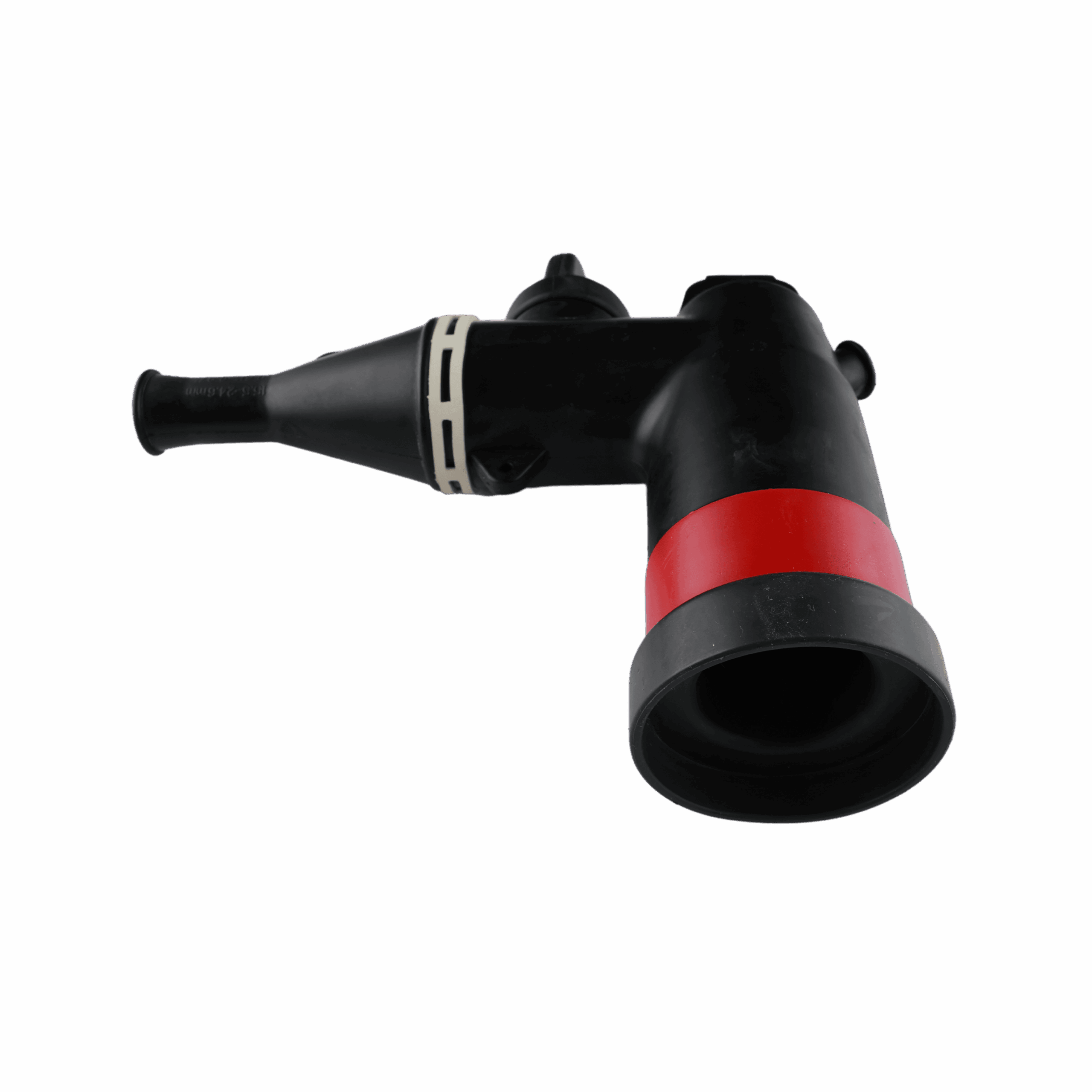

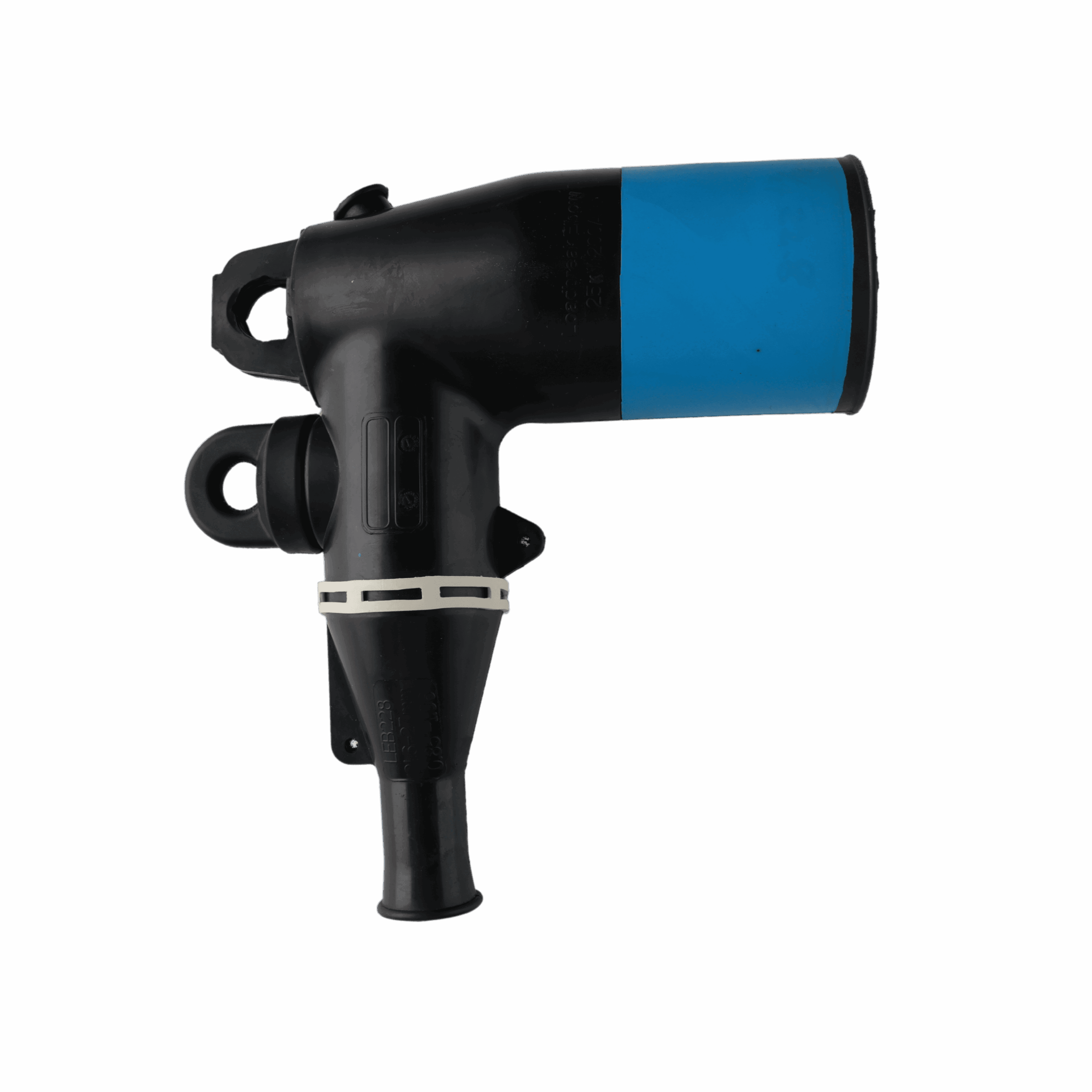

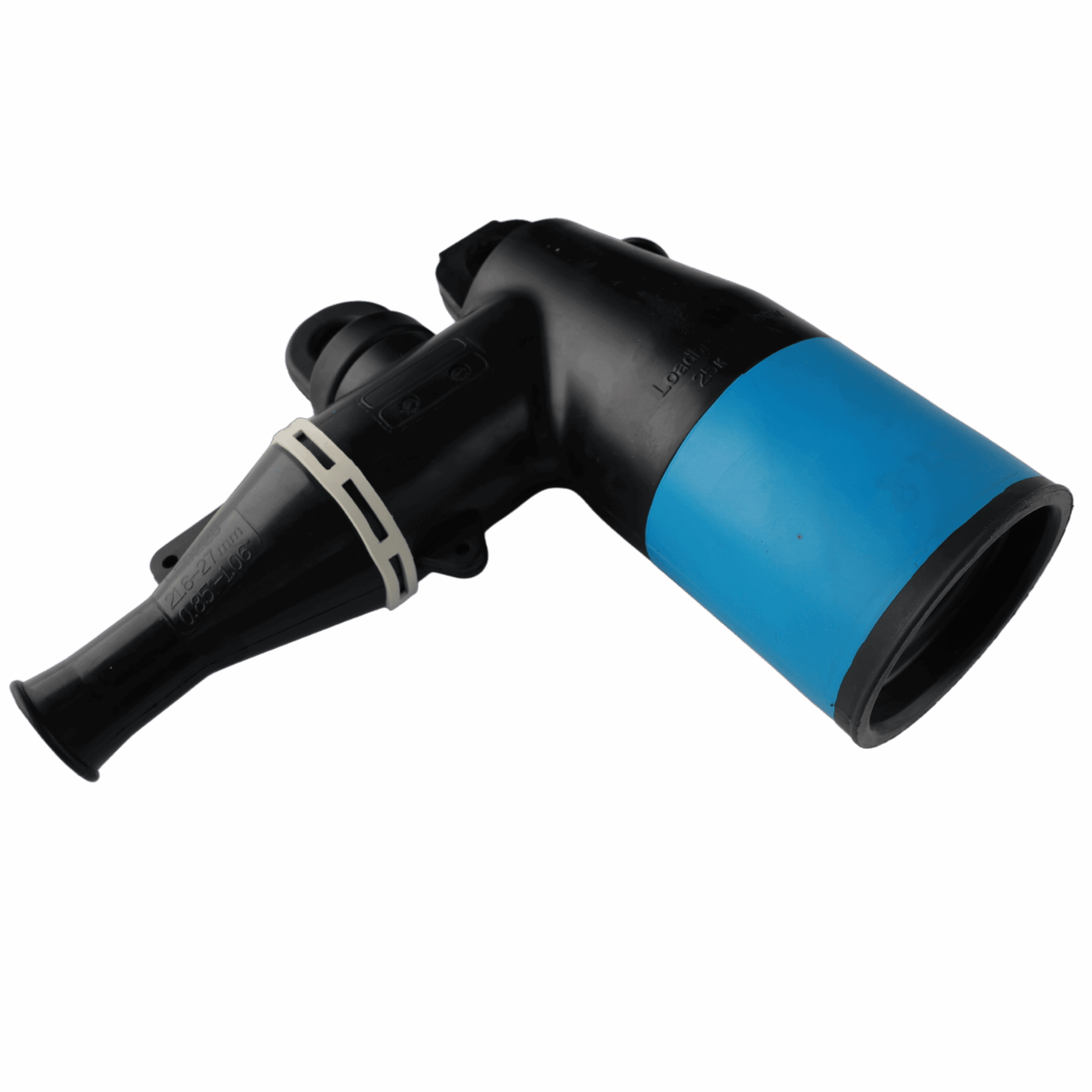

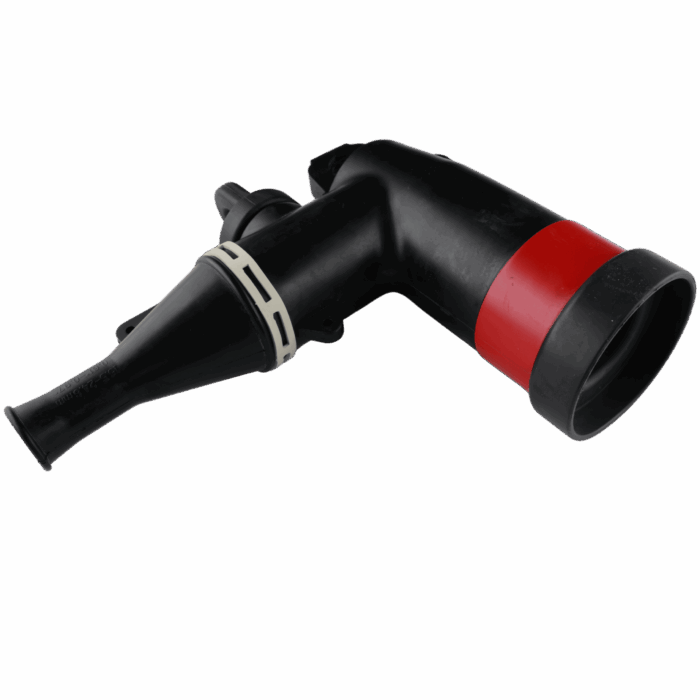

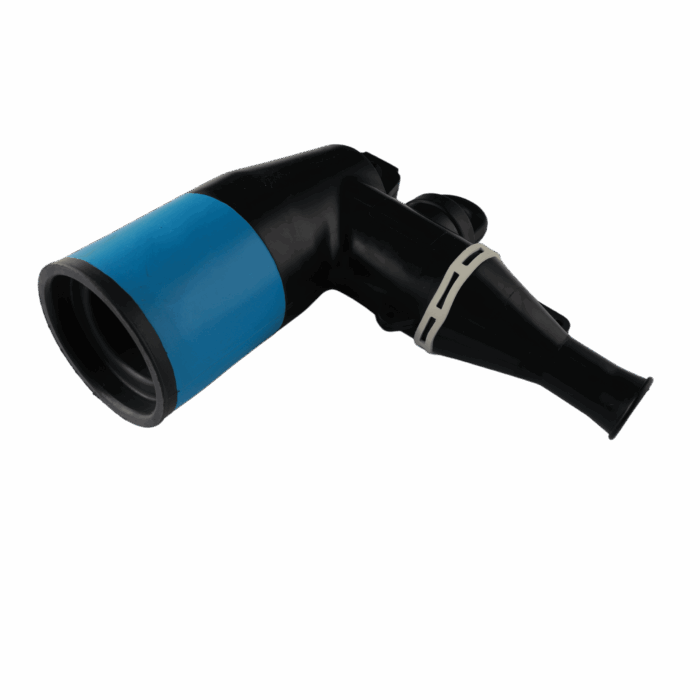

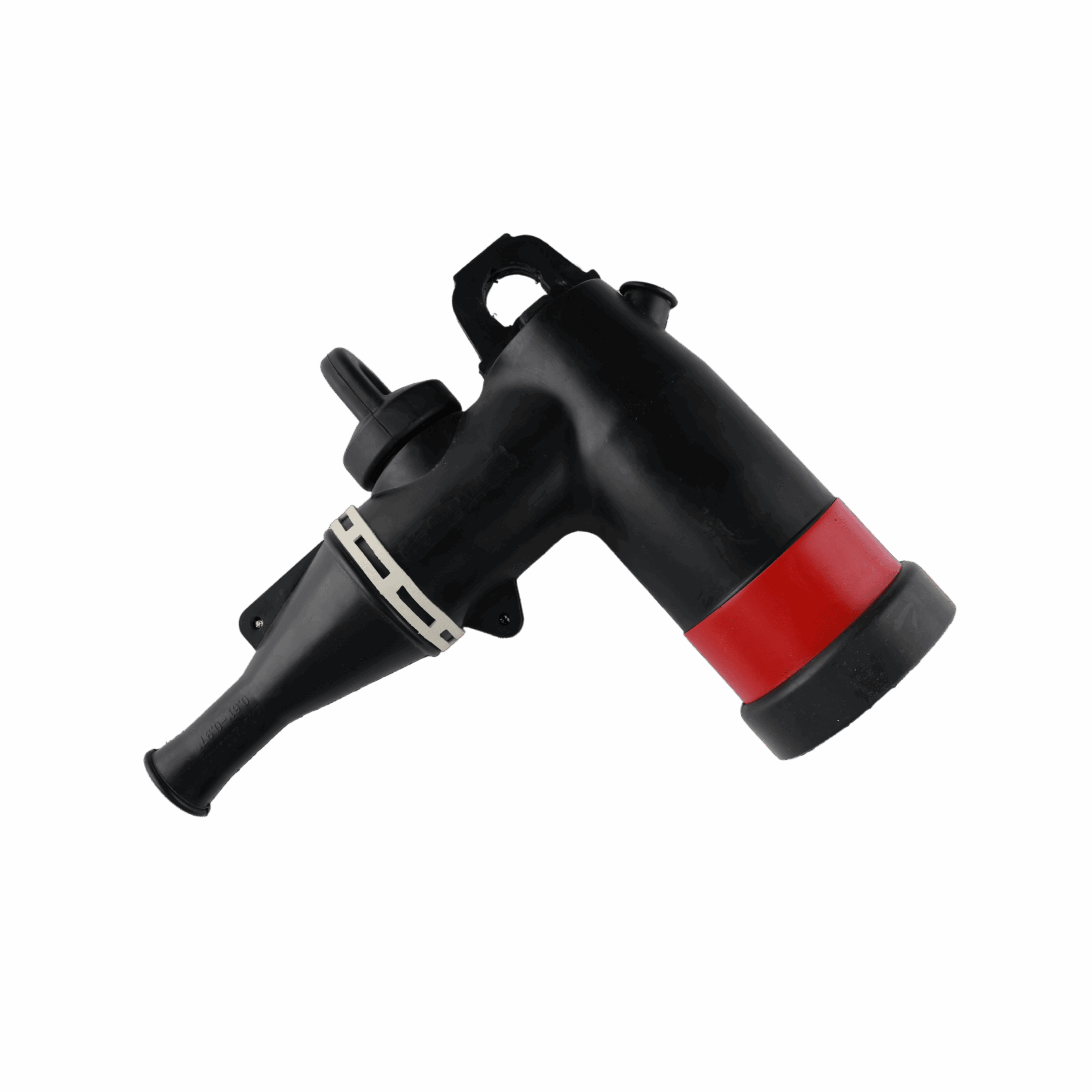

LEB Series
Product Description

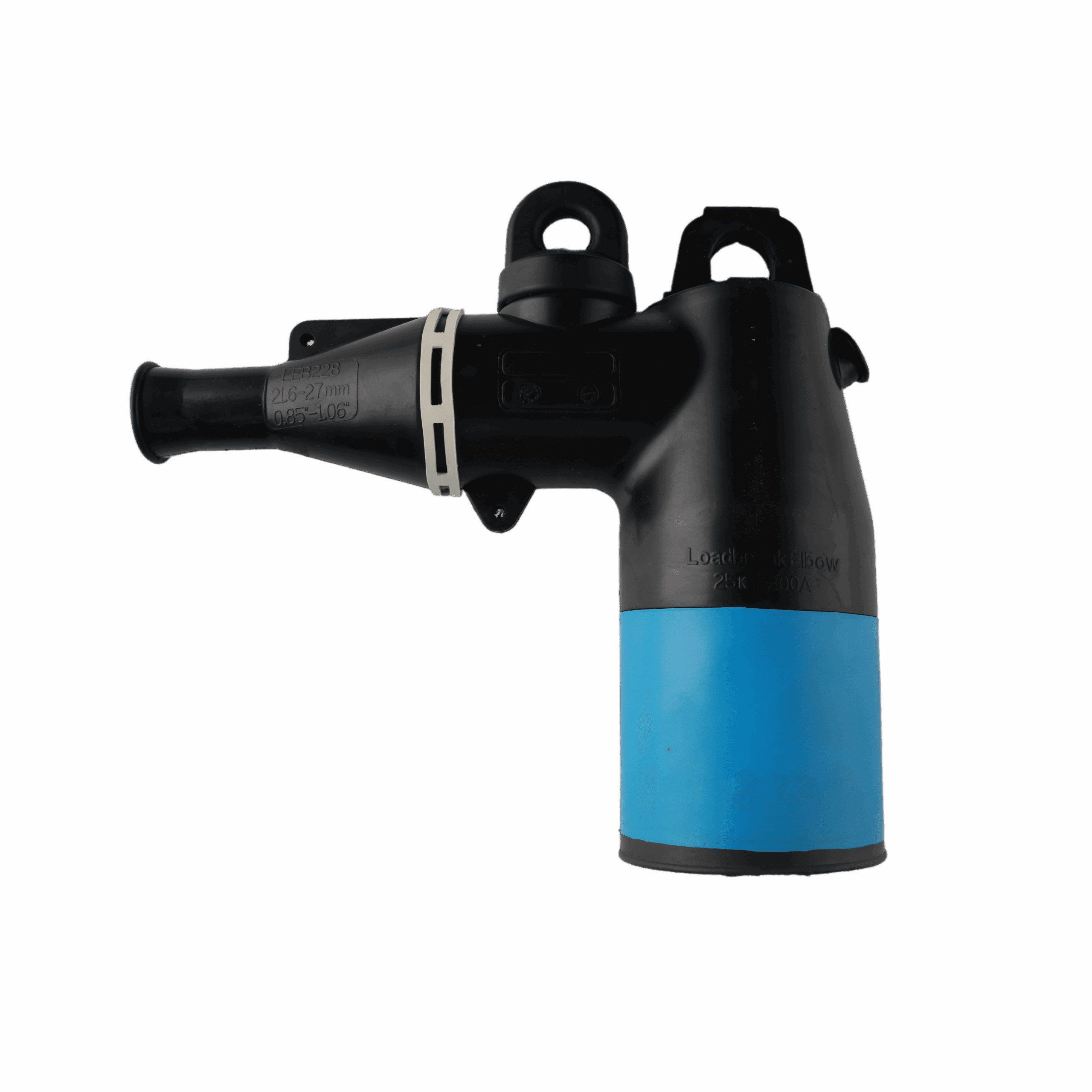

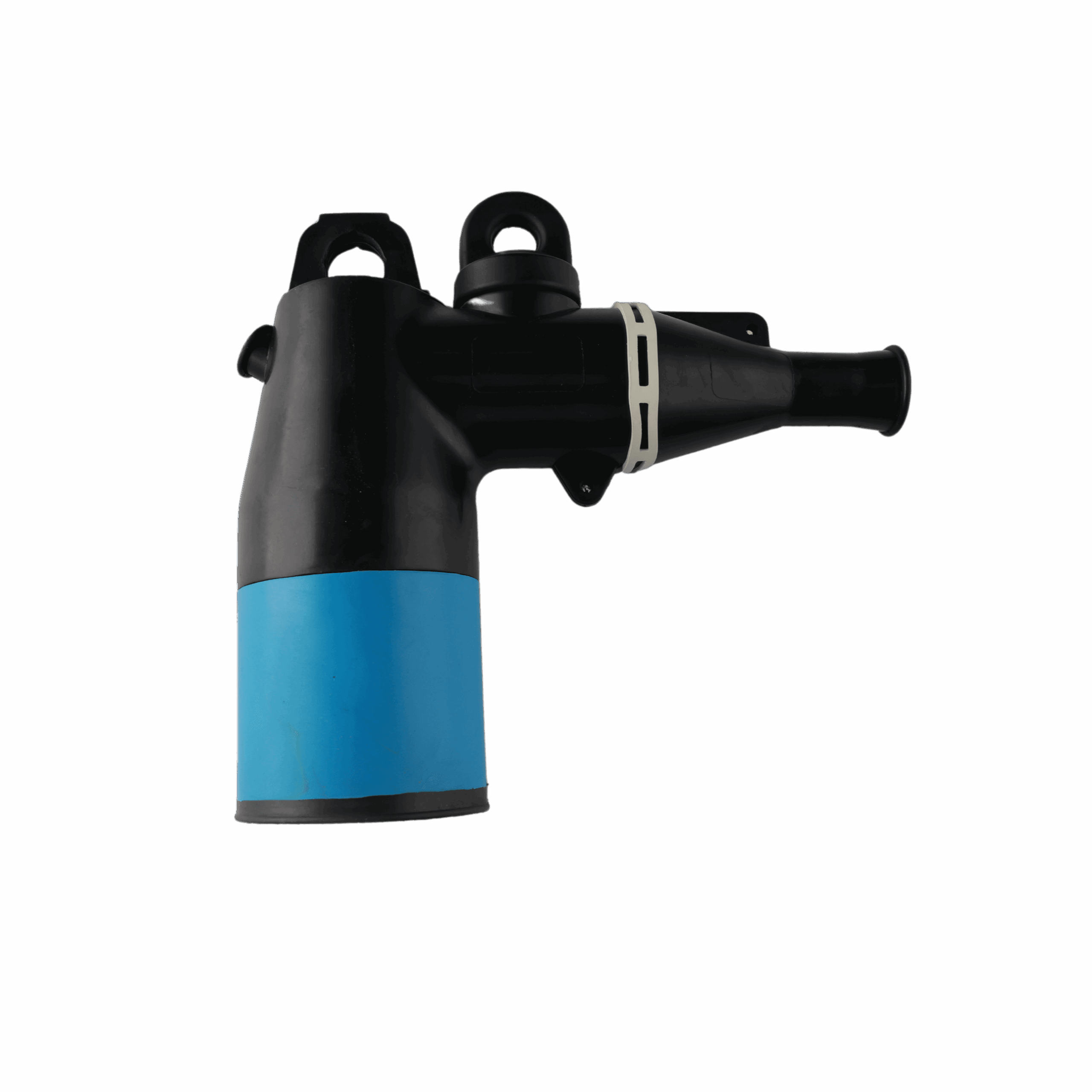

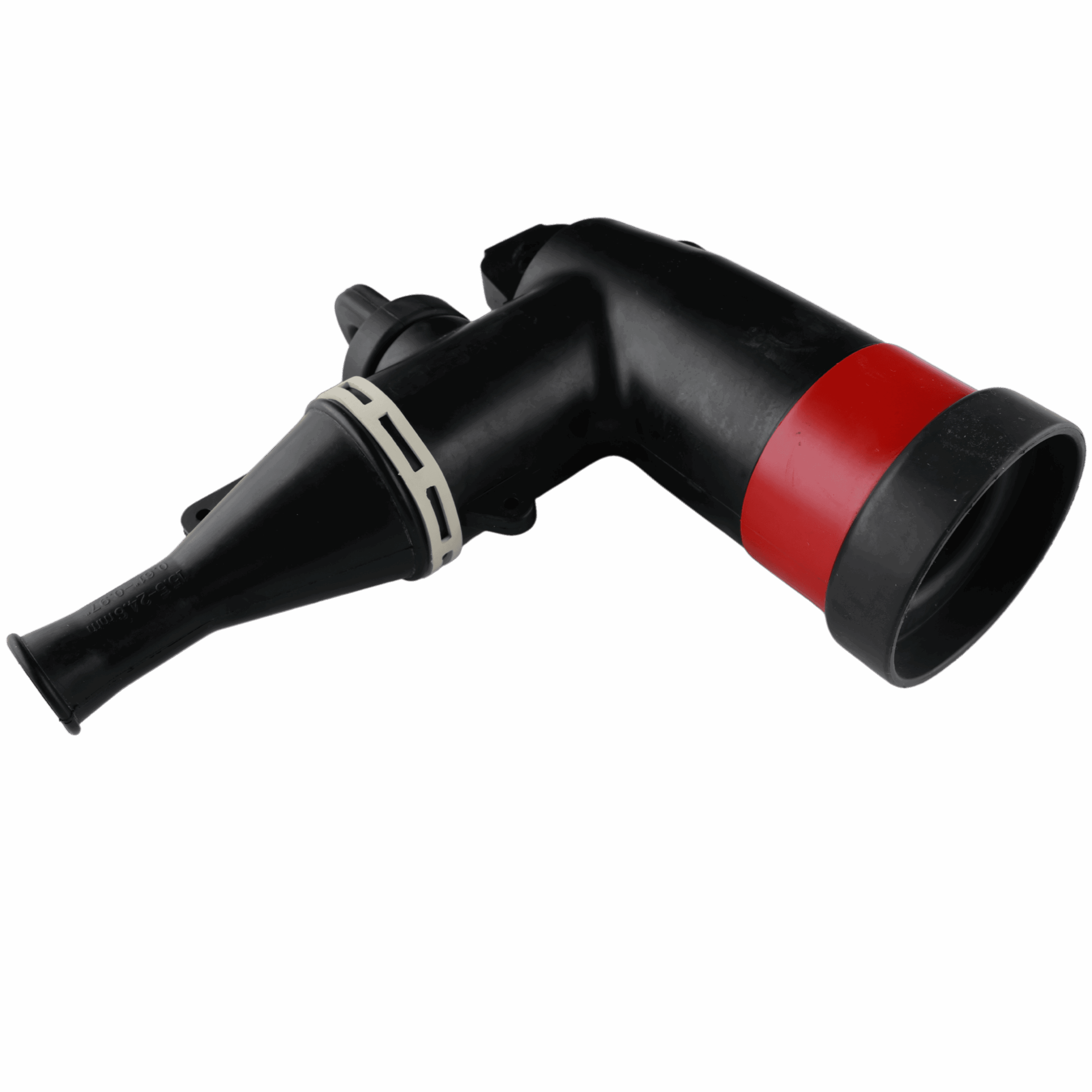

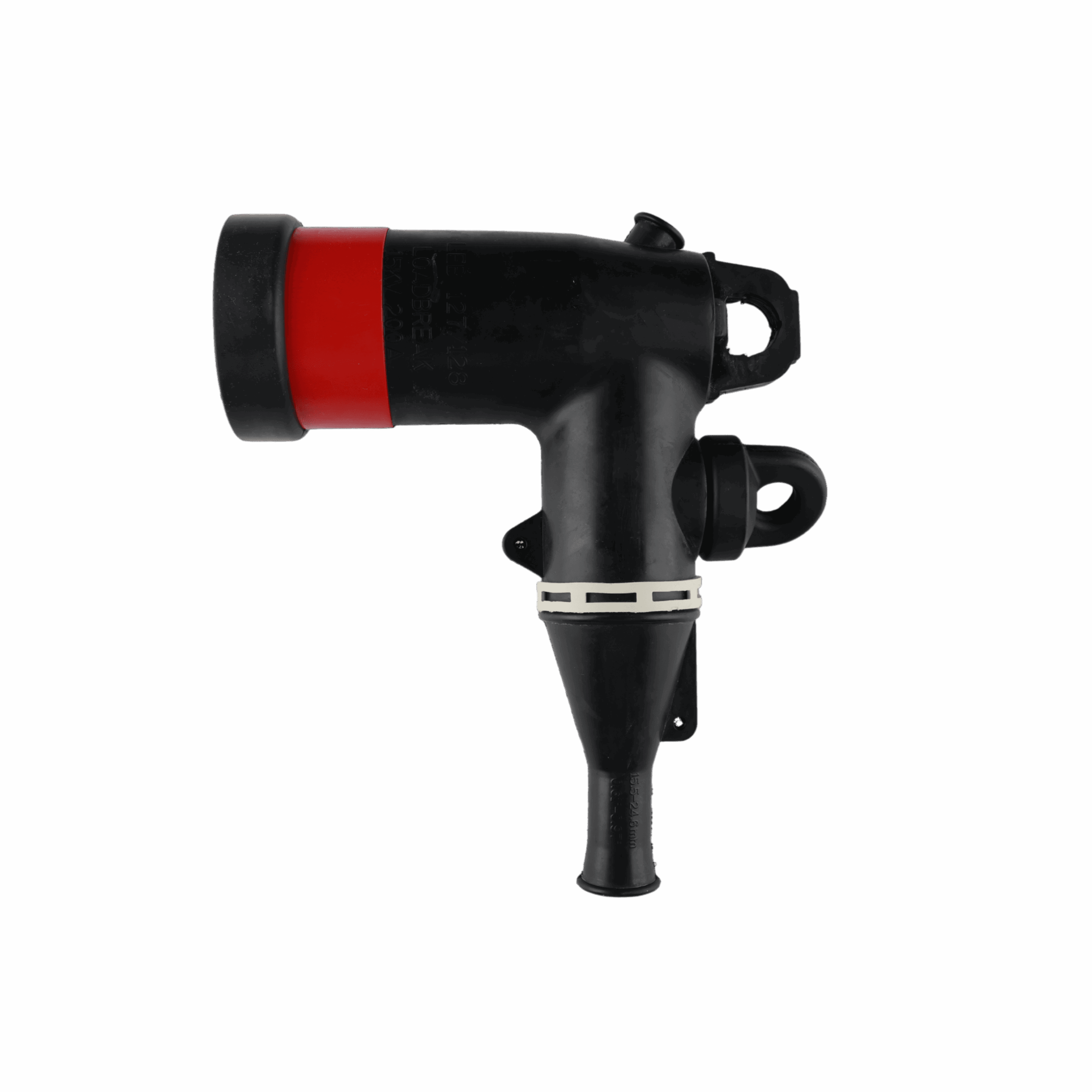

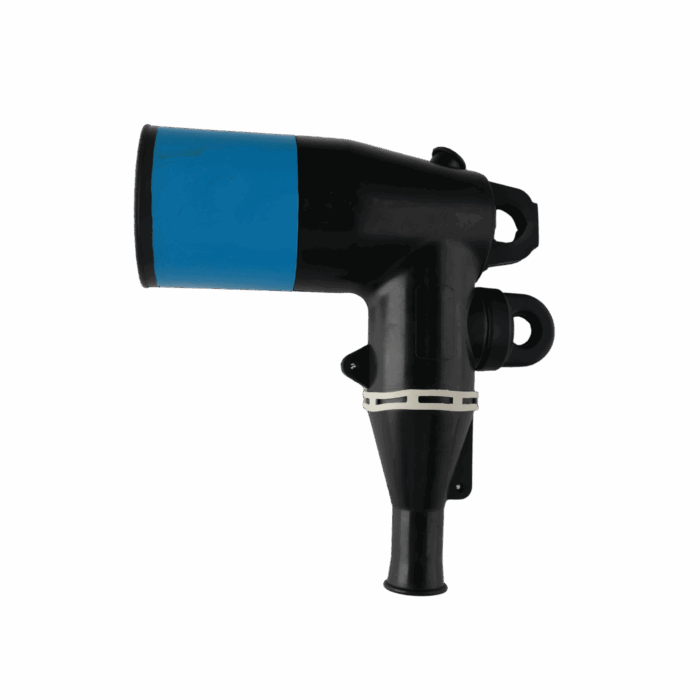

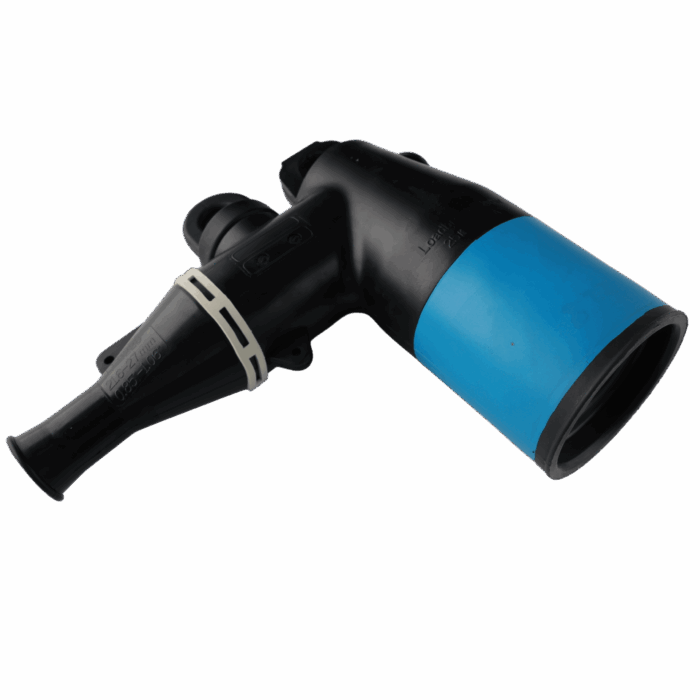

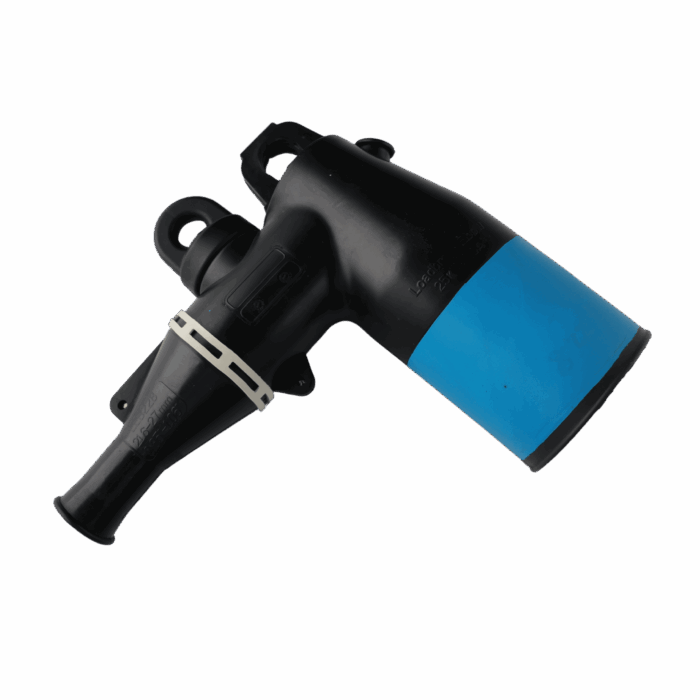

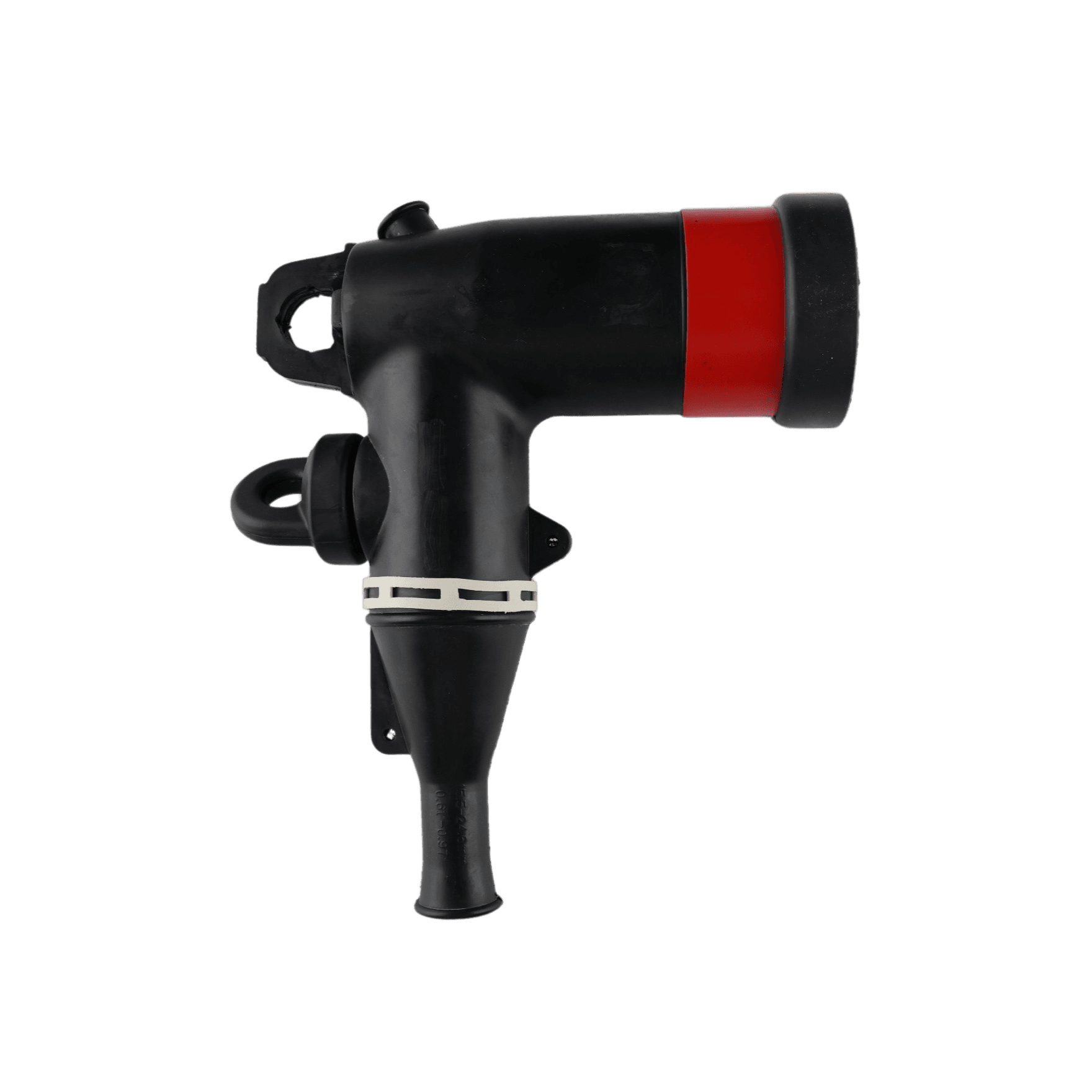

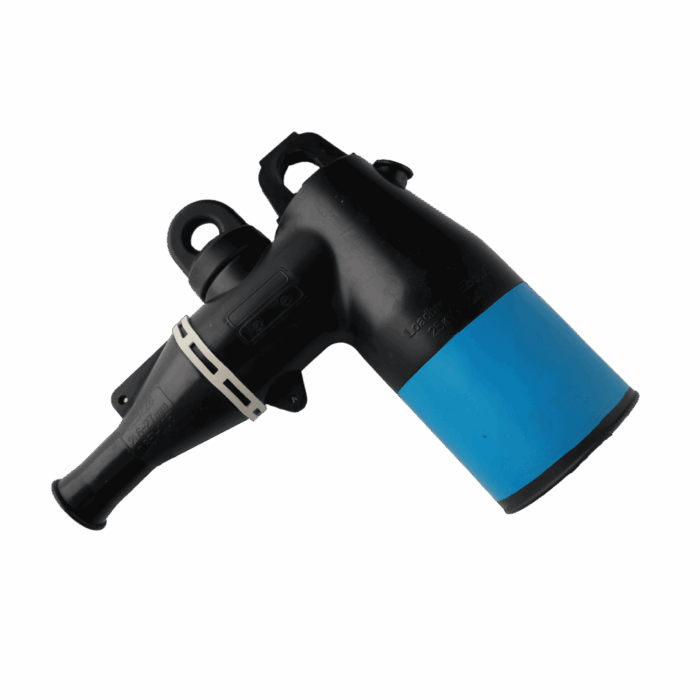

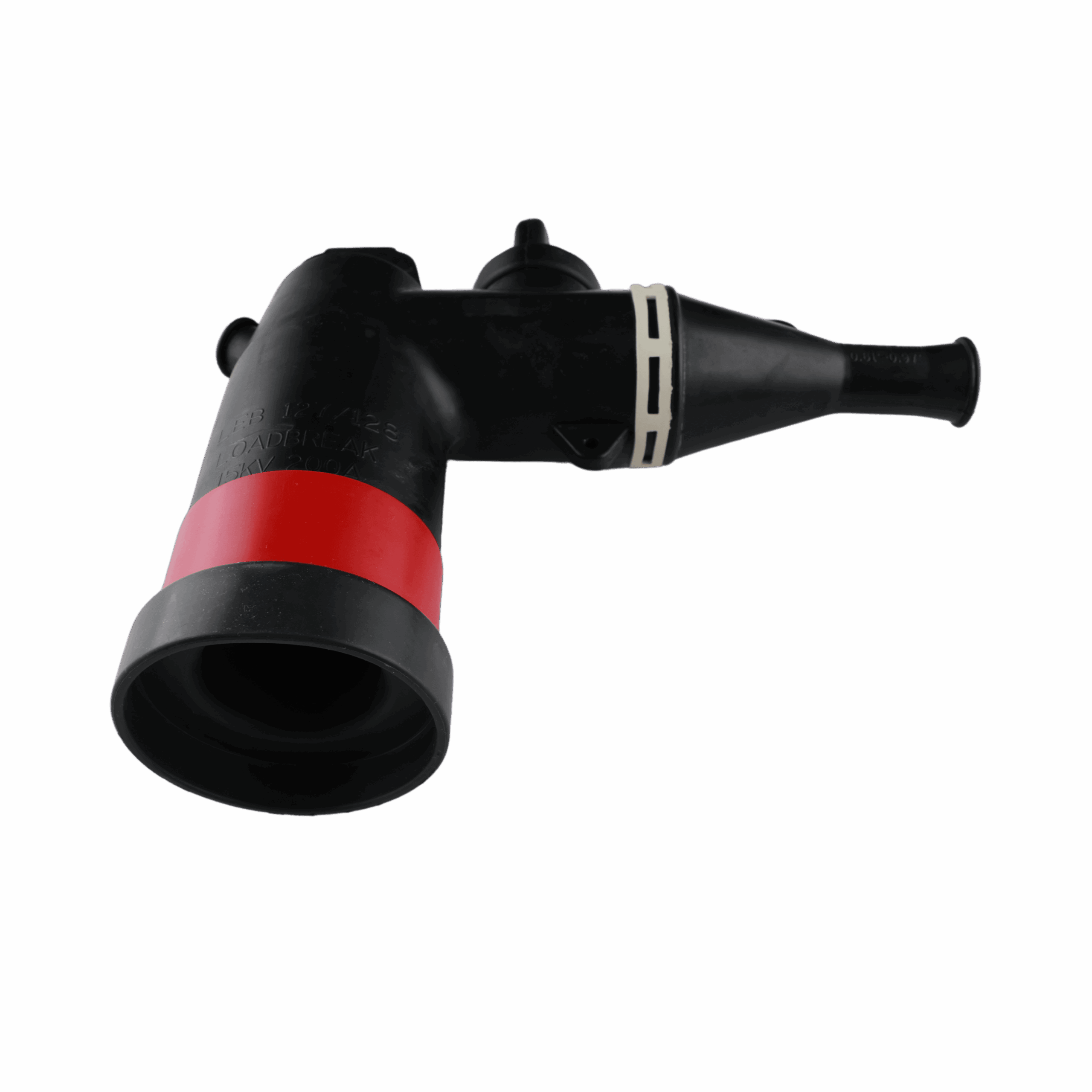

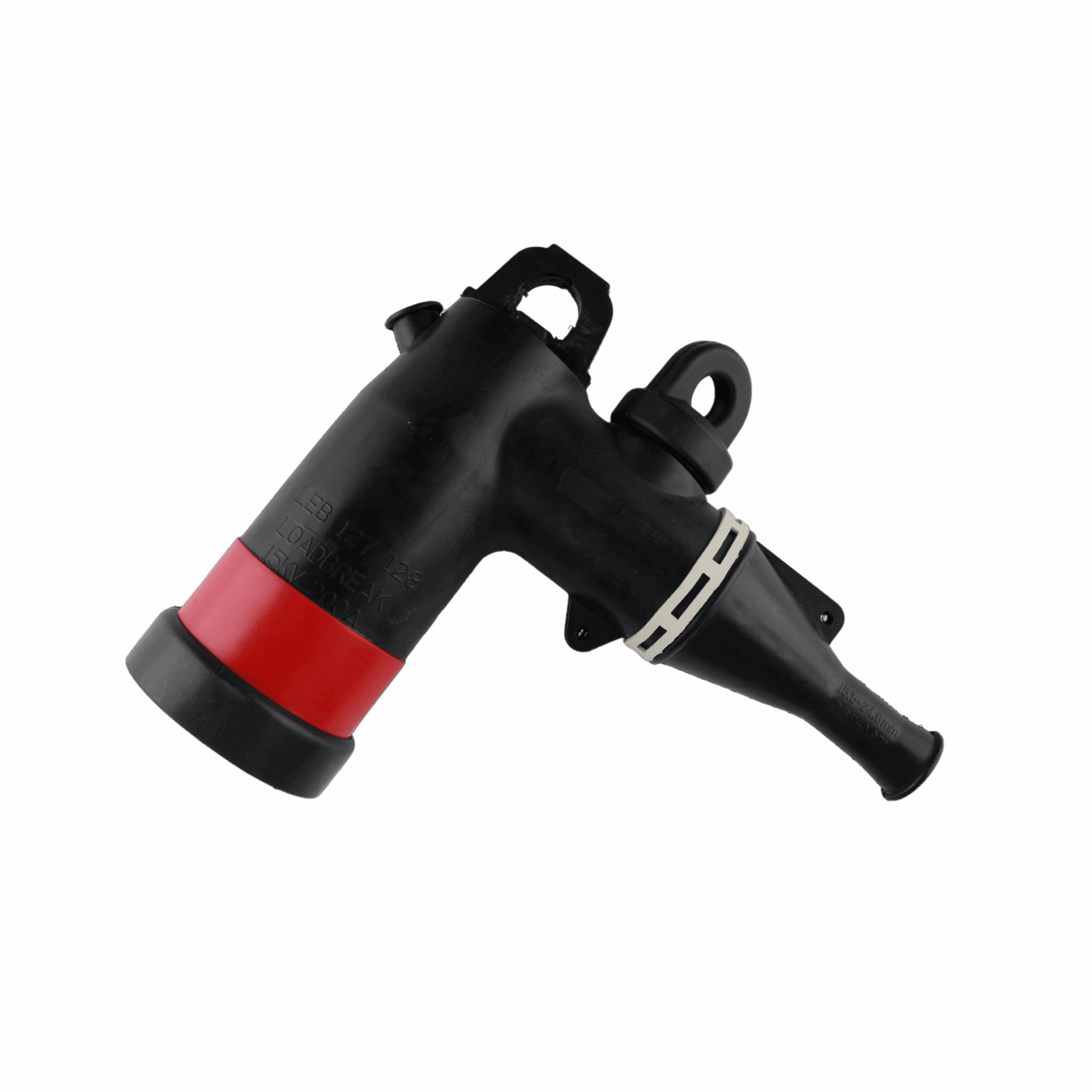

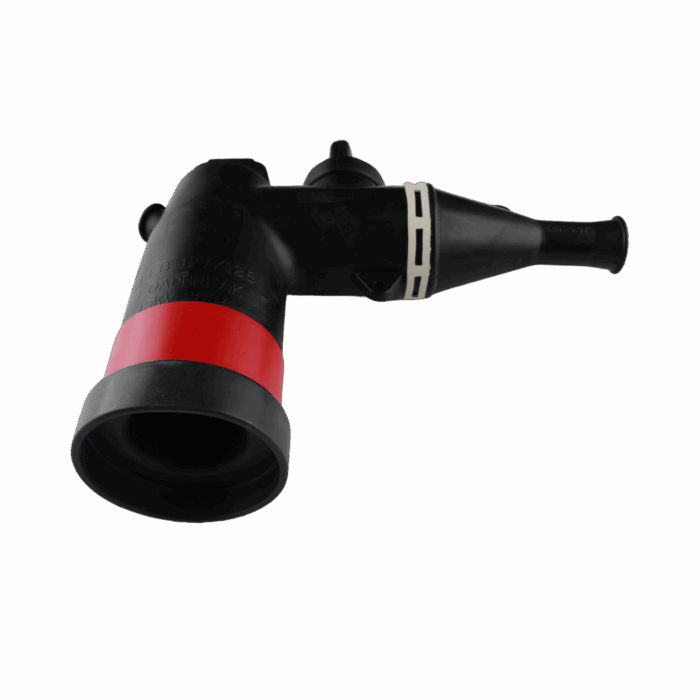

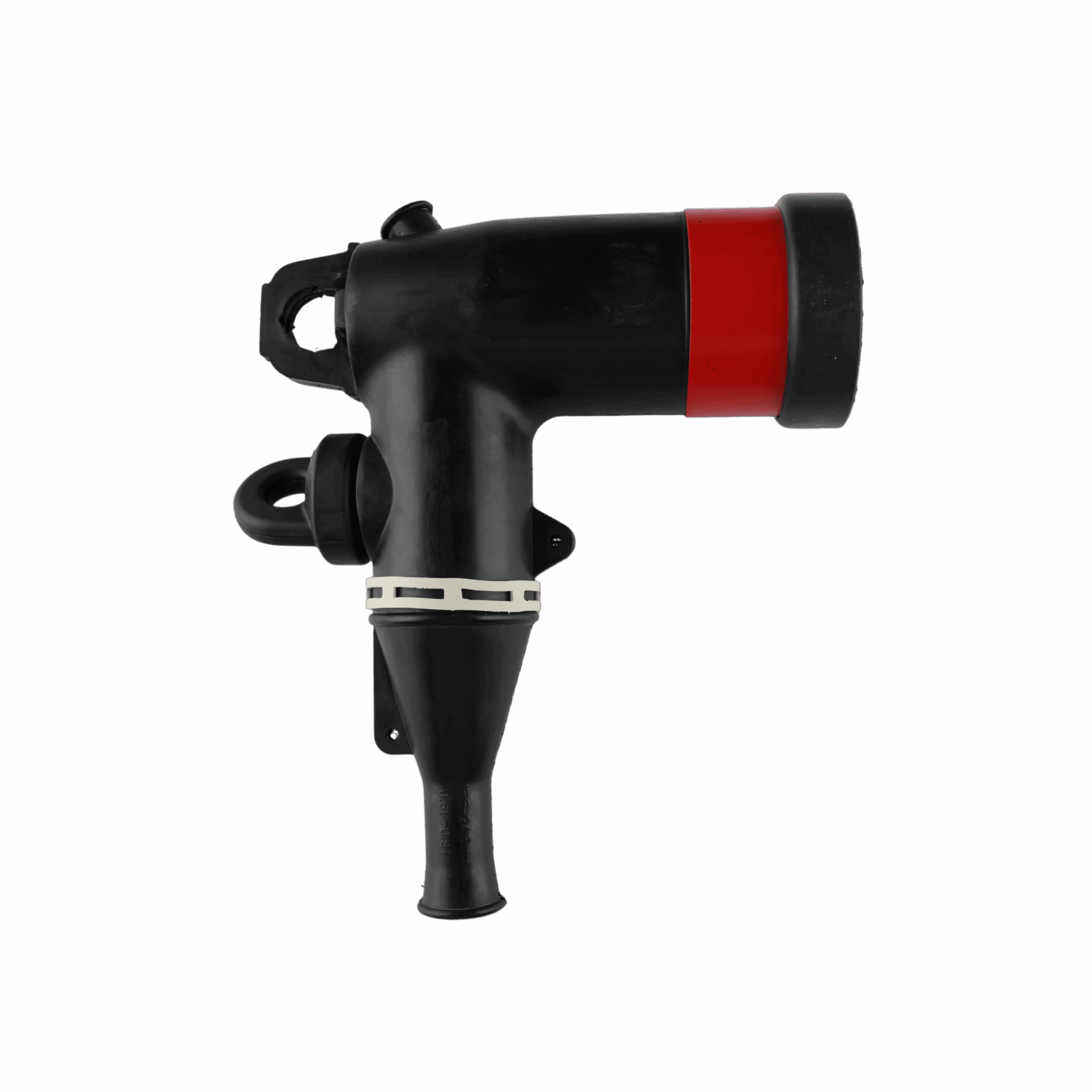

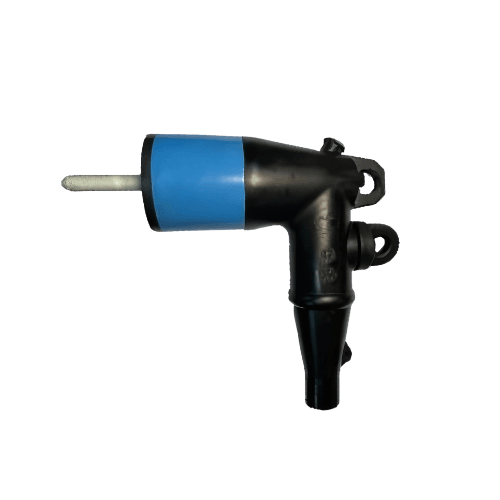

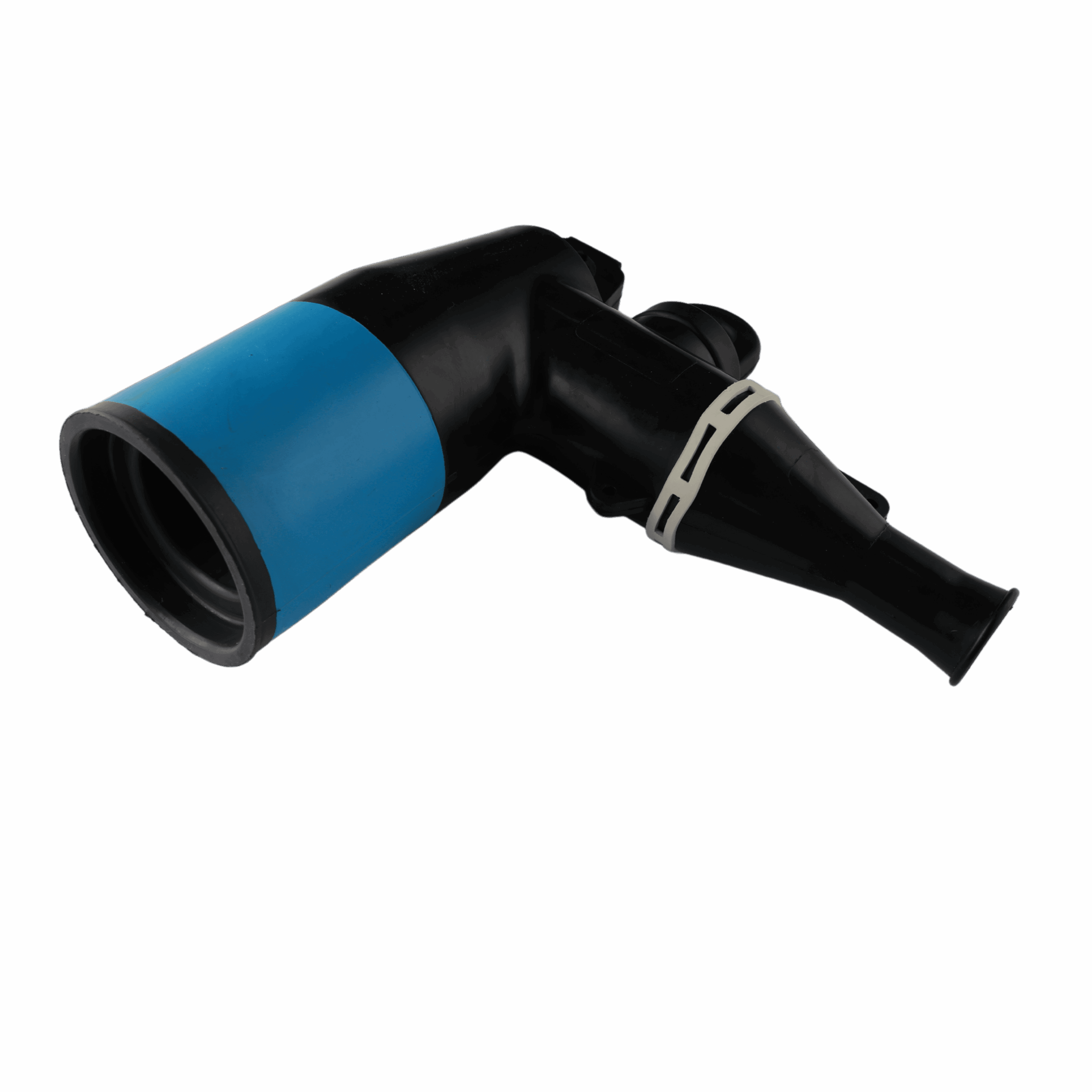

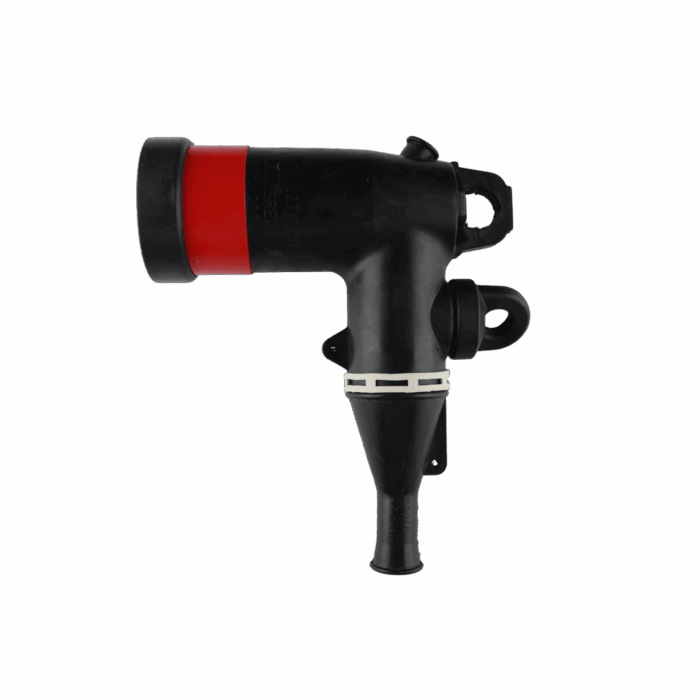

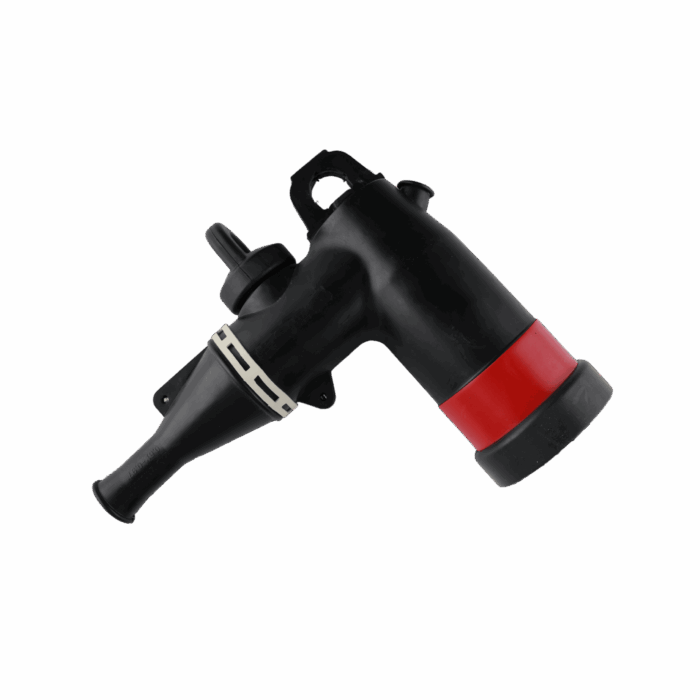

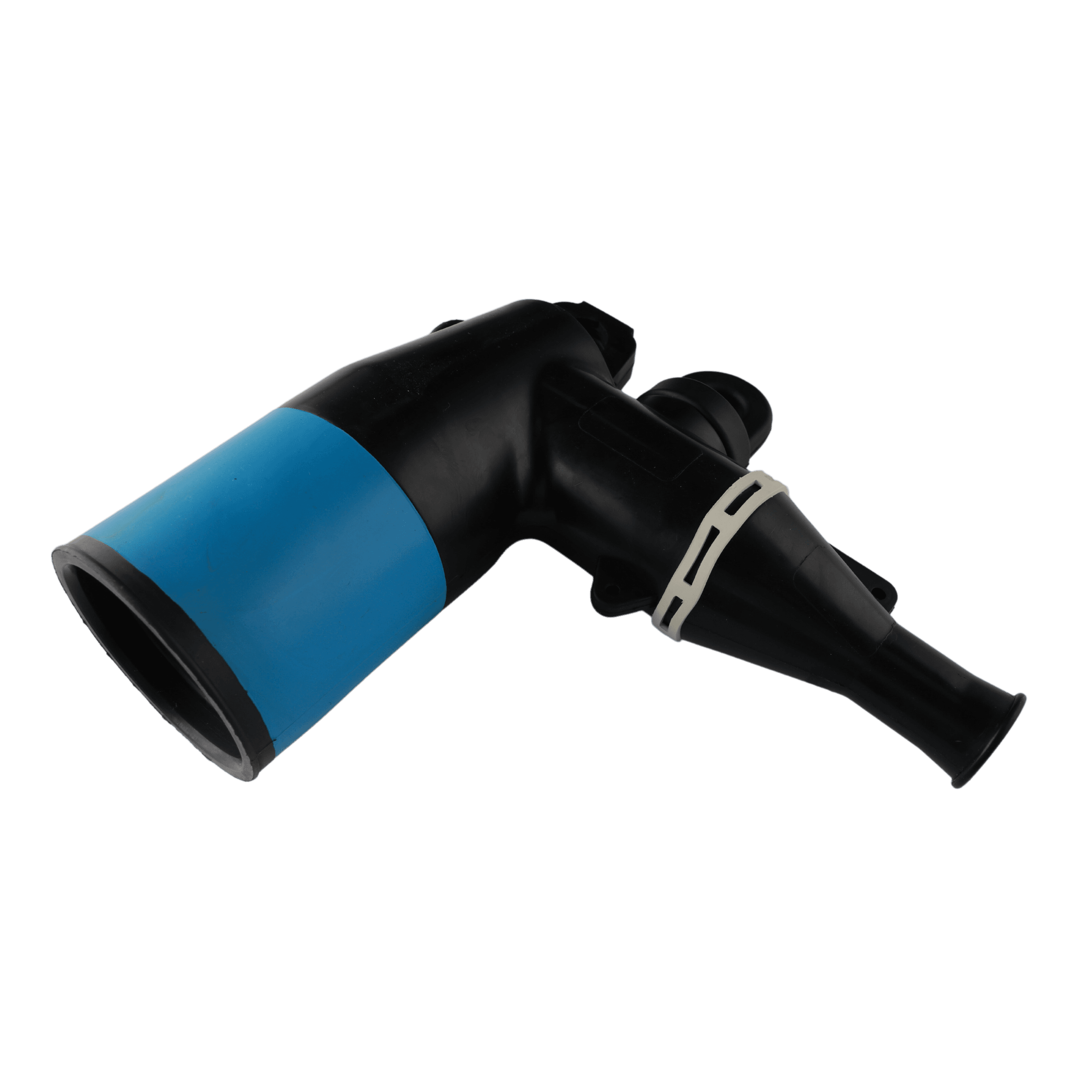

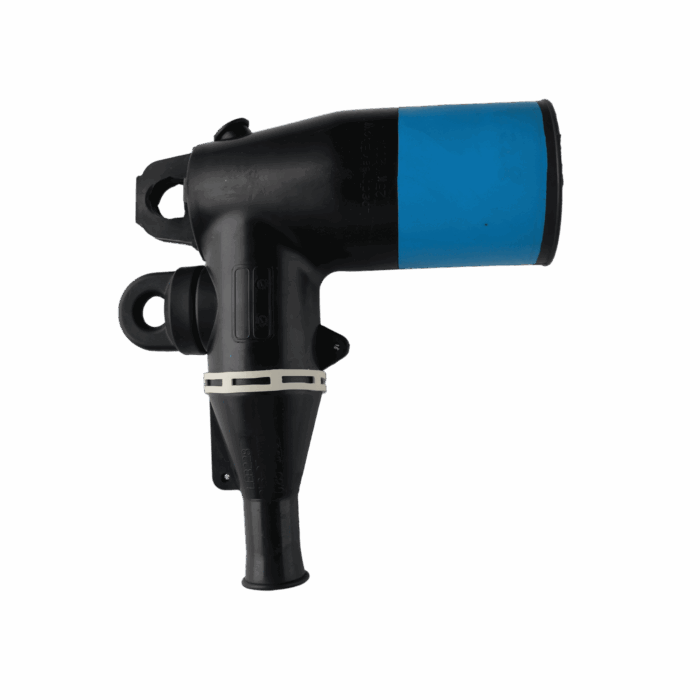

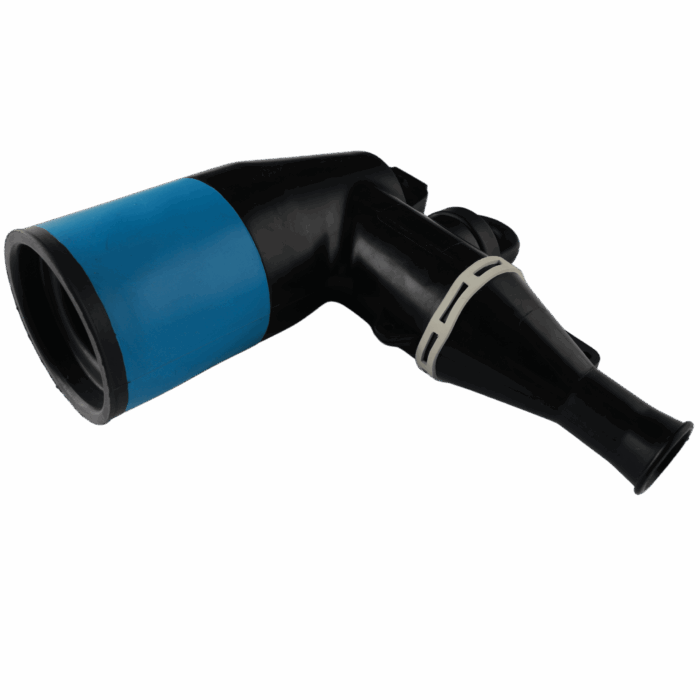

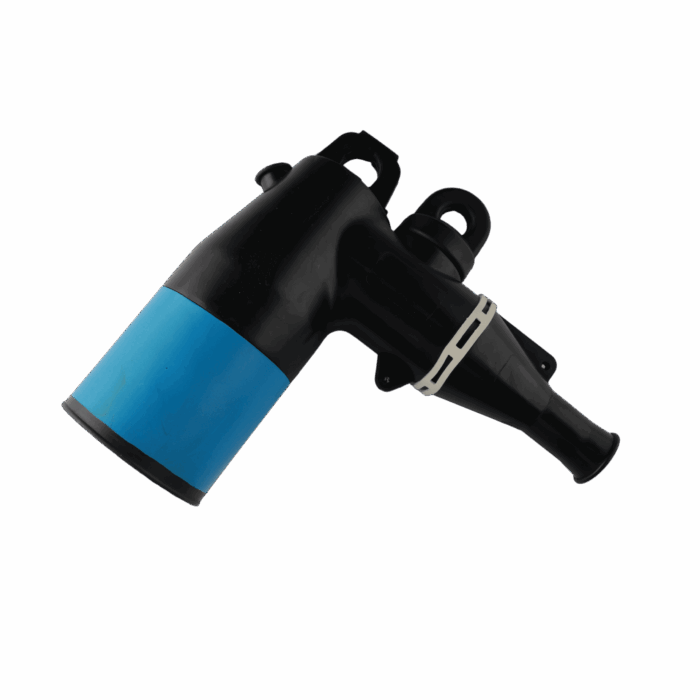

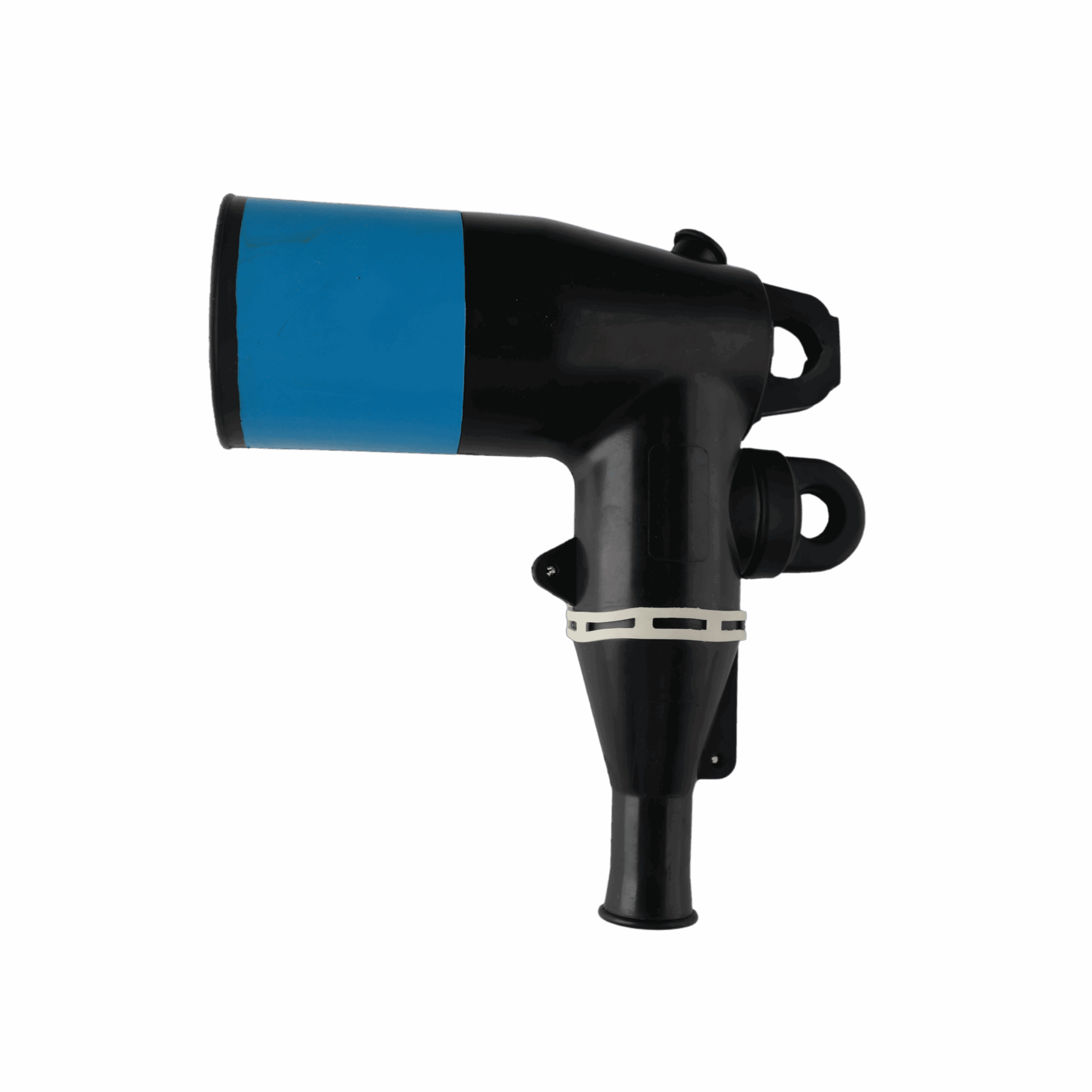

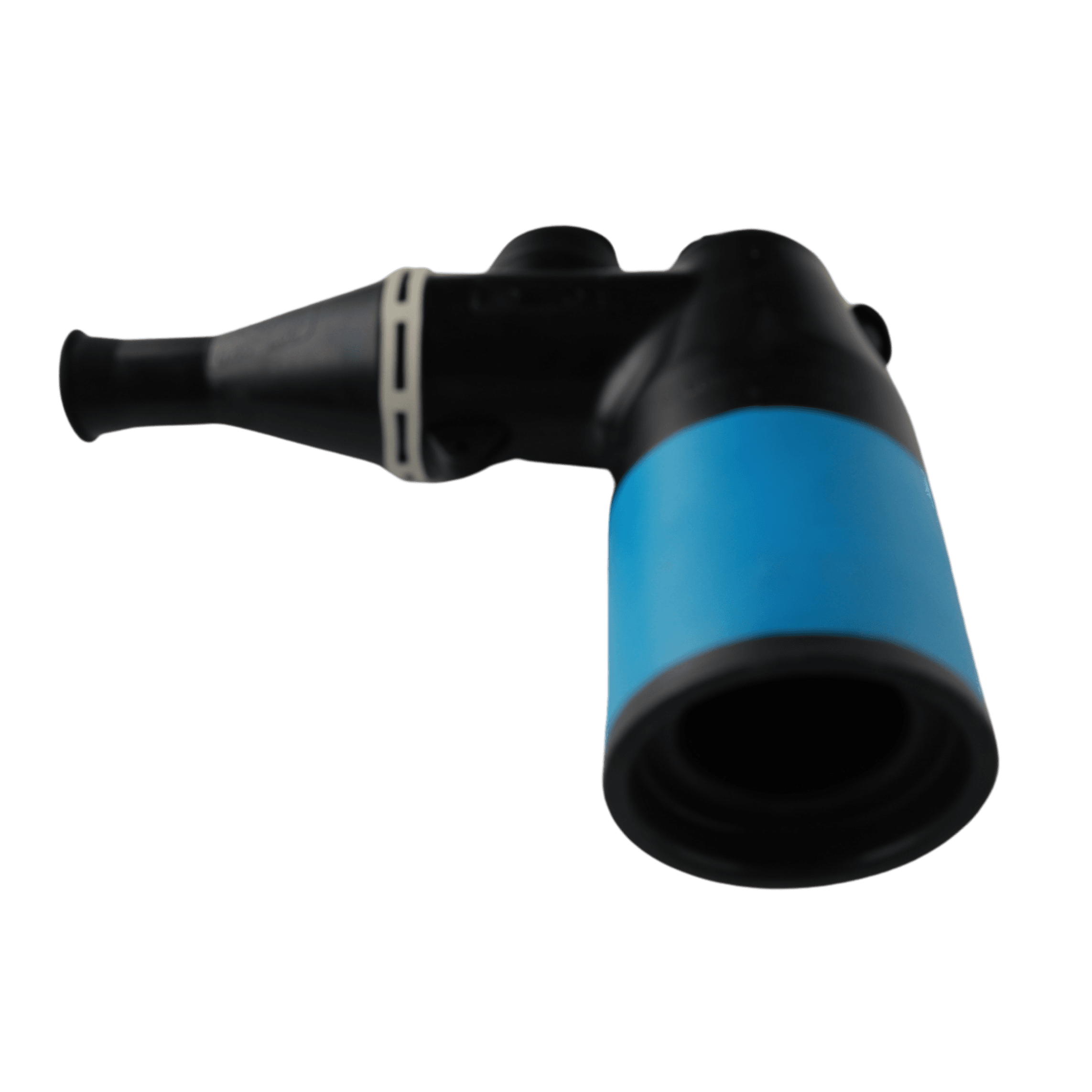

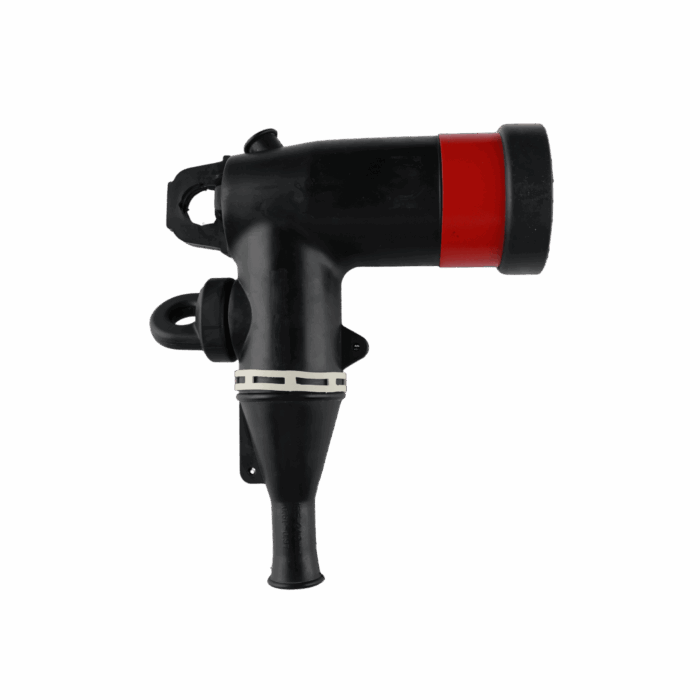

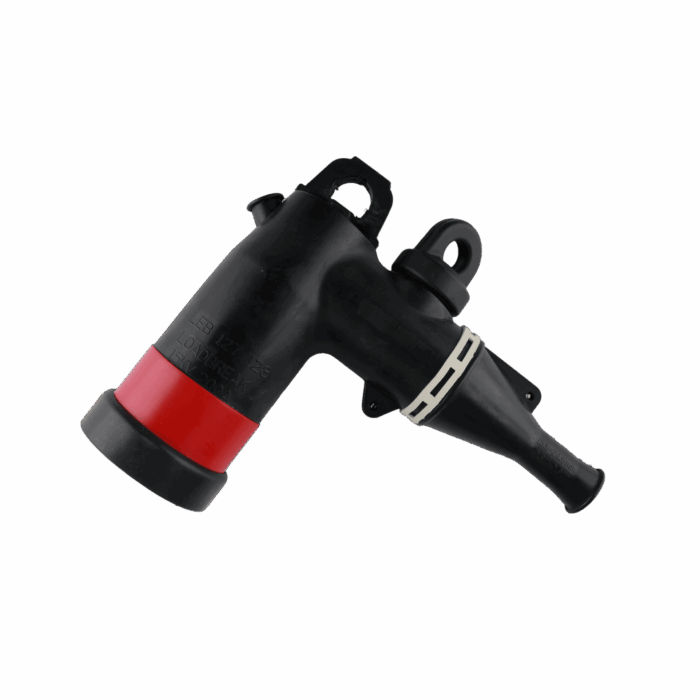

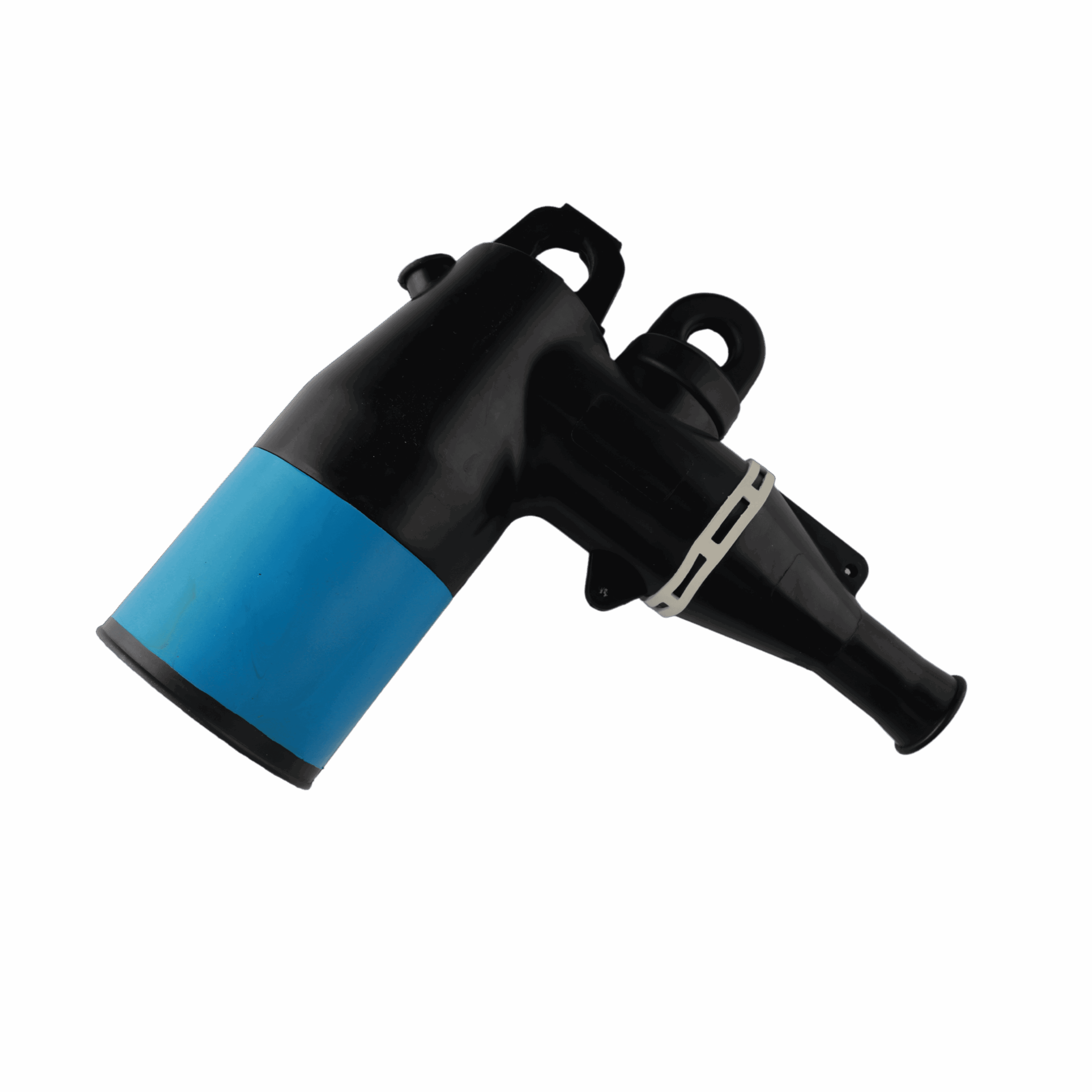

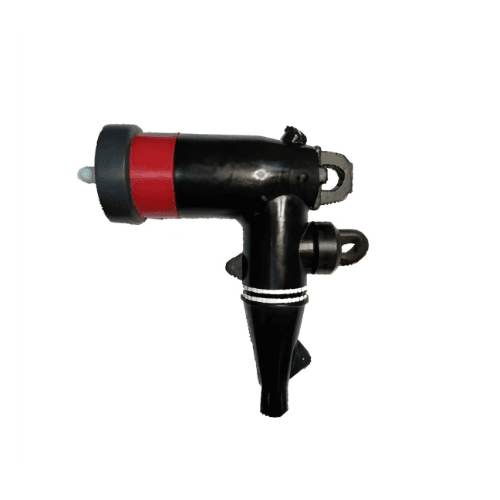

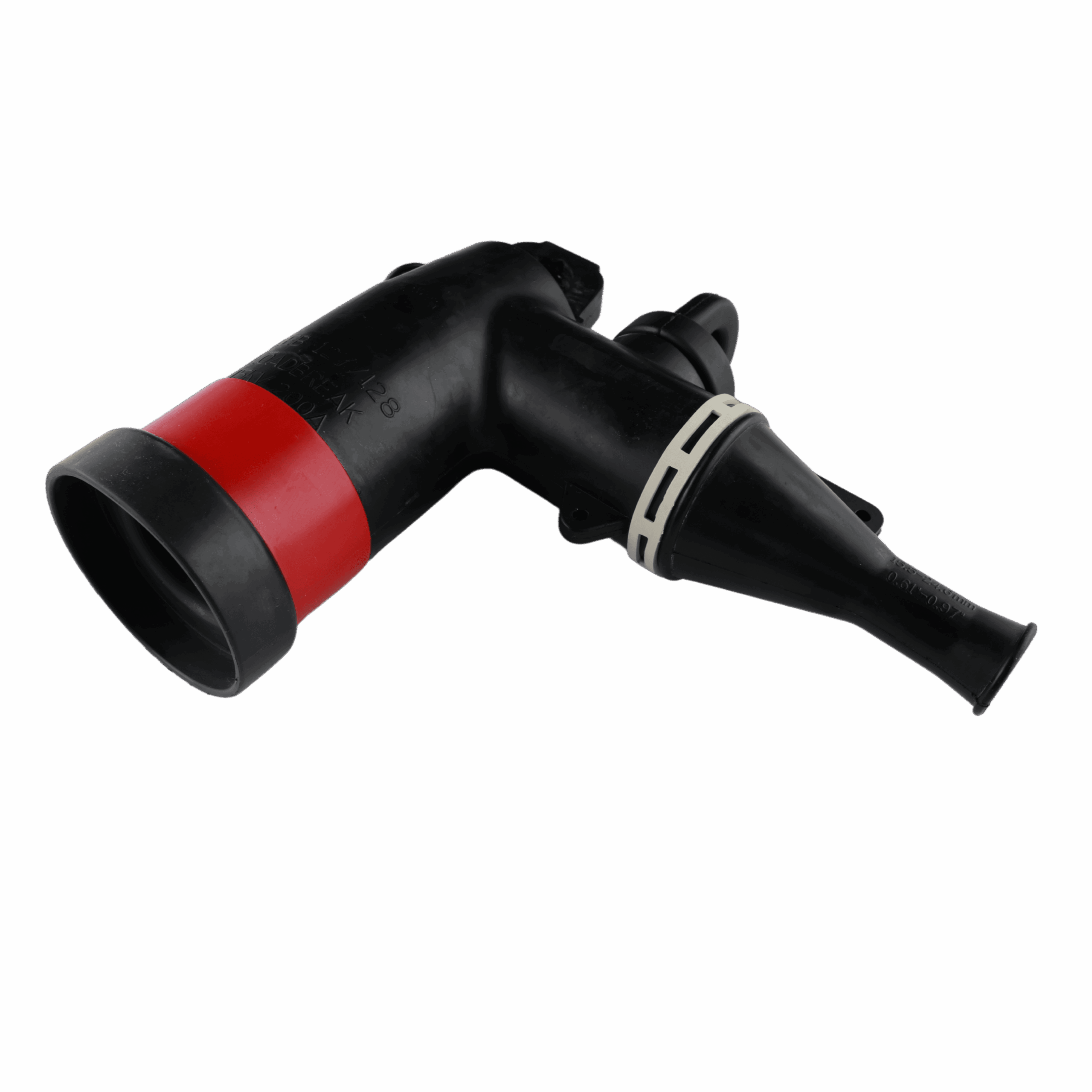

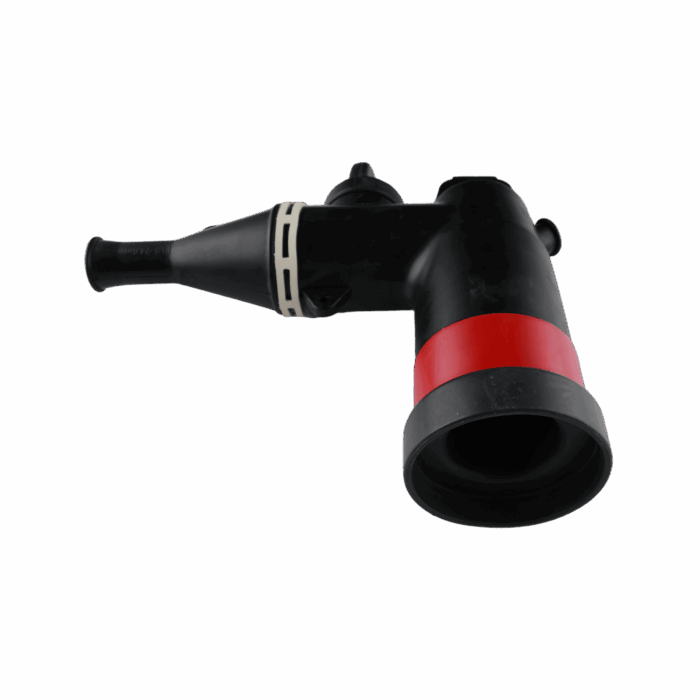

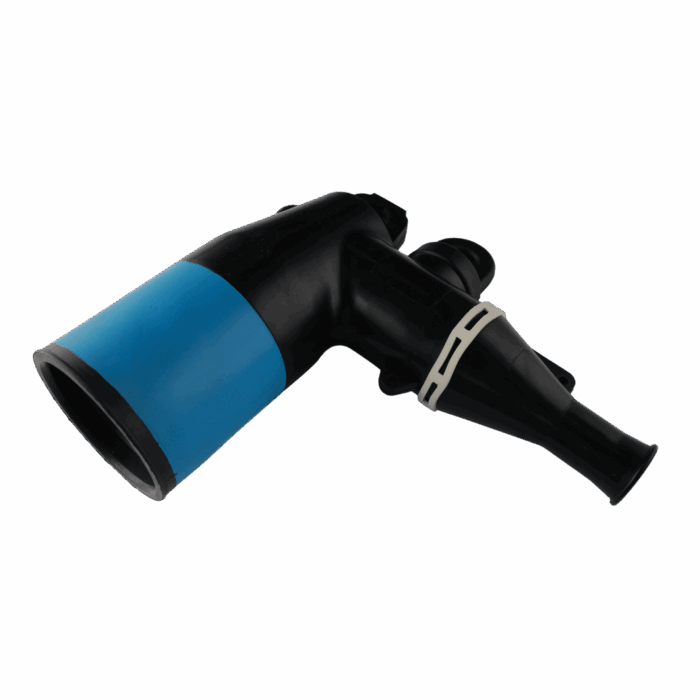

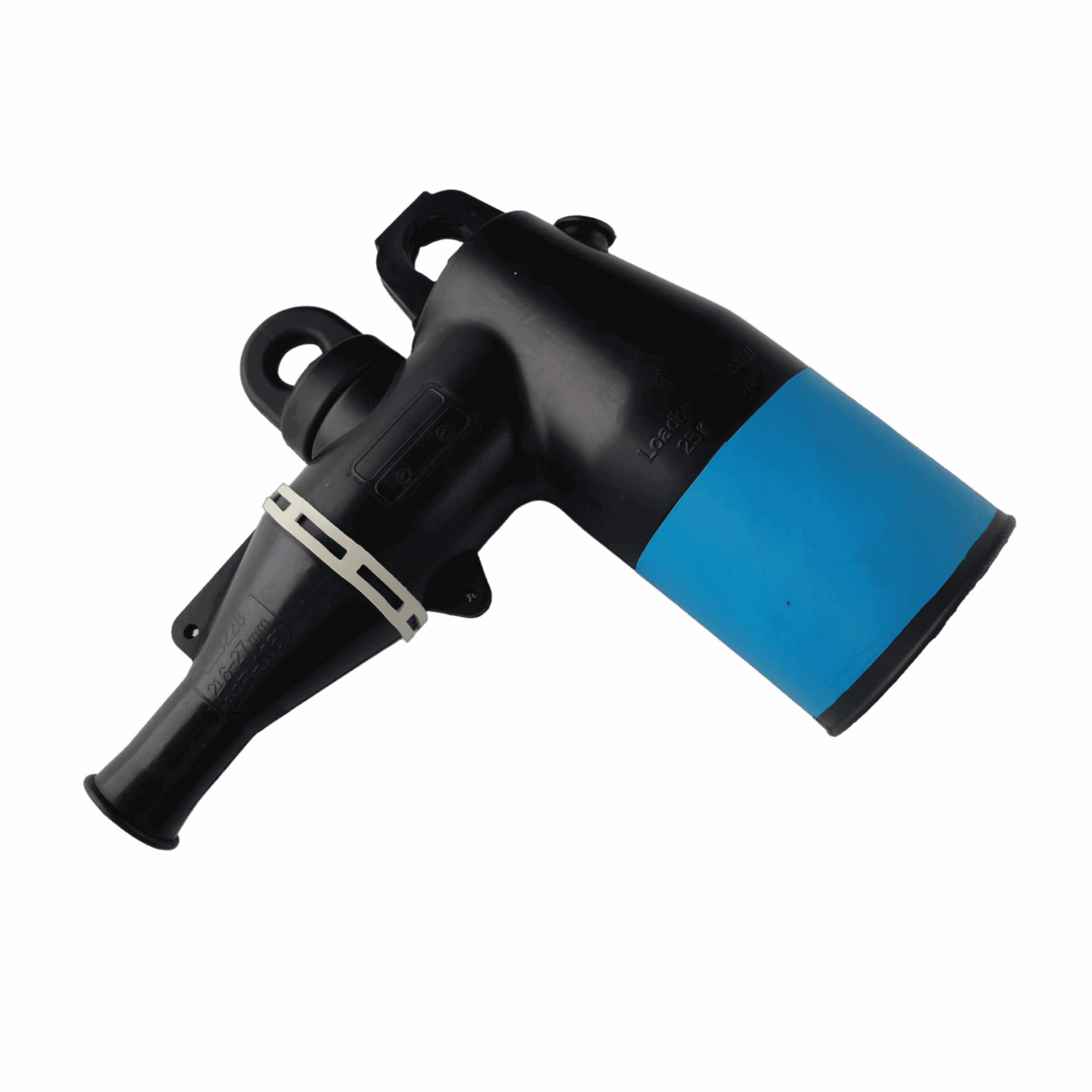

This Loadbreak Elbow Connector terminates connecting underground cable to transformers, switching cabinets and junctions equipped with loadbreak bushings.
Technical Specification
Product type number: LEB12N/22N (N will etermine by the cable size and replace it with 7~9)
| Rated voltage |
15kV ,25kV ,35kV |
|---|---|
| Rated Current |
200A |
| Product Type Number |
LEB127 ,LEB128 ,LEB228 ,LEB229 ,LEB327B ,LEB328 |
| Product Category |
Elbow Connector |
Technical Specification
Special Description:
- Fully shielded and submersible and meets the requirements of IEEE Std 386-2016” Separable Insulated Connector Systems”
- Made of high quality insulating semi-conductive EPDM rubber.
- Standard features include a compression connector (optional coppertop or bare copper), tin-plated copper loadbreak probe with an ablative arc-follower tip and pulling-eye.
- The capacitive test point on the insulating plug provides a means of testing the circuit without disturbing the bolted connection.
Table 1 - Electrical Data
| Voltage Ratings | 15kV Class | 25kV Class | 35kV Class |
| Operating Voltage | |||
| Maximum Phase-to-Phase | 14.4kV | 26.3kV | 36.6kV |
| Maximum Phase-to-Ground | 8.3kV | 15.2kV | 21.1kV |
| Withstand Voltage | |||
| AC: 60Hz, 60 Sec | 34kV | 40kV | 50kV |
| DC: 15 Minutes | 53kV | 78kV | 103kV |
| BIL and Full Wave Crest | 95kV | 125kV | 150kV |
| Corona Extinction Level | |||
| <3pC | 11kV | 19kV | 26kV |
| Rated Current | 200Amp | 200Amp | 200Amp |
| Short Time Current | 10kA sym. for 10 cycles (0.17s) 3.5kA sym for 10 cycles (3.0s) | ||
| Type Number (N:Size code 7~9) | LEB12N | LEB22N | LEB328 |
Table 2 – Standard accessory attachment pack Information
| Type Number | Accessory | Qty |
LEB12N LEB22N LEB328 | Loadbreak Probe | 1 |
| Hex Wrench | 1 | |
| Compression Terminal Lug | 1 | |
| Stainless Sheet | 1 | |
| Silicone Lubricant | 1 | |
| Installation Instruction Sheet | 1 |
Note:

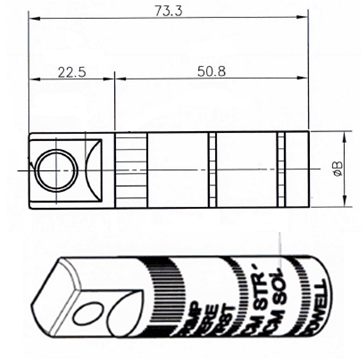

Image 1. Compression Connector

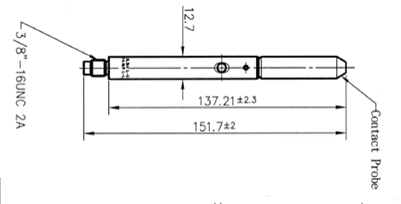

Image 2. Loadbreak Probe

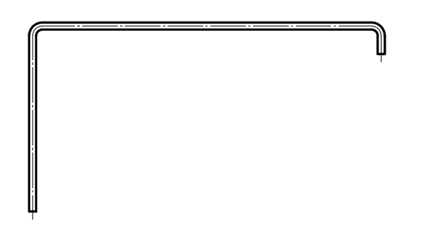

Image 3. Hex Wrench
