CLP Series
Product Description

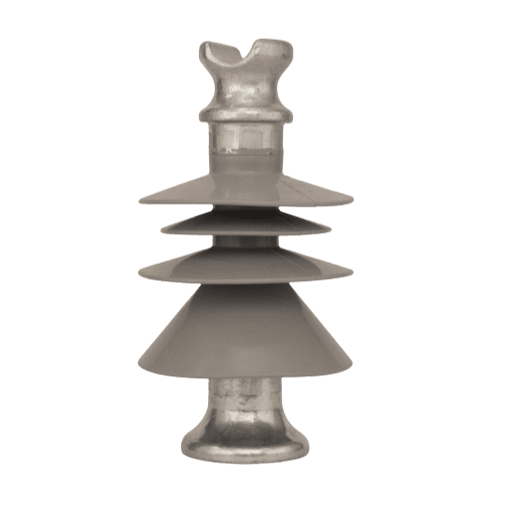

Composite line post insulators are primarily used in high-voltage transmission and distribution systems to support and secure conductors, ensuring stable and safe power transmission.
Their excellent insulation properties prevent current leakage or short circuits, enhancing grid reliability.
Technical Specification
Rated voltage |
15kV ,27kV |
---|---|
Product Type Number |
CLP15 ,CLP27 |
Product Category |
Line Post Insulator |
Categories: Pole-mount Devices, Line Post Insulator
Technical Specification
Special Description:
- Long term weathering tests on complete insulators meetings IEEE C62.11 standards.
- Weathersheds are made of highest quality Silicone Rubber and are directly molded onto the fiberglass rod and metal fittings, totally weathering sealing and ensure lifetime operations.
Table - Electrical Data
Voltage Rating | 15kV Class | 25kV Class |
Color | Dark Gray | Dark Gray |
Rated voltage | 15kV | 25kV |
Max. Voltage | 15kV | 27kV |
Leakage Distance | 530 ± 5mm | 708 ± 5mm |
Dry-Arc Distance | 220 ± 3mm | 265 ± 5mm |
Min. Pin Height | 268mm | 344mm |
Cantilever Strength Pounds (KN) | 2800lbs | 1250lbs |
Low Frequency Dry Flashover | 70kV | 100kV |
Low Frequency Wet Flashover | 50kV | 70kV |
Critical Impulse Flashover, Positve | 120kV | 160kV |
Max. RIV at 1000 kHz (Test Voltage) | 1000kV/μs | 1000 kV/μs |
Type Number | CLP15 | CLP27 |
