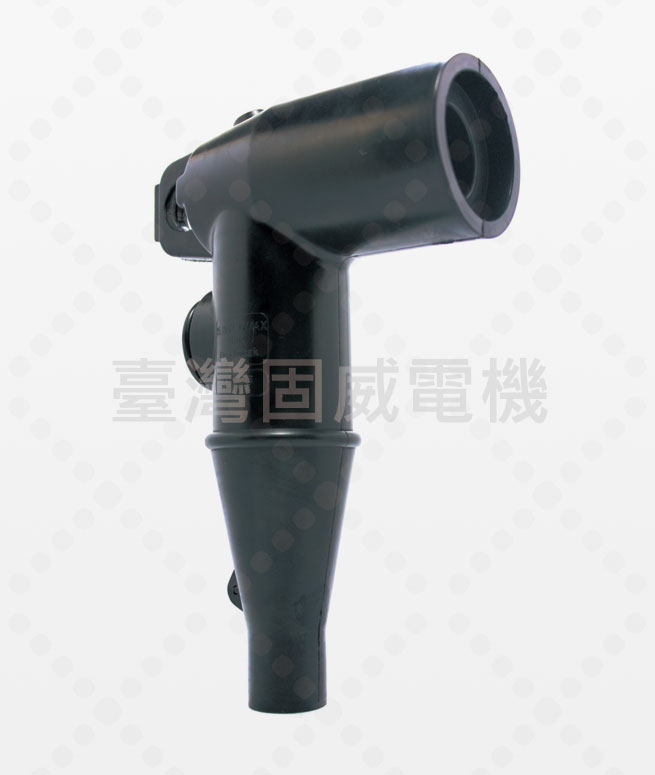

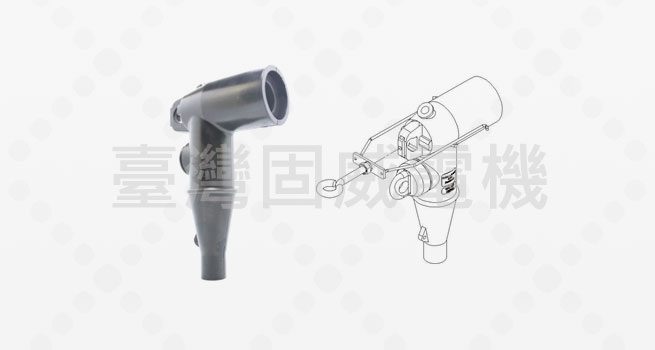

15/25kV 200A Deadbreak Elbow Connector

15/25kV 200A
Deadbreak Elbow Connector


  • Standard:ANSI / IEEE Std. 386
  • Features:100% PD tested / SUS304 bail hook

This Deadbreak Elbow Connectors provide a convenient method to terminate and connect high voltage cable and equipment on power distribution system. When mated with a bushing product, the deadbreak elbow connector provides a fully-shielded, fully-submersible and separable connection for underground distribution systems, but it is not a loadbreak operation. All Goodwell Deadbreak Elbows Connectors have been tested in accordance with the requirements of ANSI/IEEE Standard 386-2006, Separable Insulated Connector Systems for Power Distribution Systems above 600 Volts.

Technical Data

Voltage and Current Ratings 15kV Class 25kV Class
Operating Voltage
Maximum Phase-to-Phase 14.4kV 26.3kV
Maximum Phase-to-Ground 8.3kV 15.2kV
Withstand Voltage
AC: 50Hz or 60Hz , 60 sec 34kV 40kV
DC: 15 minutes 53kV 78kV
Impulse Voltage Withstand
1.2 x 50μs 95kV 125kV
Corona Extinction Level
< 3 pC 11kV 19kV
Continuous Current 200Amp 200Amp
Symmetrical Momentary Current 10kA sym. for 10 cycles (0.17s)
Type Number (N: size code 1~4) DEB12N DEB22N
