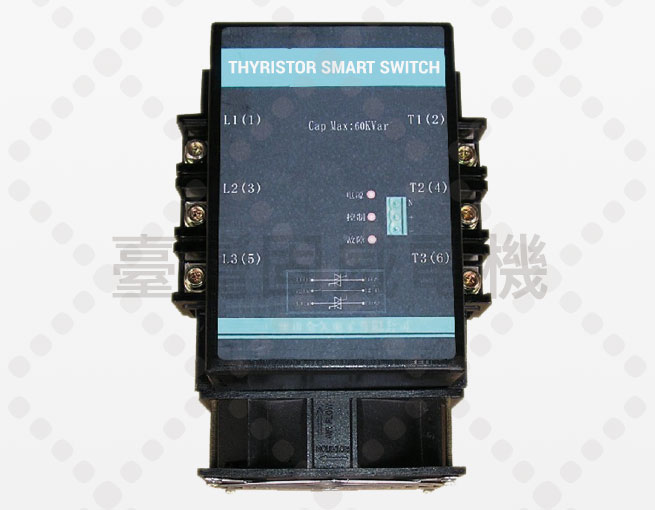

Thyristor Smart Switch [TSS]

Thyristor Smart Switch

  • Standard:GB/T 29312

General

TSS is a thyristor - controlled power electronic device, specially designed for switching power capacitors in PFC (Power Factor Correction) system, where quick response in dynamic switching of power capacitors are extremely required for PFC and harmonics suppression. TSS has several international patents including latest technologies invented by Goodwell, includes Thyristor Control Circuit, Voltage-Sensing system and Forced Triggering system. There new technologies provide low power consumption (in control circuit), quick response (in ON-OFF instruction) and better conductivity of the switch contacts, eventually to ensure power capacitors will last for its designed service life even in severe industrial environments.

Features

  • High speed SOC processor for phase sequence control, phase loss protection, accurate zero-degree making angle and high speed ON-OFF operation. To achieve real zero-inrush current and zero-arc voltage operations.
  • Patented high-speed triggering technology provides - when power capacitor does not discharge any current, synchronous-close operation of three-phase capacitors within 20ms while 3 phase current-angle difference less than 120°.
  • Built-in temporary over-voltage protection circuit and optical isolation circuit to withstand noise interference, increase EMC protective level.
  • No mechanical contact has been used in control circuit, provides extreme high operating speed and infinite electrical operating times.
  • Aluminum alloy case construction, extra big radiator, smart temperature sensing and control system to ensure excellent heat radiation in a rapidly of running time of the cooling fan, increase fan service life and reduce the energy loss.
  • All industrial grade electronic components, high quality power transistor, encapsulated or insulated circuit board to ensure 100,000 hours life time of the electronic control system.

Service Instruction

  • Working environment temperature: -25°C ~ +45°C
  • Working environment relative humidity: 0 ~ 95%
  • Storage & transportation temperature: -30°C ~ +85°C
  • Prohibit to install in hash gas environment where electrical insulation is subject to damage or explosive risk.
  • Electrical cabinet to accommodate TSS shall be well ventilated.

Recommendation

  • Suggest to use high quality power capacitors with series reactor for PFC system, because in case any single puncture event occurred on capacitors, an over voltage will strike electronic components of TSS. Select higher ratings capacitor to have higher margin for heavy harmonic and frequent over-current background environment.
  • When select single-phase, individual-compensation switch, capacitor's neutral wire shall be firmly connected, otherwise over-voltage will present over the selected switch.
  • The protective fuse to be install at source side of the TSS, fuse type NGT or RS series, rated at 160~200% of capacitor working current are suggested.
  • Design of load-side conductor for TSS shall be calculated at 2Amp/per square mm or less; the terminal hole for 160A TSS or below shall be 6mm > Φ > 8mm, SC50-8 terminal hole shall be accepted.

Technical Data - TSS100W / TSS160W

Cat. No. TSS100W
40/450-
D/S
TSS100W
60/450-
D/S
TSS100W
90/450-
D/S
TSS100W
110/450-
D/S
TSS160W
90/450-
D/S
TSS160W
120/450-
D/S
TSS160W
160/450-
D/S
Items
Rated Voltage 450V 450V 450V 450V 450V 450V 450V
Rated Max Current 40A 60A 90A 110A 90A 120A 160A
Rated Load Power (Kvar) ≤ 30 ≤ 40 ≤ 60 ≤ 80 ≤ 60 ≤ 80 ≤ 105
Dimensions L*W*H(mm) 180*120
*152
180*120
*152
180*120
*152
210*120
*152
200*140
*152
200*140
*152
200*140
*152
Response Time ≤ 29ms
Drive Voltage 8-15VDC
Drive Current 5-20mA

Technical Data - TSS160N / TSS160F

Cat. No. TSS160N
90/450-
D/L
TSS160N
160/450-
D/L
TSS160F
90/280-
Y/N
TSS160F
120/280-
Y/N
Items
Rated Voltage 450V 450V 280V 280V
Rated Max Current 90A 160A 90A 120A
Rated Load Power (Kvar) ≤ 100 ≤ 160 ≤ 20*3 ≤ 25*3
Dimensions L*W*H(mm) 200*120
*152
260*140
*152
200*140
*152
200*140
*152
Response Time ≤ 20ms
Drive Voltage 8-15VDC
Drive Current 5-20mA

Mounting Information

Frame Type Outline Dimensions (mm) Mounting Dimensions (mm)
L1 L2 W1 W2 H1 H2 S hole dia. R
TSS100 150-160 150-210 85 120 120 152 140 7.5 88
TSS160 150-220 200-260 140 158 120 152 110 6.5 148
