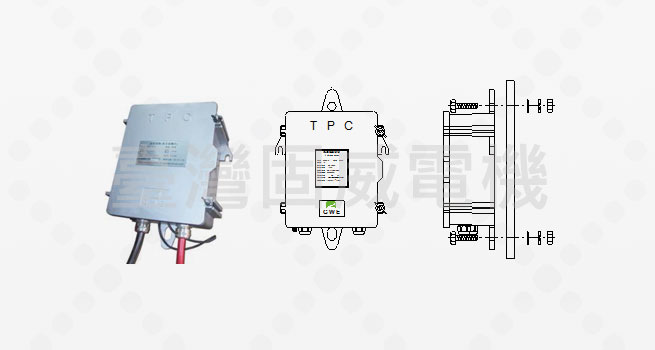

Goodwell Type VSL-616 Street Light consists of vacuum contactor, no-fuse breaker and with an aluminum alloy die casting switch box.
Technical Data
| Rating (Main Terminal) | 240VAC , 135A |
|---|---|
| Operating Voltage | 240VAC + 10% ~ -20% |
| Protective Switch | MCCB 1P , 150A , 10KA |
| Control Device | Light Sensor or Time Control Switch |
Switch Ratings
| Frequency | 60Hz |
|---|---|
| Operating Voltage | 240VAC+10% ~ -20% |
| Continues Current | 135A |
| Alternate Withstand voltage | 1.5 kV |
| Insulation Resistance | > 50MΩ |
| Maximum Temperature Rise | < 65°C (Terminal) |
| < 25°C (Circle) | |
| Power Factor | > 0.75 |
| Instant Closing Current | 1920A |
| Instant Interrupting Current | 1600A |
Molded Case Circuit Breaker
| Rating Voltage | 600V |
|---|---|
| Rating Current | 150A , 1P |
| Interrupting Capacity | 10kA rms sym |
Switch Box ASTM-B85
| Aluminum Alloy Die Casting | SC102A |
|---|---|
| Surface Process | Coating of Silver Powder |
| Type Number | USL160 |
