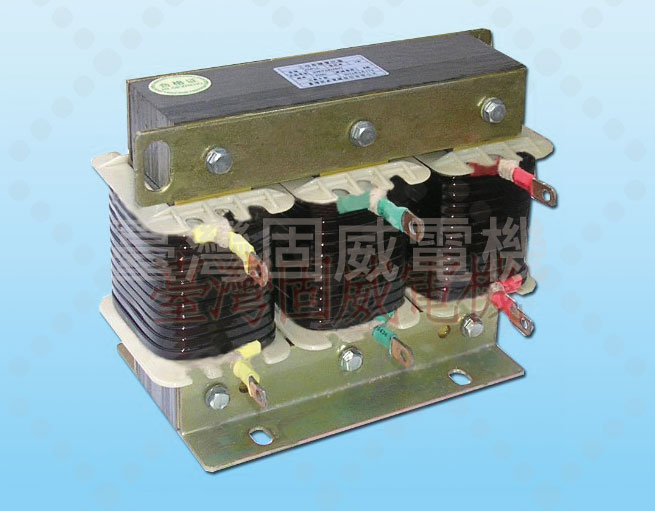

Application
To be connected in series, with power capacitor to eliminate all level of power line harmonics.
Features
- Vaccum - immersed coating with insulating paint, excellent dielectric strength.
- Higher linear characteristics, high overloading capacity.
- 120°C over-temp protection.
- Low power loss.
Technical Data
| Standards | VDE0550/0532 , IEC76 |
|---|---|
| Rated Voltage | 50/60Hz , 100V-660V |
| Rated Power | 0.1Kvar-100Kvar |
| Reacting Ratio | 5% , 7% , 13.5% |
| Cooling Method | Nature cooling |
Application Data
3 Phase 480V Ractor vs. Capacitor (XL/XC=7%)
| Type Number Reactor | Power Capacity | Capacitor's Power Cap. | Reference Dimensions L*W*H (mm) |
|---|---|---|---|
| GPR348077 | 0.7Kvar | 10Kvar | 203*140*149 |
| GPR348107 | 1.05Kvar | 15Kvar | 231*150*168 |
| GPR348147 | 1.4Kvar | 20Kvar | 231*153*168 |
| GPR348177 | 1.75Kvar | 25Kvar | 232*170*208 |
| GPR348217 | 2.1Kvar | 30Kvar | 232*173*208 |
| GPR348287 | 2.8Kvar | 40Kvar | 270*190*214 |
| GPR348357 | 3.5Kvar | 50Kvar | 290*185*235 |
| GPR348427 | 4.2Kvar | 60Kvar | 290*190*234 |
| GPR348497 | 4.9Kvar | 70Kvar | 295*188*260 |
| GPR348567 | 5.6Kvar | 80Kvar | 290*195*264 |
